SCREW GEARS (Crossed Helical Gears)

Product catalog summary

Helical Rack and Gear Specifications:
The document outlines the formulas for a standard helical rack, emphasizing that the normal coefficient of profile shift is zero. For meshing, helical gears and racks must have the same helix angle but opposite hands. The displacement of the helical rack for one rotation of the mating gear is calculated using the radial pitch and the number of teeth. Adjustments to radial pitch and displacement can be made by selecting an appropriate helix angle.

Screw Gear or Crossed Helical Gear Meshes:
These gears, also known as spiral gears, are used for interconnecting skew shafts. The helix angles of the gears need not be identical, but their sum must equal the shaft angle. The document provides equations for calculating center distance and velocity ratio, emphasizing that the velocity ratio is determined by the number of teeth rather than pitch diameters.

Screw Gear Calculations:
For screw gears to mesh, normal modules and pressure angles must be identical. The document provides conditions for meshing based on the hands of the gears and discusses the complexity introduced by profile shifting.

Axial Thrust of Helical Gears:
Helical gears develop an axial thrust load, which must be considered in design. The magnitude of this load depends on the helix angle. The document suggests using double helical or herringbone gears for helix angles larger than 20° to manage thrust loads effectively.

Key Equations and Tables:
The document includes several equations and a table (Table 7-1) for calculating parameters related to screw gear pairs on nonparallel and nonintersecting axes. These equations cover aspects such as center distance, velocity ratio, and axial thrust load.

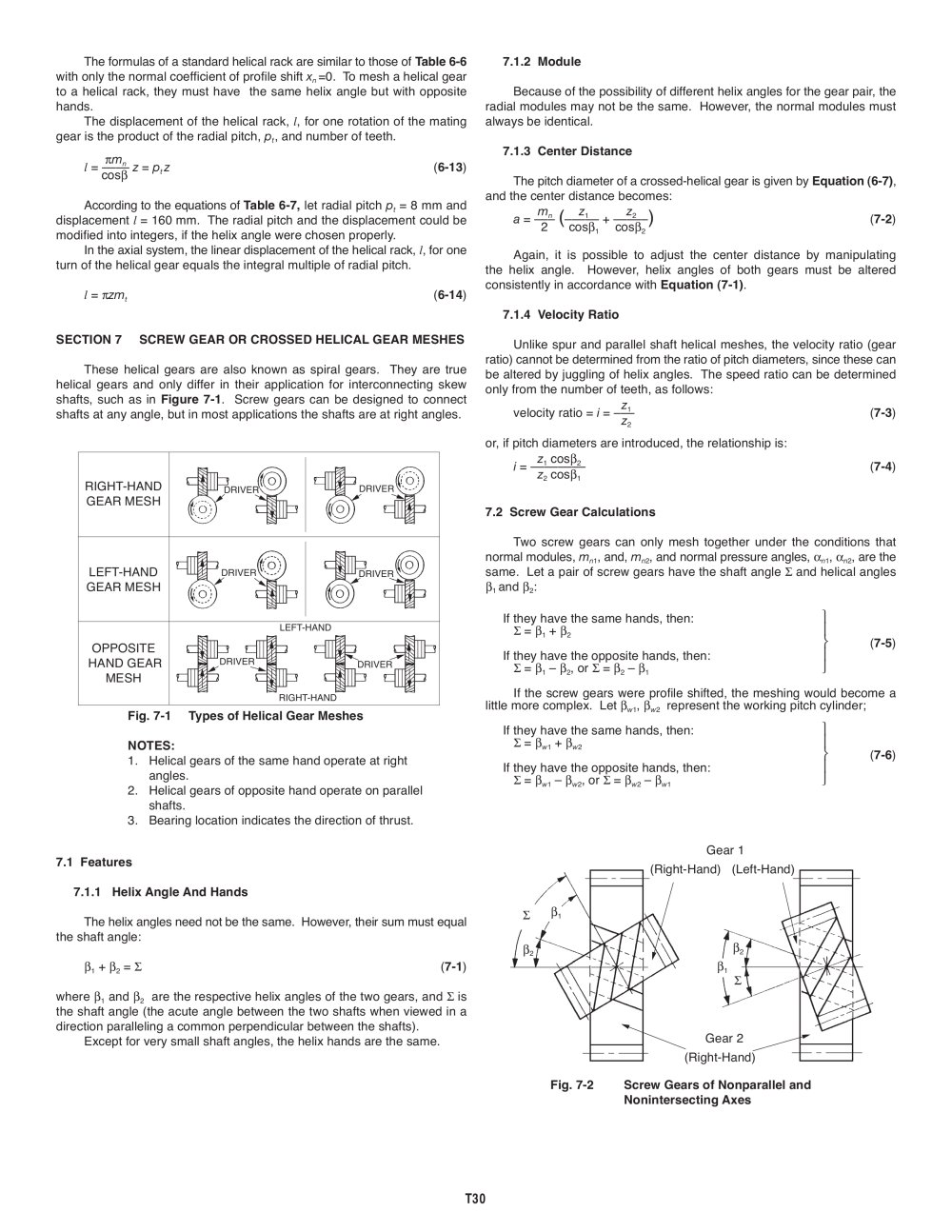

Catalog excerpts

Table 7-1 presents equations for a profile shifted screw gear pair. When the normal coefficients of profile shift is given by the expression: x > n 1 = x > n 2 =0, the equations and calculations are the same as for standard gears. Standard screw gears have relations as follows: W W > t T = W tan B ( 7-8 )where d > w 1 = d > 1 , d > w 2 = d > 2 ( 7-7 ) > T = axial thrust load, and > t w 1 = B > 1 , B > w 2 = B > 2 W = transmitted load. The direction of the thrust load is related to the hand of the gear and the direction of rotation. This is depicted in Figure 7-3a Figure 7-3b 7.3 Axial Thrust...

Open the catalog to page 2
