Rack and Spur Gear Calculations

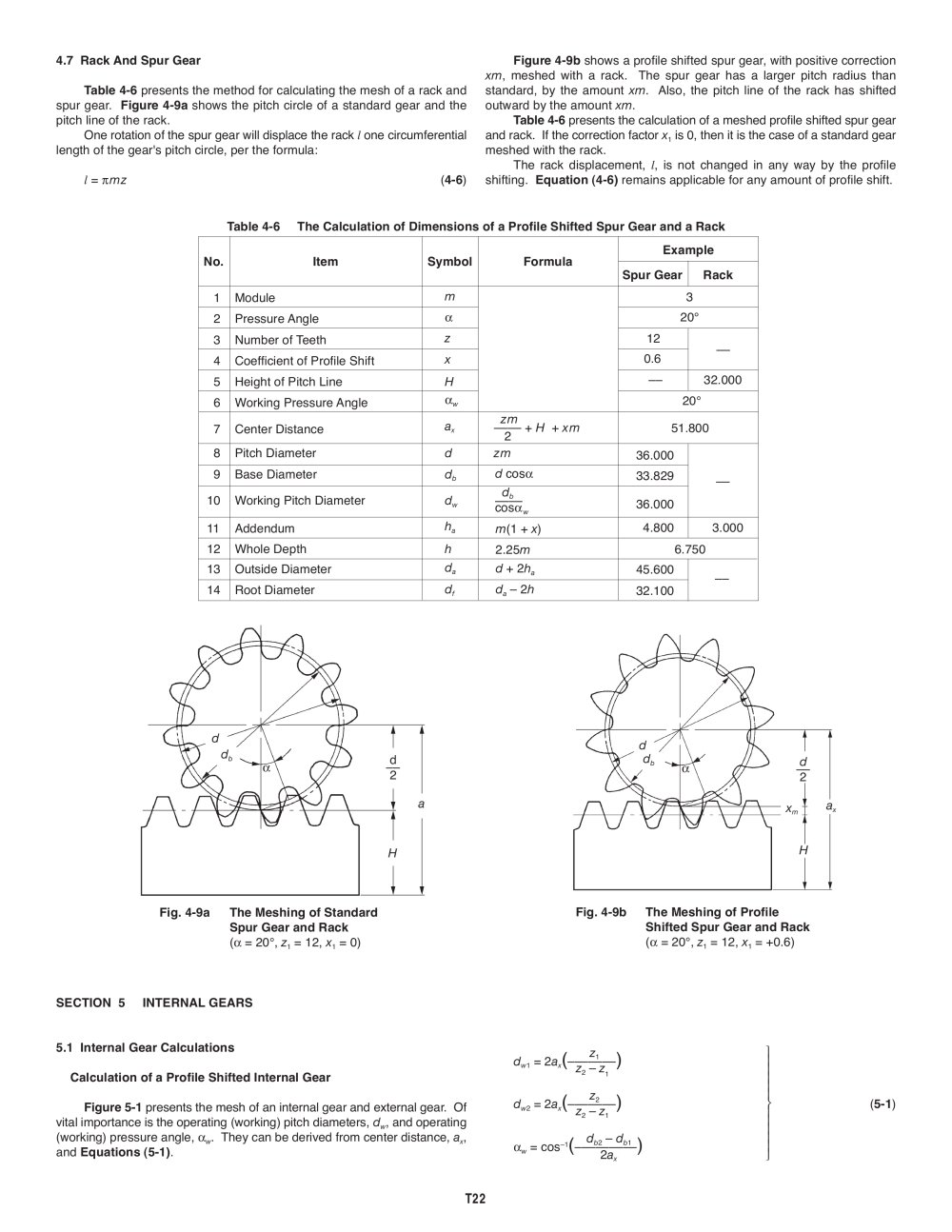

Table 4 presents the method for calculating the mesh of a rack and spur gear. The displacement of the rack is determined by the formula l = πmz, where m is the module and z is the number of teeth. Profile shifting does not affect the rack displacement.

Internal Gear Calculations
Internal gear calculations focus on the operating pitch diameters and pressure angles, derived from the center distance. Interference types include involute, trochoid, and trimming interference, each with specific conditions to avoid them.

Helical Gears
Helical gears have twisted teeth along a helical path, improving tooth strength and contact ratio. They are used in parallel shaft applications and crossed-helicals for skew shafts. The helical tooth form is involute in the plane of rotation, with a helix angle defined by the tangent to the helicoidal tooth.

Key Parameters and Formulas

• Module (m)
• Pressure Angle (α)
• Number of Teeth (z)
• Coefficient of Profile Shift (x)
• Pitch Diameter (d)
• Base Diameter (db)
• Working Pitch Diameter (dw)
• Addendum (ha)
• Whole Depth (h)
• Outside Diameter (da)
• Root Diameter (df)

Interference Prevention
To prevent interference in internal gears, specific conditions must be met, such as ensuring the number of teeth difference is sufficient and using profile shifts when necessary.

Helical Gear Fundamentals
Helical gears have two related pitches: normal circular pitch (pn) and transverse radial pitch (pt), with the normal pitch being less due to the helix angle. The axial pitch is the distance between corresponding points of adjacent teeth measured parallel to the gear's axis.
