PREMIER labeling system

PREMIER labeling system
1 / 2 PagesView full catalog

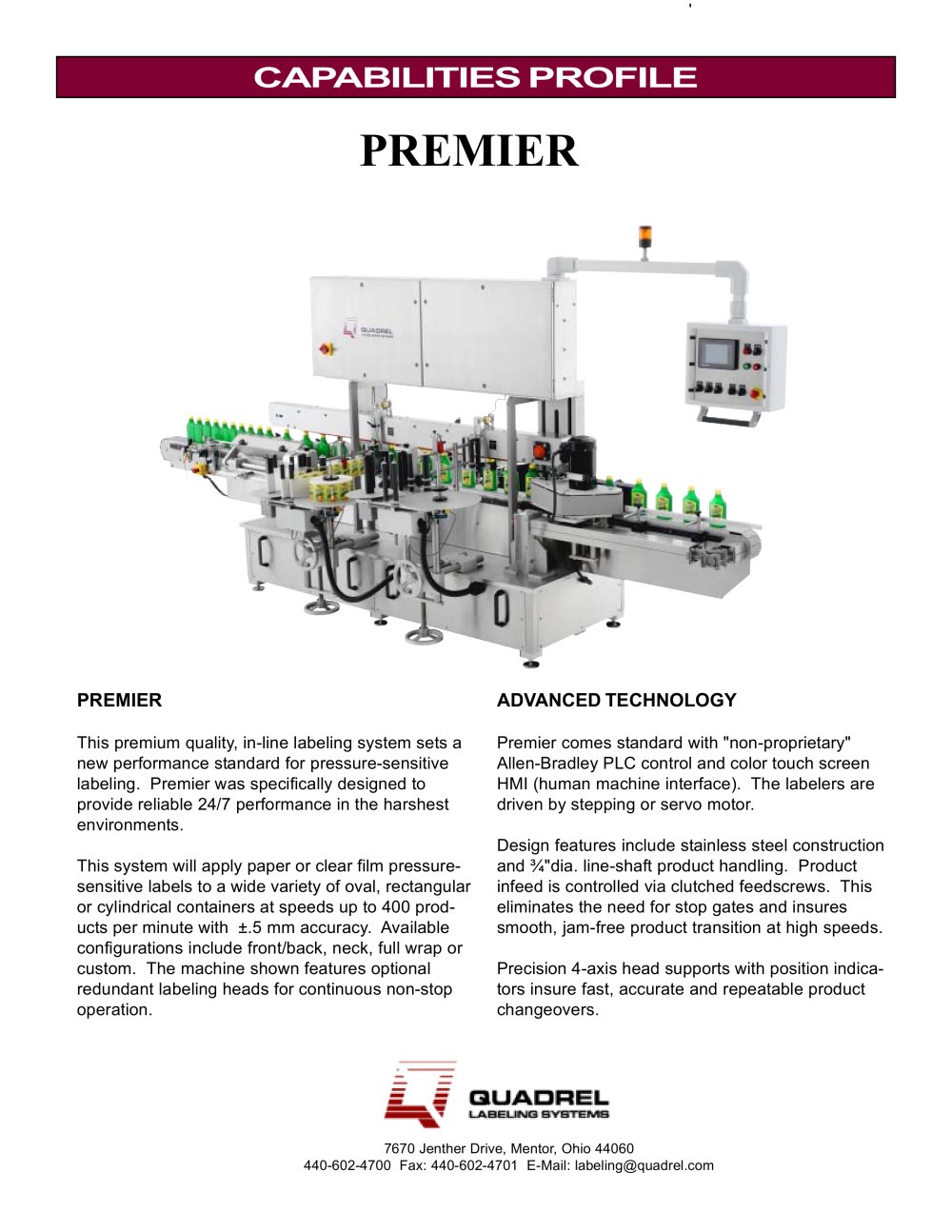

PREMIER labeling system

Product catalog summary
Overview: The Premier is a high-performance, in-line labeling system designed for continuous operation in demanding environments. It applies pressure-sensitive labels to various container shapes at speeds up to 400 products per minute with an accuracy of ±0.5 mm.
Specifications: The system supports configurations such as front/back, neck, full wrap, or custom. It features Allen-Bradley PLC control, a color touchscreen HMI, and is driven by stepping or servo motors. The construction includes stainless steel and anodized aluminum components.
Labeling Head: The Q60 labeling head offers web widths of 4-1/2", 7", or 10" with a standard unwind of 16" O.D. and a 3" I.D. core. It provides a dispensing speed of up to 2200" per minute.
Product Handling: The system includes a 4-1/2" width by 203.8" length conveyor, with options for feedscrew drive or chain aligners. Wrap stations are available in various lengths, and the system uses a variable speed digital AC inverter drive.
Features: The Premier system includes encoder-based speed compensation, quick disconnect cabling, and precision 4-axis head mounts for fast changeovers. Optional features include low label detection, end-of-web detection, and vision systems.
System Dimensions: The standard system length is 203.8", with a width of 72" and a height of 75". It operates on 220/208VAC/Single Phase 60Hz power and has an approximate shipping weight of 6000 lbs.
See more

Catalog excerpts

PREMIER labeling system-2

Premier is a heavy-duty, premium quality, in-line labeling systemavailable in configurations of front/back, spot, neck wrap, full wrap or any combination Օ Web Width: 4-1/2"(114mm), 7"(177mm) or10"(254mm) System is controlled by Allen Bradley PLC and color touchscreenHMI (human machine interface) Օ Unwind: 16"(406mm) O.D. standard, 3"(76mm) I.D.core Up to 4 servo or stepper-driven applicators provide high-speedlabeling without wear components Օ Labeling Head Accuracy: .5mm @ Sigma 2 ѕ Encoder-based speed compensation automatically synchronizesthe labeler to the system's product handling Electronics:...
