Ball Valve
1 / 1 PageView full catalog
Ball Valve
Product catalog summary
Specifications:
- Manifold Material: Aluminum (anodized)
- Union Material: Brass
- Plugs Material: Plated Steel
- Nipples Material: Brass
- Maximum Pressure: 500 psi (33 bar)
- Maximum Operating Temperature: 160°F
Product Description:
The QPM Manifolds are designed to enable the use of 6 SwivelMax nozzles in face milling operations. They are ideal for adding multiple nozzles on horizontal and vertical machining centers. The compact design is suitable for a wide variety of machining applications and can be used with water-based coolants, oil, air, or vacuum applications. The manifold assembly includes a manifold, pipe union, 2 DualFit nipples, and 7 pipe plugs.

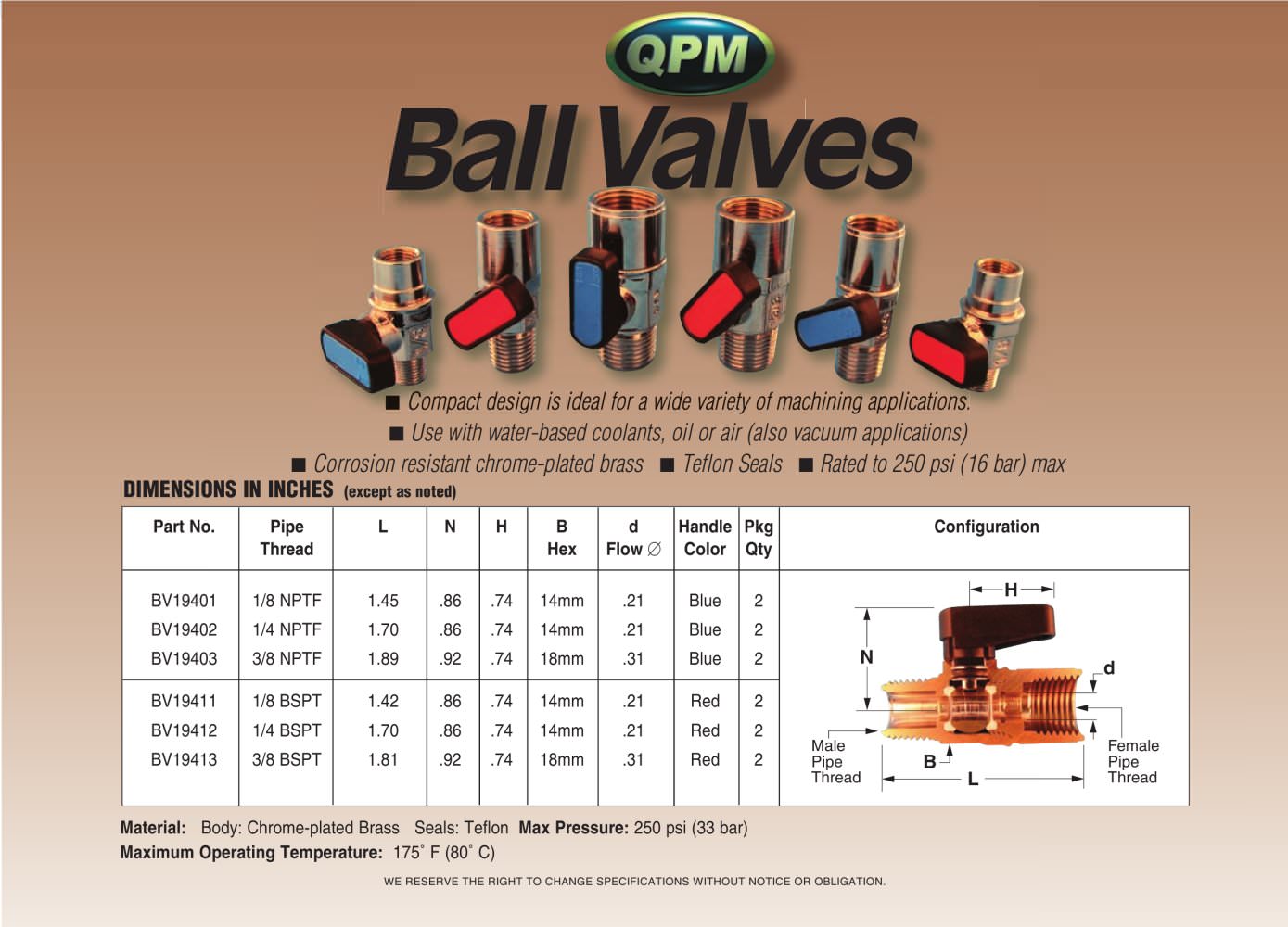

Valve Specifications:
- Material: Body - Chrome-plated Brass, Seals - Teflon
- Maximum Pressure: 250 psi (16 bar)
- Maximum Operating Temperature: 175°F (80°C)
Part Numbers and Configurations:
| Part No. | Pipe Thread | Dimensions (L x N x H x B x d) | Flow Color | Package Qty |
|---|---|---|---|---|
| BV19401 | 1/8 NPTF | 1.45 x .86 x .74 x 14mm x .21 | Blue | 2 |
| BV19402 | 1/4 NPTF | 1.70 x .86 x .74 x 14mm x .21 | Blue | 2 |
| BV19403 | 3/8 NPTF | 1.89 x .92 x .74 x 18mm x .31 | Blue | 2 |
| BV19411 | 1/8 BSPT | 1.42 x .86 x .74 x 14mm x .21 | Red | 2 |
| BV19412 | 1/4 BSPT | 1.70 x .86 x .74 x 14mm x .21 | Red | 2 |
| BV19413 | 3/8 BSPT | 1.81 x .92 x .74 x 18mm x .31 | Red | 2 |
Additional Notes:
All dimensions are in inches unless otherwise noted. The manufacturer reserves the right to change specifications without notice or obligation.
