PVD3X3M Proportional Valve Driver
3Pages

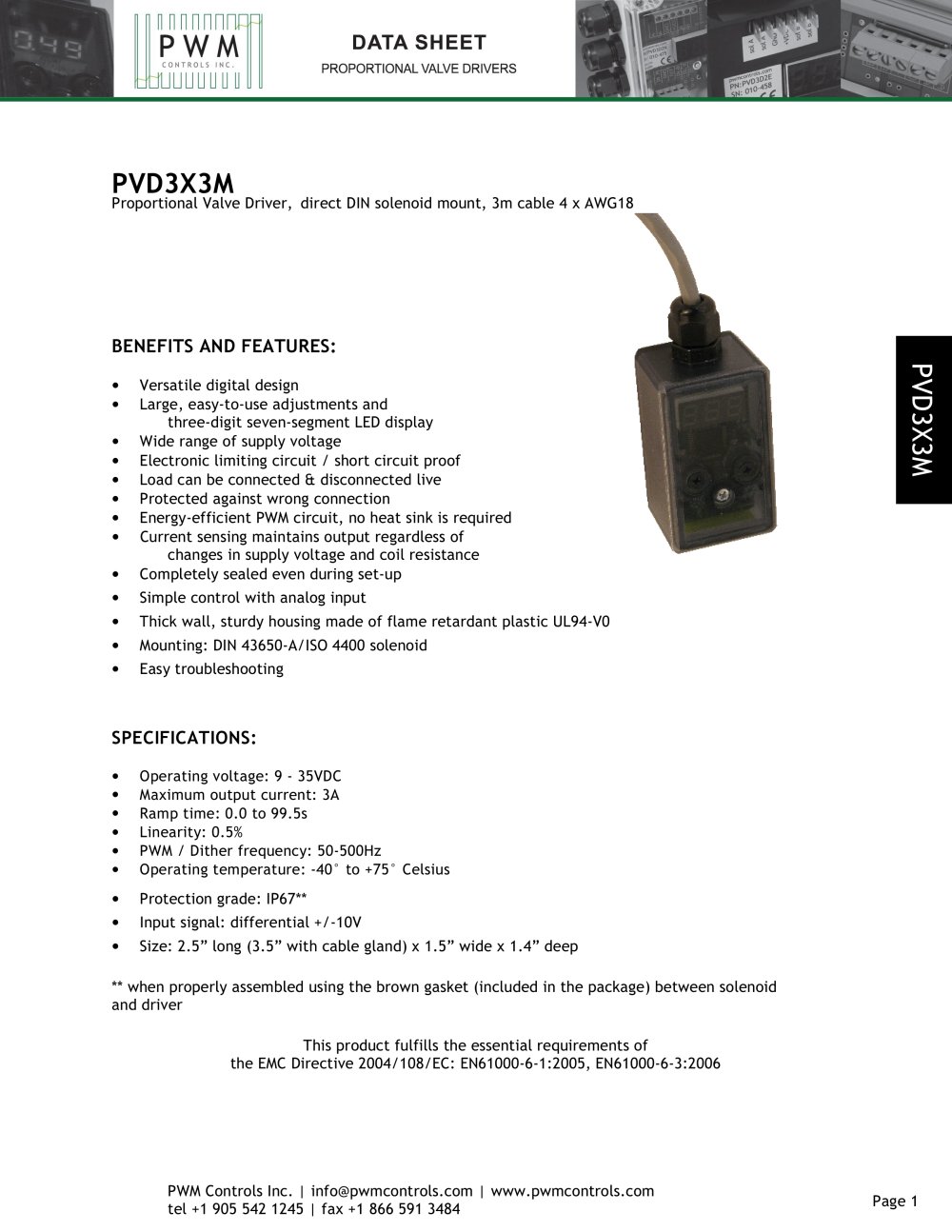

PVD3X3M Proportional Valve Driver, direct DIN solenoid mount, 3m cable 4 x AWG18 Simple control with analog input Thick wall, sturdy housing made of flame retardant plastic UL94-V0 Versatile digital design Large, easy-to-use adjustments and three-digit seven-segment LED display Wide range of supply voltage Electronic limiting circuit / short circuit proof Load can be connected & disconnected live Protected against wrong connection Energy-efficient PWM circuit, no heat sink is required Current sensing maintains output regardless of changes in supply voltage and coil resistance Completely sealed even during set-up Easy troubleshooting Operating voltage: 9 - 35VDC Maximum output current: 3A Ramp time: 0.0 to 99.5s Linearity: 0.5% PWM / Dither frequency: 50-500Hz Operating temperature: -40° to +75° Celsius Input signal: differential +/-10V Size: 2.5” long (3.5” with cable gland) x 1.5” wide x 1.4” deep ** when properly assembled using the brown gasket (included in the package) between solenoid and driver This product fulfills the essential requirements of the EMC Directive 2004/108/EC: EN61000-6-1:2005, EN61000-6-3:2006 PWM Controls Inc. | info@pwmcontrols.com | www.pwmcontrols.com tel +1 905 542 1245 | fax +1 866 591 3484

PVD3X3M Proportional Valve Driver, direct DIN solenoid mount, 3m cable 4 x AWG18 High, output current corresponding to the highest input, 0.00 to 3.00 A Jog, used to simulate signal, 0.00 to 3.00 A Low, output current corresponding to the lowest input, 0.00 to 3.00 A Ramp up, time required for the output to increase from LO to H1, 00.0 to 99.5 s Ramp down, time required for the output to decrease from H1 to LO, 00.0 to 99.5 s Deadband, output is disabled when command signal is less than this setting, in % Input signal selection, 010 (differential +/-10V) Display orientation, normal or...

Proportional Valve Driver, direct DIN solenoid mount, 3m cable 4 x AWG18 WIRING DIAGRAMS: Single solenoid, 0 to +10V command input signal: Pouer Supply Analogue Output Nodule Proportional Ualve Driver Dual solenoid, -10V to +10V command input signal: Pouer Supply Analogue Output Module Proportional Ualve Driver Proportional Ualve Driver PWM Controls Inc. | info@pwmcontrols.com | www.pwmcontrols.com
