PVD3DIN Proportional Valve Driver

Product catalog summary

Overview:
The PVD3DIN is a proportional valve driver designed for direct DIN solenoid mounting with a DIN cable connector. It is manufactured by PWM Controls Inc. and offers a robust, sealed design suitable for various industrial applications.

Benefits and Features:

Sealed design for protection during setup.
Simple control via analog input with locally supplied reference voltage.
Sturdy housing made from flame retardant plastic (UL94-V0).
Compatible with DIN 43650-A/ISO 4400 mounting standards.
Versatile digital design with easy adjustments and a three-digit LED display.
Wide supply voltage range and electronic limiting circuit for short circuit protection.
Energy-efficient PWM circuit that eliminates the need for a heat sink.
Current sensing to maintain output stability.

Specifications:

Operating voltage: 9 - 35VDC.
Maximum output current: 3A.
Ramp time: 0.0 to 99.5 seconds.
Linearity: 0.5%.
PWM/Dither frequency: 50-500Hz.
Operating temperature: -40° to +75° Celsius.
Input signal options: 0-5V, 0-10V, 0-20mA, or 4-20mA.
Protection grade: IP67.

Compliance:
This product complies with the EMC Directive 2004/108/EC, specifically EN61000-6-1:2005 and EN61000-6-3:2006.

Settings and Range:

Settings can be adjusted during operation, with changes effective immediately except for input range selection, which requires saving.
Settings include output current (H1, J9, LO), ramp times (UP, dn), deadband (db), dither frequency (df), input signal selection (in), and display orientation (di).
To save settings, rotate until 'SA' is displayed and then rotate one full turn.

Wiring Diagrams:

Diagrams provided for connections with analog cards/PLCs, potentiometers/joysticks, and switches for soft shifts between presets.
Important note: Do not connect pin to ground.

Catalog excerpts

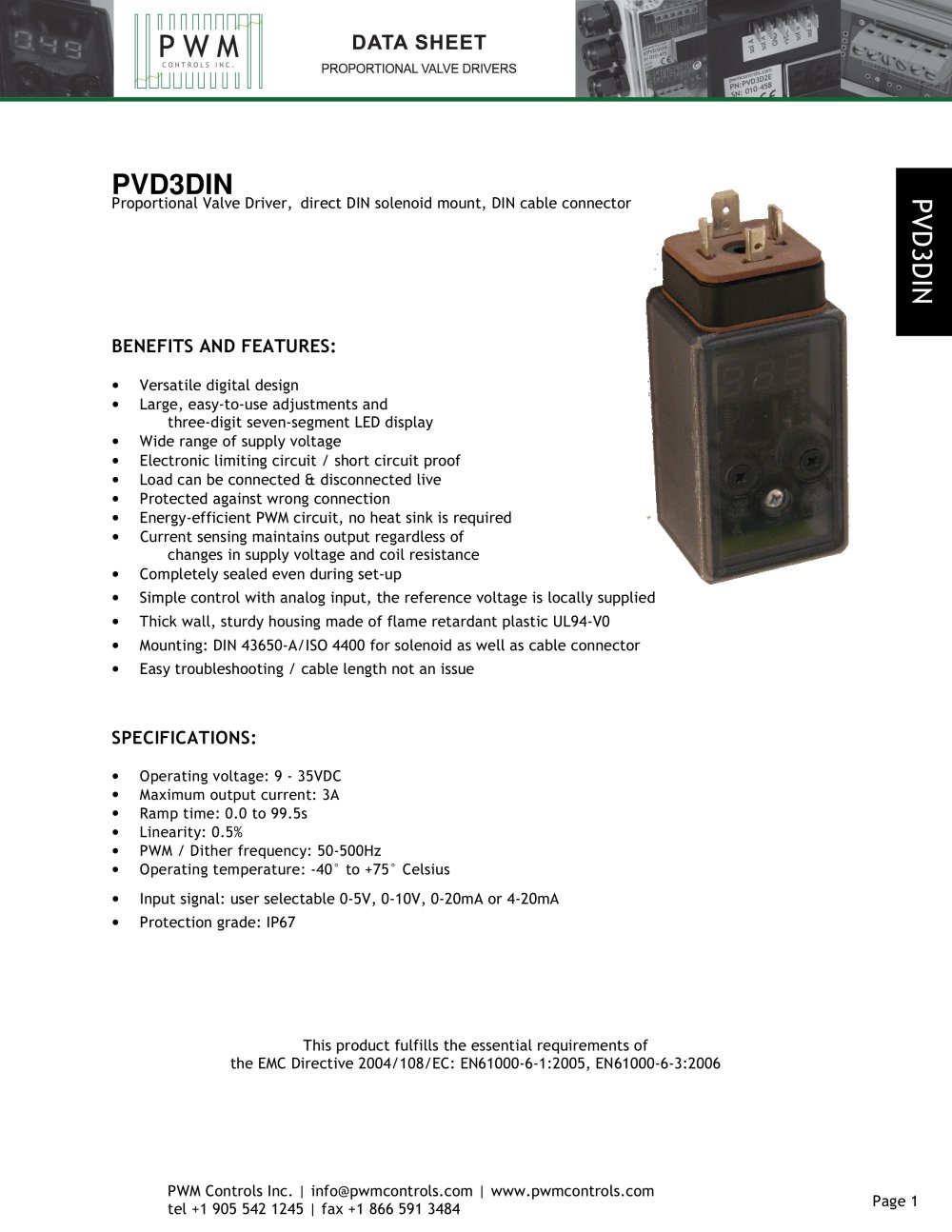

Proportional Valve Driver, direct DIN solenoid mount, DIN cable connector Versatile digital design Large, easy-to-use adjustments and three-digit seven-segment LED display Wide range of supply voltage Electronic limiting circuit / short circuit proof Load can be connected & disconnected live Protected against wrong connection Energy-efficient PWM circuit, no heat sink is required Current sensing maintains output regardless of changes in supply voltage and coil resistance Completely sealed even during set-up Simple control with analog input, the reference voltage is locally supplied Thick wall, sturdy housing made of flame retardant plastic UL94-V0 Mounting: DIN 43650-A/ISO 4400 for solenoid as well as cable connector Easy troubleshooting / cable length not an issue Operating voltage: 9 - 35VDC Maximum output current: 3A Ramp time: 0.0 to 99.5s Linearity: 0.5% PWM / Dither frequency: 50-500Hz Operating temperature: -40° to +75° Celsius Input signal: user selectable 0-5V, 0-10V, 0-20mA or 4-20mA This product fulfills the essential requirements of the EMC Directive 2004/108/EC: EN61000-6-1:2005, EN61000-6-3:2006 PWM Controls Inc. | [email protected] | www.pwmcontrols.com tel +1 905 542 1245 | fax +1 866 591 3484

Open the catalog to page 1

PVD3DIN Proportional Valve Driver, direct DIN solenoid mount, DIN cable connector High, output current corresponding to the highest input, 0.00 to 3.00 A Jog, used to simulate signal, 0.00 to 3.00 A Low, output current corresponding to the lowest input, 0.00 to 3.00 A Ramp up, time required for the output to increase from LO to H1, 00.0 to 99.5 s Ramp down, time required for the output to decrease from H1 to LO, 00.0 to 99.5 s Deadband, output is disabled when command signal is less than this setting, in % Display orientation, normal or up-side-down Save settings SET-UP PROCEDURE: At power up,...

Open the catalog to page 2

PWM Controls Inc. | [email protected] | www.pwmcontrols.com tel +1 905 542 1245 | fax +1 866 591 3484 Proportional Valve Driver, direct DIN solenoid mount, DIN cable connector

Open the catalog to page 3

Proportional Valve Driver, direct DIN solenoid mount, DIN cable connector WIRING DIAGRAMS: With signal from Analogue Card/PLC: Analogue Output Module Proportional Ualve Driver With signal from potentiometer/joystick: Proportional Ualve Driver With switch for soft shift between two presets: Pouer Supply Proportional Ualve Driver NOTE: Do not connect pin © to ground PWM Controls Inc. | [email protected] | www.pwmcontrols.com
