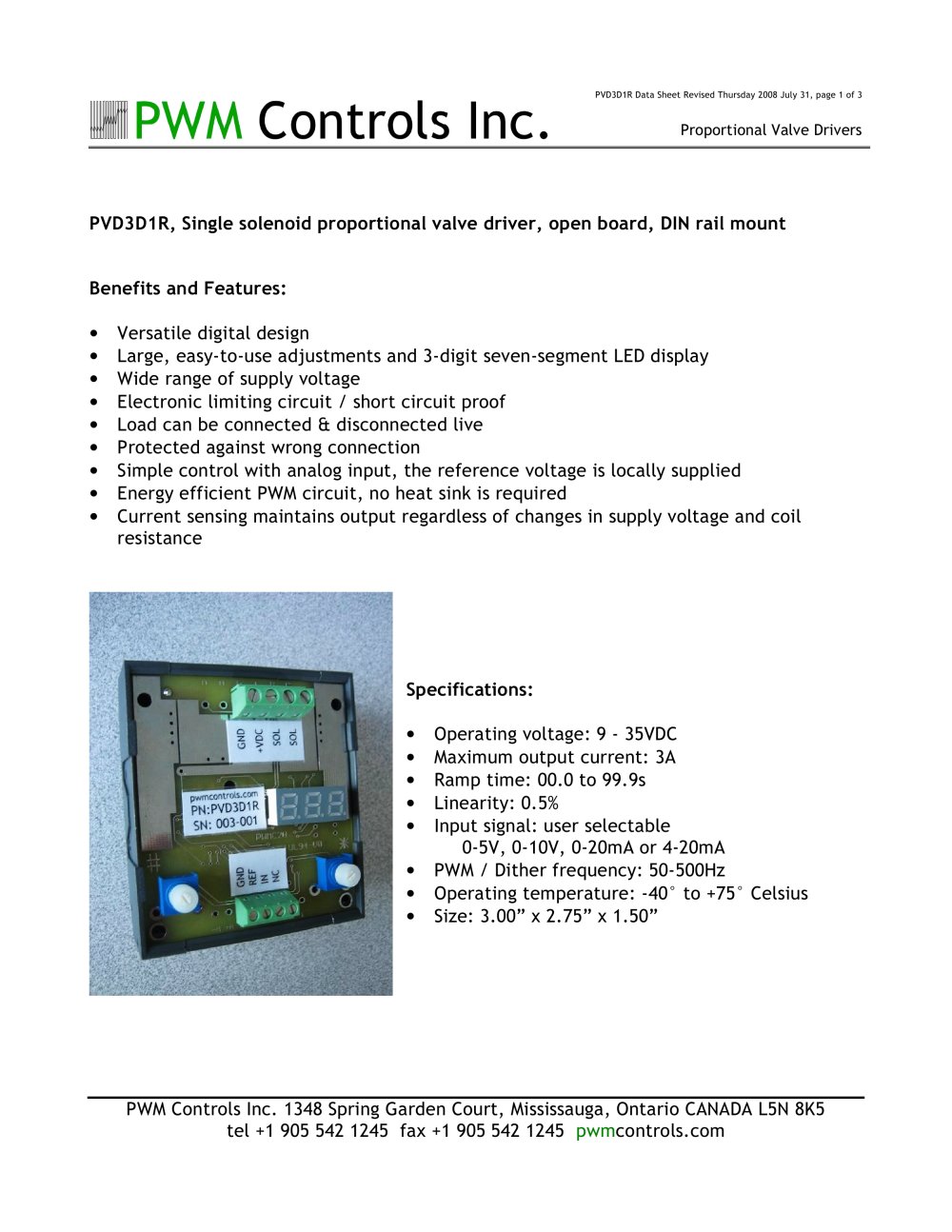

PVD3D1R Proportional Valve Driver

Product catalog summary

Overview: The PVD3D1R is a single solenoid proportional valve driver designed for open board and DIN rail mounting. It features a versatile digital design with user-friendly adjustments and a three-digit LED display.

Benefits and Features:

Versatile digital design with easy adjustments.
Wide supply voltage range and electronic limiting circuit.
Short circuit proof and live load connection capability.
Protected against incorrect connections.
Energy-efficient PWM circuit without the need for a heat sink.
Current sensing to maintain output stability.

Specifications:

Operating voltage: 9 - 35VDC
Maximum output current: 3A
Ramp time: 00.0 to 99.9 seconds
Linearity: 0.5%
Input signal options: 0-5V, 0-10V, 0-20mA, or 4-20mA
PWM/Dither frequency: 50-500Hz
Operating temperature: -40° to +75° Celsius
Dimensions: 3.00” x 2.75” x 1.50”

Settings & Range:

High and low output current settings.
Jog function for signal simulation.
Ramp up and ramp down time settings.
Deadband setting to disable output below a certain signal level.
Dither frequency adjustment.
Input signal selection and display orientation options.
Settings can be saved for future use.

Set-Up Procedure: At power-up, users can view the solenoid output current or command input signal. Entering set-up mode allows sequential modification of settings. Adjustments are effective immediately, except for input range selection, which requires saving to take effect. To save settings, follow the display prompts; unsaved changes are lost upon power down.

Additional Information: The document notes that models or specifications may change without notice.
