PVD3D1N Proportional Valve Driver

Product catalog summary

Product Overview: The PVD3D1N is a proportional valve driver from PWM Controls Inc., designed for versatile digital control of one PWM solenoid output. It features a sealed plastic enclosure and is equipped with a large, easy-to-use three-digit seven-segment LED display.

Benefits and Features: The device offers a wide range of supply voltage, electronic limiting circuit, and short circuit protection. It allows live connection and disconnection of loads and is protected against incorrect connections. The energy-efficient PWM circuit eliminates the need for a heat sink, and current sensing ensures consistent output despite changes in supply voltage and coil resistance.

Specifications: Operating voltage ranges from 9 to 35VDC, with a maximum output current of 3A. The ramp time is adjustable from 0.0 to 99.5 seconds, and the linearity is 0.5%. The PWM/dither frequency ranges from 50 to 500Hz, and it operates in temperatures from -40° to +75° Celsius. It complies with EMC Directive 2004/108/EC standards.

Control and Input: The device supports simple control with analog input, with locally supplied reference voltage. It includes three PG7 liquid-tight cable glands for power, signals, and coil connections. Input signals are user-selectable among 0-5V, 0-10V, 0-20mA, or 4-20mA.

Settings and Range: Users can adjust settings such as output current (H1, J9, LO), ramp times (UP, dn), deadband (db), dither frequency (df), input signal selection (in), and display orientation (di). Settings are saved by rotating the control until 'SA' is displayed and then rotating one full turn.

Setup Procedure: The driver remains fully functional during setup, with immediate effect of adjustments except for input range selection, which requires saving. To save new settings, rotate the control to 'SA' and perform a full turn. Powering down without saving will discard changes.

Wiring Diagrams: The document includes wiring diagrams for connections with an analogue card/PLC, potentiometer/joystick, and a switch for soft shifting between two presets.

Catalog excerpts

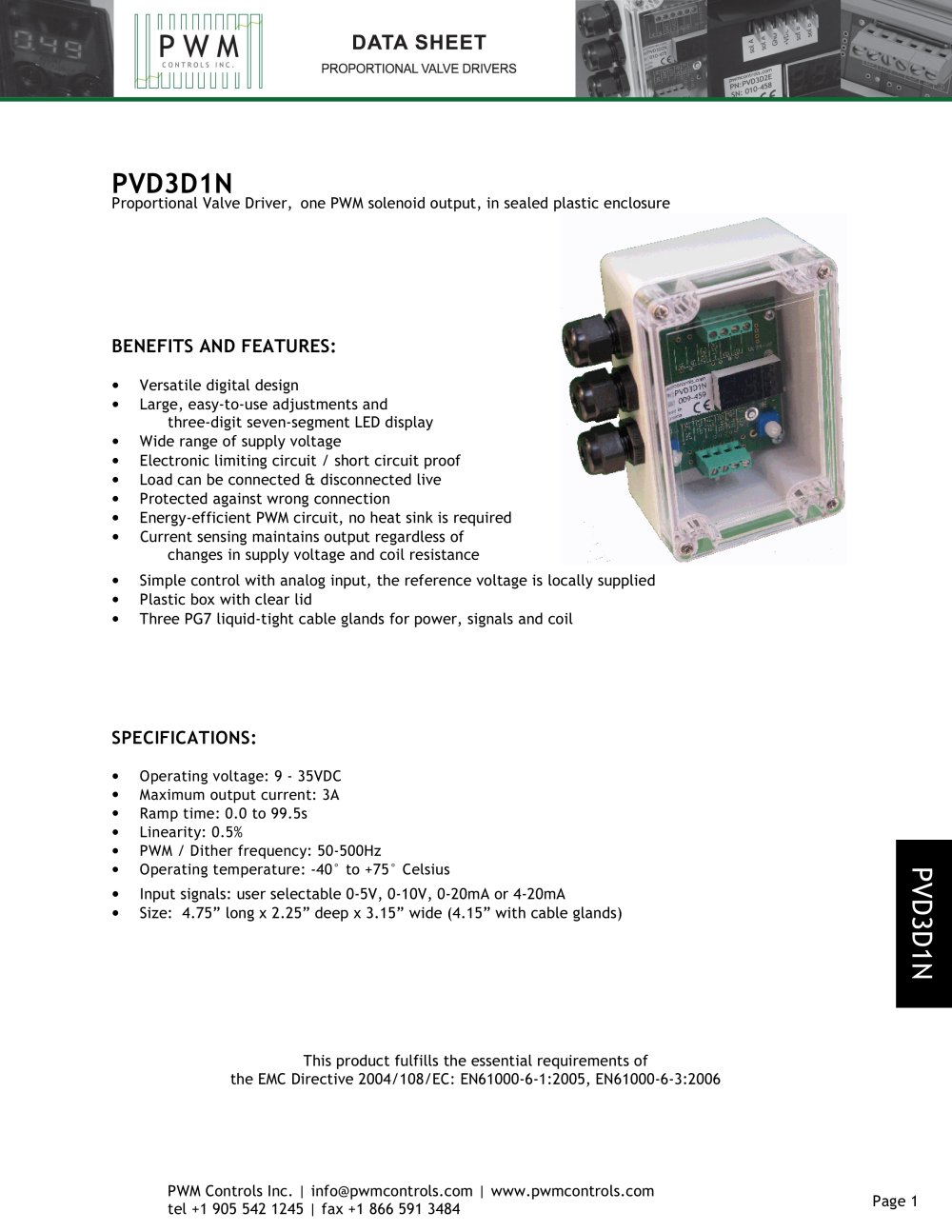

PVD3D1N Proportional Valve Driver, one PWM solenoid output, in sealed plastic enclosure Versatile digital design Large, easy-to-use adjustments and three-digit seven-segment LED display Wide range of supply voltage Electronic limiting circuit / short circuit proof Load can be connected & disconnected live Protected against wrong connection Energy-efficient PWM circuit, no heat sink is required Current sensing maintains output regardless of changes in supply voltage and coil resistance Simple control with analog input, the reference voltage is locally supplied Plastic box with clear lid Three PG7 liquid-tight cable glands for power, signals and coil SPECIFICATIONS: Operating voltage: 9 - 35VDC Maximum output current: 3A Ramp time: 0.0 to 99.5s Linearity: 0.5% PWM / Dither frequency: 50-500Hz Operating temperature: -40° to +75° Celsius Input signals: user selectable 0-5V, 0-10V, 0-20mA or 4-20mA Size: 4.75” long x 2.25” deep x 3.15” wide (4.15” with cable glands) This product fulfills the essential requirements of the EMC Directive 2004/108/EC: EN61000-6-1:2005, EN61000-6-3:2006 PWM Controls Inc. | [email protected] | www.pwmcontrols.com tel +1 905 542 1245 | fax +1 866 591 3484

Open the catalog to page 1

PVD3D1N Proportional Valve Driver, one PWM solenoid output, in sealed plastic enclosure High, output current corresponding to the highest input, 0.00 to 3.00 A Jog, used to simulate signal, 0.00 to 3.00 A Low, output current corresponding to the lowest input, 0.00 to 3.00 A Ramp up, time required for the output to increase from LO to H1, 00.0 to 99.5 s Ramp down, time required for the output to decrease from H1 to LO, 00.0 to 99.5 s Deadband, output is disabled when command signal is less than this setting, in % Display orientation, normal or up-side-down Save settings SET-UP PROCEDURE: At power...

Open the catalog to page 2

Proportional Valve Driver, one PWM solenoid output, in sealed plastic enclosure WIRING DIAGRAMS: Analogue Output Module With signal from Analogue Card/PLC: With signal from potentiometer/joystick: With switch for soft shift between two presets: PWM Controls Inc. | [email protected] | www.pwmcontrols.com

Open the catalog to page 3
