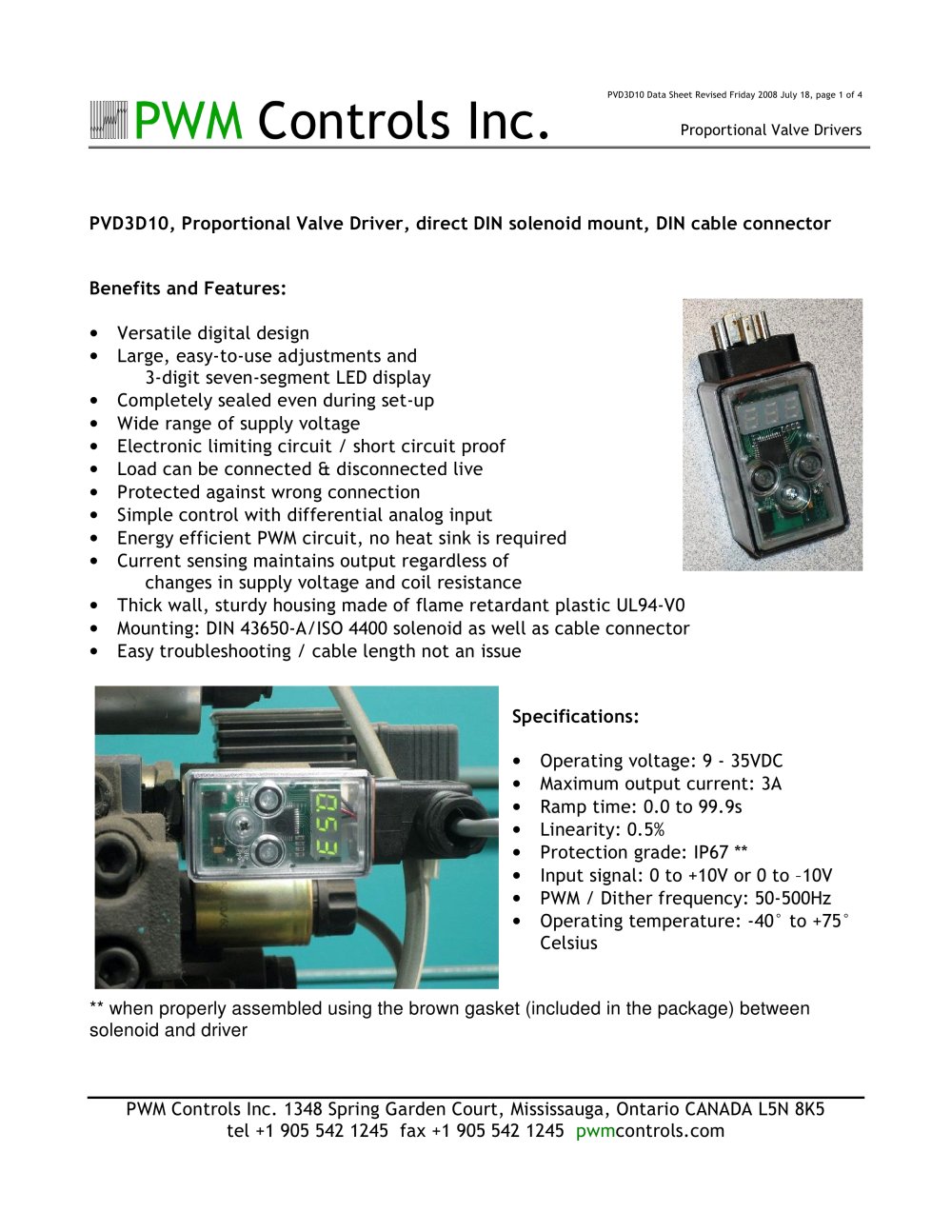

PVD3D10 Proportional Valve Driver

Product catalog summary

Overview: The PVD3D10 is a proportional valve driver designed for direct DIN solenoid mounting with a DIN cable connector. It features a versatile digital design with a user-friendly interface, including a 3-digit seven-segment LED display. The device is completely sealed, supports a wide range of supply voltages, and includes an electronic limiting circuit that is short circuit proof.

Benefits and Features:

Energy-efficient PWM circuit that does not require a heat sink.
Current sensing to maintain output despite changes in supply voltage and coil resistance.
Sturdy housing made of flame-retardant plastic (UL94-V0).
Easy troubleshooting with no issues related to cable length.

Specifications:

Operating voltage: 9 - 35VDC
Maximum output current: 3A
Ramp time: 0.0 to 99.9 seconds
Linearity: 0.5%
Protection grade: IP67 (when properly assembled with the included brown gasket)
Input signal: 0 to +10V or 0 to -10V
PWM/Dither frequency: 50-500Hz
Operating temperature: -40° to +75°C

Settings & Range: The device allows for various settings including high and low output current, ramp up and down times, deadband, dither frequency, input signal, and display orientation. Settings can be saved for future use.

Set-Up Procedure: Users can adjust settings by rotating the control knob to view and modify settings. The device remains fully functional during setup, and changes take effect immediately. To save new settings, rotate the knob until the display shows the save option, then confirm. If settings are not to be saved, simply power down the device.

Wiring Examples: The document provides wiring examples for single solenoid with 0 to +10V command input signal and dual solenoid with -10V to +10V command input signal.
