The worldwide biggest truck-mounted concrete pump on construction sites - 1

BP_4071_1_GB 20.01.2010 9:16 Uhr Seite 1 Top class in power and technology – the newly developed BSS 70-5 semi-trailer machine 2 Small support area and up to 65.1 m horizontal reach without load torque limitation! Optimised down to the finest detail Reliable stability thanks to innovative support technology (IRS) For the BSS 70-5, new paths have been forged in the design of the side support and semi-trailer attachment system. The necessary stability for the longreach boom pump is achieved through the rear swinging support legs and a new forward support system with a special coupling and pivoting kinematics. The "3-point mounting suspension" used as the connection to the semi-trailer makes it possible to use the weight of the s 5-arm boom with RZ folding with optimum flexibility – best reach to floors at different heights. s Without load torque limitation: Working with horizontally extended boom with 360° slewing circle is therefore possible! s The IRS support system achieves optimal weight and support width thanks to the telescoping front legs. s Special pivoting kinematics with slewing circle up to OSS position s The boom can be completely unfolded above the area where the truck is standing – ideal for work in limited spaces. s Boom delivery line consists of max. 3 m pipes for easy handling. appro x. 9.2 appro x. 9. 2 m m Top-class equipment as standard Robust technology: pumps, hydraulic system and hopper s Proven reliability – the S-transfer tube s Free flow hydraulic system in a closed circuit (almost the only manufacturer) s Fewer switchovers thanks to large cylinder volumes s Extremely wear-resistant s Very smooth running s Low-maintenance modular pump unit s High cylinder fill level s Longer service life thanks to internally chromed delivery cylinders, as standard s Low hopper fill level of approx. 130 cm (unsupported) s Operator-friendly hopper s Powerful pumps available for any application s EPS (Ergonic® Pump System) and EOC (Ergonic® Output Control) s EBC (Ergonic® Boom Control) s EGD and EGD-RC (Ergonic® Graphic Display on control cabinet and radio remote control) OSS support The worldwide only truck-mounted concrete pump of this size in use made in series production 5 tractor unit as the stationary weight. This design solution reduces the weight required on the Putzmeister semi-trailer and allows the narrowest possible support width. Thus, an angled position be- tween the truck and the semi-trailer is also possible. This has advantages in awkward construction site situations and enables optimal adjustment to the terrain. 7 Turning circle of less than 18 m – the best in this class! Good all-terrain semi-trailer capability 3.4 m 6 S transfer tube 8 Supplied as standard: Internally chromed delivery cylinders s OSS (One Side Support) s Centralised lubrication system for hopper and arm assembly s 16 timber blocks s Support leg illumination s CAN bus display for the independent power unit s and much more s A water-cooled, turbo-charged Deutz V6 (TCD2015) diesel separate engine with 330 kW (450 HP) supplies the boom and core pump with the necessary power. s The engine with 11,900 ccm and 2000 Nm torque (at 1,300 rpm) provides high performance with low fuel consumption and complies with TIER 3. 14.3 m 9 10 3 11 Heigth < 4 m The new BSS 70-5 combines the world's only 69.3 m vertical reach boom with the latest Putzmeister concrete pump technology – in terms of steel construction, hydraulic systems and electrical systems. In order to be able to deploy a machine of this size, however, a detailed overall concept was required. In terms of load distribution, design of the semi-trailer superstructure or determination of the distance between axles, the Putzmeister team set new benchmarks. With almost 30 years of experience in the design and construction of long-reach boom pumps, Putzmeister now offers its customers the BSS 70-5, a reliable truck-mounted concrete pump which can show strengths precisely in large construction projects. s OSS (assistance device for one-side support) means that the machine can also be used where there is limited space available. Hopper fill level 1.4 m File under A 1.00, A 4.00, BP 1.03, BP 4.03 4 CAN bus display for the separate engine Length in total approx. 21.4 m BP 4071-1 GB 3D model of the Deutz separate engine BP 4071-1 GB

Open the catalog to page 1

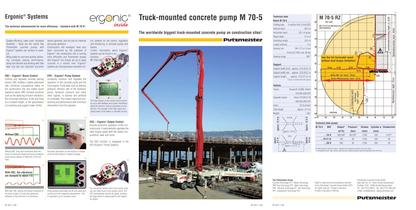

The worldwide biggest truck-mounted concrete pump on construction sites - 2

BP_4071_1_GB 20.01.2010 9:16 Uhr Seite 2 19 ® Ergonic Systems Truck-mounted concrete pump M 70-5 inside The technical advancement for more efficiency – standard with M 70-5! Technical data M 70-5 RZ Boom M 70-5 Folding type 5-section Roll-Z-fold (RZ) Vertical reach The worldwide biggest truck-mounted concrete pump on construction sites! 69.3 m Horizontal reach 65.1 m gross Reach depth trol systems for the control, regulation and monitoring of concrete pumps and booms. Further information about Ergonic® systems can be found in our brochure BP 3763 GB. Unfolding height 1 24.5 m Length endhose...

Open the catalog to page 2
