High density solids pumps KOS IP 1082-7 GB

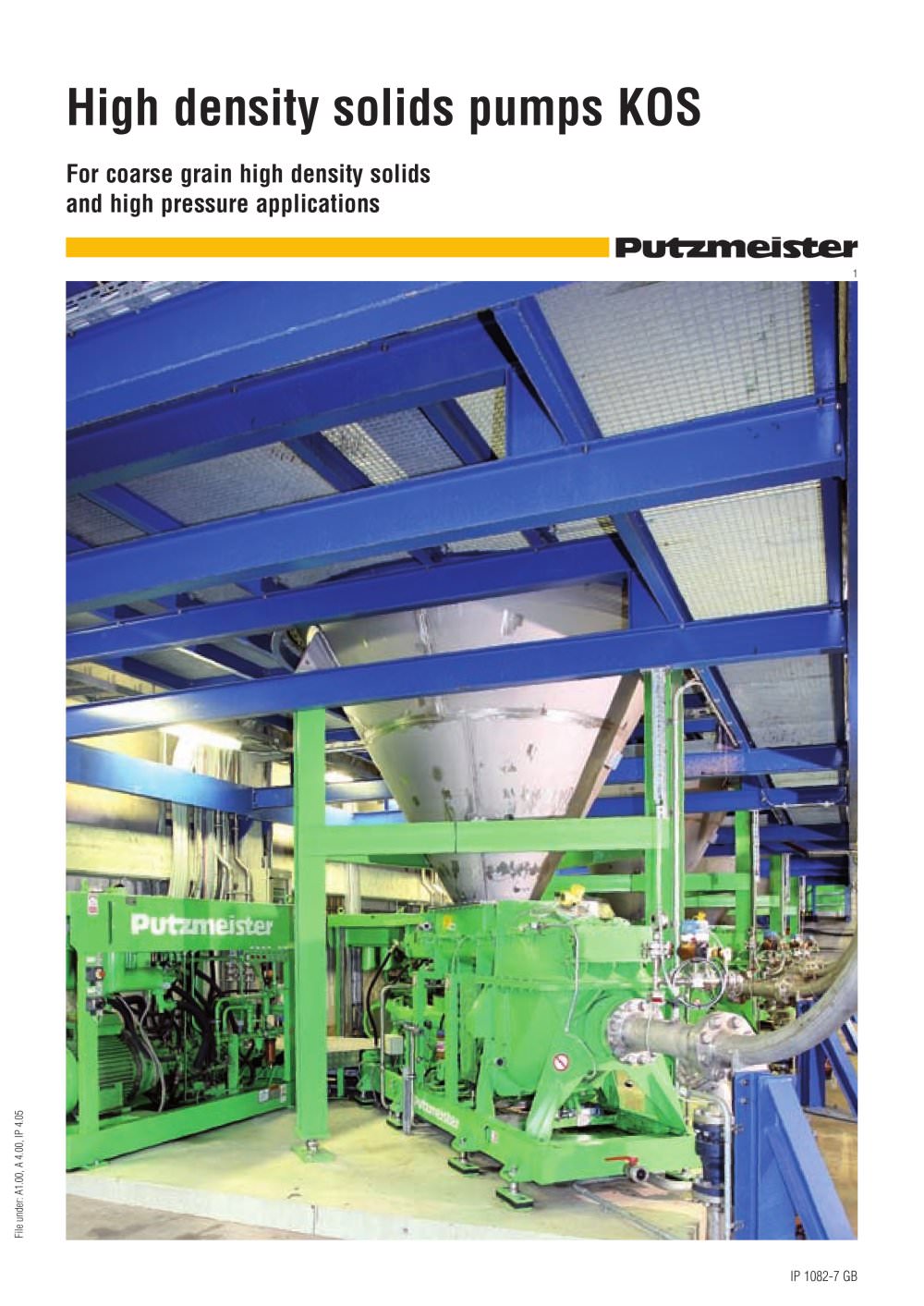

Open the catalog to page 1The KOS sries for mdia to be conveyed... Transfer tube controlled high density solids pumps without valves One feature of the KOS s驩ries is its S-transfer tube. This connection of the drawing-in and pressure cylinders guar-antees an almost continuous operation with free passage of the material to be conveyed without valves. Individual for-eign bodies in the material to be conveyed can easily be conveyed with a particle size of up to 80 % of the outlet diameter. When the S-transfer tube switches over, minimum return flow can occur in isolat-ed cases at very high pressures. This is usually...
Open the catalog to page 2... with a high percentage of solid matter and coarse grain with pressures up to 130 bar The main field of application ist thus for materials with most extrme require-ments. These are, for example: ■ Highly dewatered sewage sludges ■ Sewage sludges with percentages of foreign bodies ■ Oil sludges with percentages of foreign bodies ■ Bio waste and other waste ■ Chemical and organic high density solids with highest viscosity ■0* Differentiating features: KOS ■ For high density solids with a high percentage of solids and coarse, individual foreign bodies up to approx. 80 % of the pipe inside...
Open the catalog to page 3The powerful high density solids pumps with S-transfer tube 13 The S-transfer tube S-transfer tubeof the KOS with reduction in the S-pipe There are four variations in shape and diameter of the S-pipe (refer to Fig. 17). It can thus be adapted to the respective operating conditions. The S-transfer tube offers decisive advantages for you during operation in conjunction with the automatic ring: ■ Favourable flow conditions ■ High cylinder filling rate ■ Low wear ■ Long service life ■ Easy-to-clean ■ Especially compression-proof even with a high percentage of solids ■ Quiet and exact pumping...
Open the catalog to page 4The delivery rate and pressure can be very Itexibly adjusted to suit various applications thanks to the hydraulic drive. The delivery rate and pressure may be regulated by process contiol Systems, remotely if required. The Cl hydraulic pack is particularly quiet in opration because ol ils vibration damping trame. The hydraulic tluid The prepresser unit Foi slitt mdia which cannot be drawn in as Ihey are, prepresser units with sell-;leaning screw conveyors are install驩e! on the intake side. The conveyed product in Ihe hopper is mlensively kneaded and mxed in Ihe screw conveyors and Ihen...
Open the catalog to page 5Accessories for custom design and equipment of your system Delivery line: Enclosed pipelines are used to transport solids, thus preventing odours and contamination and not requiring operating personnel to come into contact with the conveyed product. These pipelines can be laid in a way which is both economic-al with space and best suited to the conͭstruction. The ZX delivery line system is completely leakproof and resists high pressures. The pipes are designed for the specified oper-ating pressure by dynamic calculation, thus rendering them long-lasting and suitable for non-abrasive media....
Open the catalog to page 6Putzmeister high density solids pumps provide solutions for the most difficult applications and for media most resistant to pumping 24 Putzmeister has been building pumps for concrte, mortar and all types of solids since 1958. Reliable engineering and practical innovations have placed these machines among the best of their kind world-wide. Putzmeister pumps continue to achieve new records for pumping the most difficult material of all - concrete. With almost 200 bar concrete pressure, they can achieve delivery heights greater than 500 m and delivery over distances in excess of 2000 m. In...
Open the catalog to page 7Technical data Type Output* Conveying pressure** Stroke Delivery cyl. 0 Length (L) Width (W) Height (H) m3/h bar mm mm mm mm mm KOS 740 10 60 700 150 3050 930 670 KOS 1030 16 100 1000 120 3300 800 700 KOS 1050 36 100 1000 180 3900 900 800 KOS 1070 60 85 1000 230 3900 900 800 KOS 1080 80 80 1000 280 4300 1000 1100 KOS 1480 85 80 1400 280 5400 1100 1100 KOS 2180 115 80 2100 280 6800 1100 1100 KOS 25100 200 150 2500 360 8000 2150 1550 KOS 25150 260 90 2500 450 8500 2150 1550 KOS 25200 400 30 2500 560 9000 3150 2100 The data quoted above serves as a guide line. Designs differ according to...
