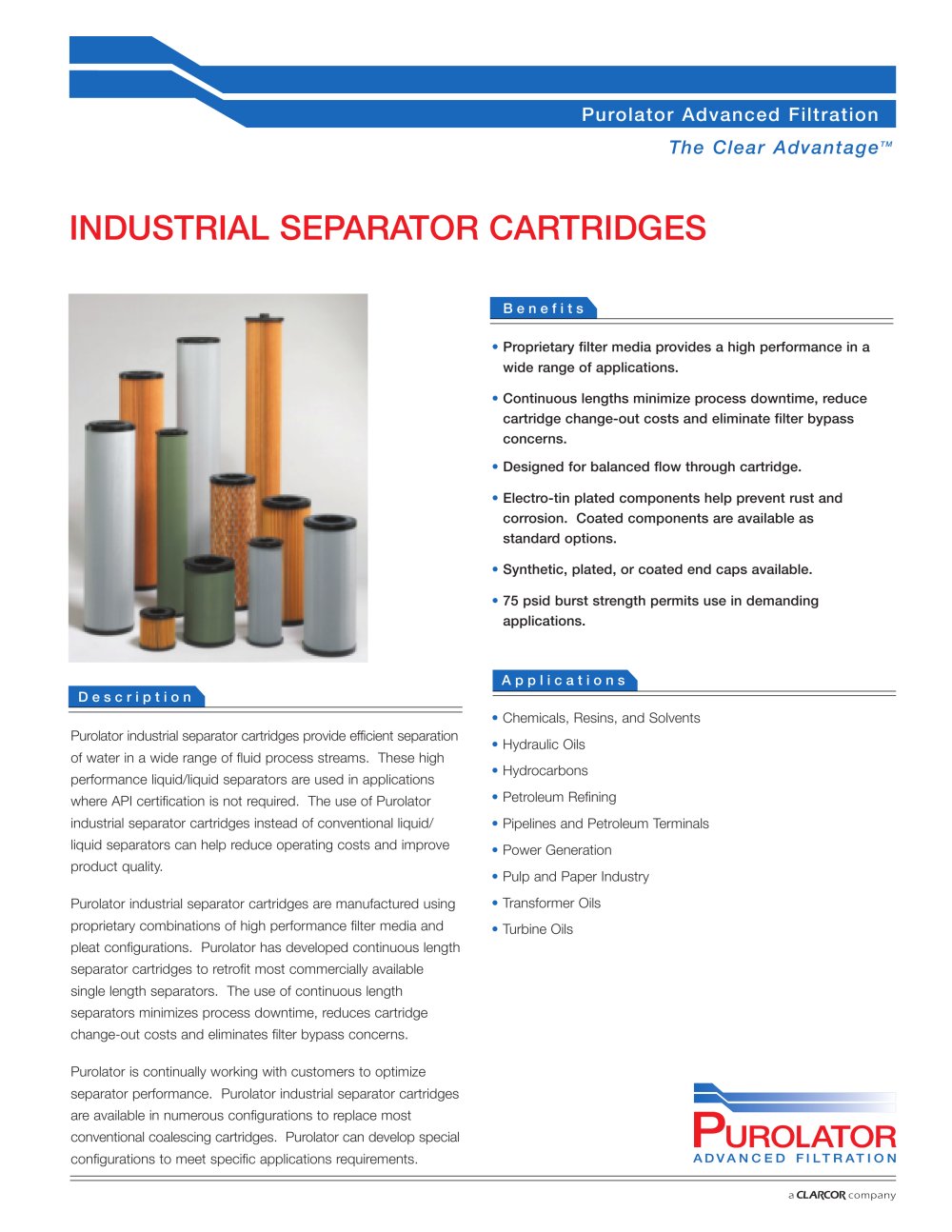

Purolator industrial separator cartridges provide efficient separation of water in a wide range of fluid process streams. These high performance liquid/liquid separators are used in applications where API certification is not required. The use of Purolator industrial separator cartridges instead of conventional liquid/ liquid separators can help reduce operating costs and improve product quality. Purolator industrial separator cartridges are manufactured using proprietary combinations of high performance filter media and pleat configurations. Purolator has developed continuous length separator cartridges to retrofit most commercially available single length separators. The use of continuous length separators minimizes process downtime, reduces cartridge change-out costs and eliminates filter bypass concerns. Purolator is continually working with customers to optimize separator performance. Purolator industrial separator cartridges are available in numerous configurations to replace most conventional coalescing cartridges. Purolator can develop special configurations to meet specific applications requirements. • Proprietary filter media provides a high performance in a wide range of applications. • Continuous lengths minimize process downtime, reduce cartridge change-out costs and eliminate filter bypass concerns. • Designed for balanced flow through cartridge. • Electro-tin plated components help prevent rust and corrosion. Coated components are available as standard options. • Synthetic, plated, or coated end caps available. • 75 psid burst strength permits use in demanding applications. • Chemicals, Resins, and Solvents • Hydraulic Oils • Hydrocarbons • Petroleum Refining • Pipelines and Petroleum Terminals • Power Generation • Pulp and Paper Industry • Transformer Oils • Turbine Oils Purolator Advanced Filtration The Clear AdvantageTM D e s c r i p t i o n A p p l i c a t i o n s B e n e f i t s INDUSTRIAL SEPARATOR CARTRIDGES

P e r f o r m a n c e S p e c i f i c a t i o n s M a t e r i a l s o f C o n s t r u c t i o n Filter Media Options: SP Series: Silicone treated, pleated pap ST Series: Teflon® coated screen SS Series: Synthetic hydrophobic mesh Metal Components: Standard: Electro-tin Plated Components Optional: Powder Coated Epoxy Components Gasket Materials: Standard: Buna N Optional: Vegetable Fiber, Neoprene, Viton,® Non-asbestos Replacement Adhesives: Thermoset PVC Urethane Epoxy SERIES1 OD (inches) LENGTH (inches) PSZ611FB 6 1114 PSZ611FD 6 1114 PSZ614FB 6 1412 PSZ614FD 6 1412 PSZ616FD 6 1614 PSZ622FB...
