Purolator
40/41 Series

40/41 Series

Product catalog summary

Specifications:
The 40/41 Series Spin-On Elements are designed for hydraulic and lubrication oil filtration, with a maximum operating pressure of 100 psi and a burst pressure of 300 psi. They operate effectively within a temperature range of -45°F to 225°F. Standard seals are made of nitrile, and the elements are compatible with petroleum-based fluids, with consultation required for synthetic fluids. The thread size is 1.50" - 16 UNF - 2B, and the sealing diameter is 4.70". Element diameters are 5.05", with standard and extended lengths of 6.98" and 10.98", respectively. The dry weight for standard elements is 2.3 lbs, and for extended elements, it is 3.5 lbs.

Filtration Ratings:
Spin-on elements are available in five filtration ratings: 10 and 25 micron nominal, 3 and 7 micron absolute, and 6.5 micron absolute for water absorptive media. These elements are available in standard and extended lengths.

Ordering and Dimensional Information:
The pressure drop for clean elements using 150 SUS fluid is provided, with adjustments needed for different fluid viscosities. Dimensions are given in inches, with conversion to millimeters available.

Spin-On Heads:
The heads are made from cast aluminum and are designed to fit the 40/41 series elements. They have a maximum operating pressure of 100 psi, with a warning for 80 psi max without a bypass valve. Flow rates vary by head code, with options for suction and return lines.

Optional Accessories:
Various vacuum and pressure gauges and switches are available, with settings for different bypass valve pressures. Optional rubber weather covers and multiple port gauge locations can be selected.

Catalog excerpts

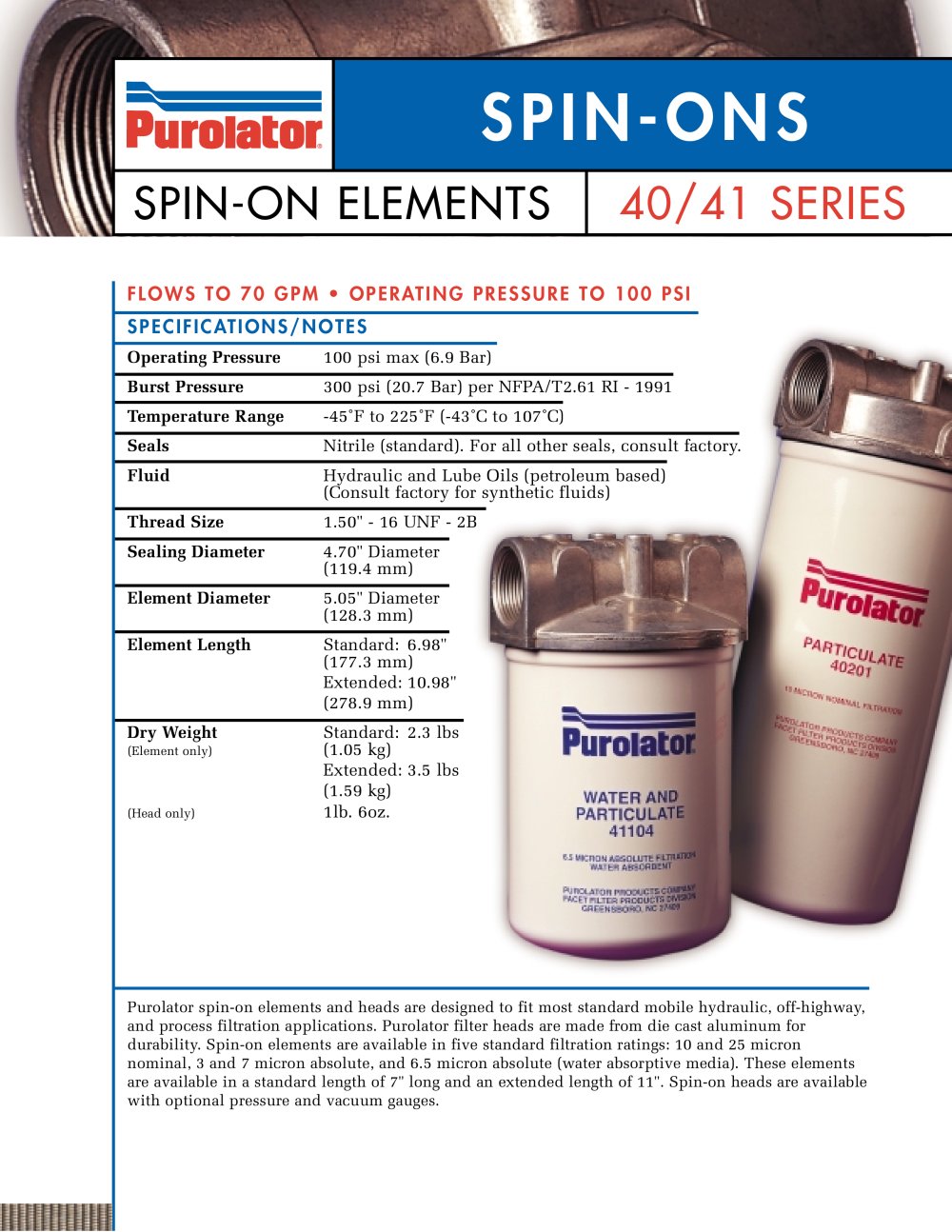

SPIN-ON ELEMENTS 40/41 SERIES FLOWS TO 70 GPM • OPERATING PRESSURE TO 100 PSI Burst Pressure Temperature Range Thread Size Sealing Diameter Element Diameter Element Length (Element only) (Head only) Nitrile (standard). For all other seals, consult factory. Hydraulic and Lube Oils (petroleum based) (Consult factory for synthetic fluids) Purolator spin-on elements and heads are designed to fit most standard mobile hydraulic, off-highway, and process filtration applications. Purolator filter heads are made from die cast aluminum for durability. Spin-on elements are available in five standard filtration ratings: 10 and 25 micron nominal, 3 and 7 micron absolute, and 6.5 micron absolute (water absorptive media). These elements are available in a standard length of 7" long and an extended length of 11". Spin-on heads are available with optional pressure and vacuum gauges.

Open the catalog to page 1

ORDERING AND DIMENSIONAL INFORMATION 40/41 SERIES SPIN-ON ELEMENTS Micropleat® resin-impregnated cellulose media are available in 10 and 25 micron nominal ( x=2). MicrofiMII composite media, composed of fiberglass, organic and inorganic materials, are available in 3 and 7 micron absolute ( x 75). * Microsorb™ water absorptive media are available in 6.5 micron absolute rating. PRESSURE DROP INFORMATION 40/41 Series Clean Element Pressure Drop Using 150 SUS (32 est), 0.9 Specific Gravity Fluid NOTE: For other fluids, multiply pressure drop from graph by new viscosity (centistokes) divided by old...

Open the catalog to page 2

Operating Pressure WARNING: 80 psi max without bypass valve Temperature Range Hydraulic and Lube Oils (petroleum based) (Consult factory for synthetic fluids) Cast Aluminum Head .56 DEEP MOUNTING HOLE .125 NPTF Guage Port (Optional) Inlet pressure locations [Return line) Outlet pressure locationsA,A,^b (Suction line) For dimensions & ports, see Xvif"^ SU x loucnon nnej ror aimer £r \ dimension table below. To convert to millimeters, multiply inches by 25.4. DIMENSIONAL INFORMATION FILTER HEADS FOR SERIES 40, 41 FILTER ELEMENTS

Open the catalog to page 3

Purolator Facet, Inc. • Made in USA 8439 Triad Drive • Greensboro, NC 27409 Email: [email protected] • Web site: www.purolator-facet.com ORDERING AND DIMENSIONAL INFORMATION 40 SERIES SPIN-ON HEADS SPIN-ON FILTER HEAD P/N HEAD CODE OPTIONAL ACCESSORIES * Multiple port gauge locations may be selected. Please enter in sequential order. PRESSURE GAUGES To convert to millimeters, multiply by 25.4. VACUUM AND INDICATOR SWITCHES To convert to millimeters, multiply by 25.4. CODE DESCRIPTIO ©Purolator Facet, Inc., 2001 Printed in USA 40/41S-5/01-2K

Open the catalog to page 4
