Tube beveling machine with computer numerical control

Tube beveling machine with computer numerical control

Product catalog summary

Overview:
The US80CNC is a versatile tube beveling machine designed for high-quality welding preparations on various materials, including mild steel, stainless steel, and alloys. It features a brushless motor and is suitable for use in ionizing radiation zones.

Specifications:
- Range Capacity: 3" - 16" (88.9mm - 406mm)
- Drive System: Brushless motor
- Power Supply: 230 V AC, 50-60 Hz
- Weight: 140kg (308 lbs)
- Clamping: Manual with key
- Feed Stroke: Axial (Z) 65mm, Radial (X) 75mm
- Feed per Revolution: 0 to 150 RPM

Features:
- 3-axis internal clamping with remote control
- Portable and operable in all positions
- Adjustable rotation and chipping speeds
- User-friendly interface with instant emergency stop functions
- Fluid-free operation (no hydraulic/pneumatic systems)

Applications:
The machine is designed for machining pipes affected by stress corrosion cracking and is applicable in constructing new reactors, including European Pressurized Reactors (EPR). It allows for multiple beveling types through easy programming, reducing operator exposure time.

Technical Capabilities:
- Beveling: J, X, V Beveling at angles of 30°, 37°30, 45°
- Counterboring: Tube Ø 138.98 mm (5.43") ID – Ø 385.66 mm (15.15") ID
- Outside Machining: Length 60mm (2.3")

Control Panel:
The control system is housed in two stackable aluminum cases for easy transport. It includes power supplies, variable speed drives, and safety systems.

Options and Accessories:
- Aluminum transport case
- Counterboring and beveling insert holders
- Additional steel blades and packaging cases
- Concentric clamping jaws

Conclusion:
The US80CNC is a robust and reliable machine offering precise and efficient tube beveling capabilities, suitable for a wide range of industrial applications.

Catalog excerpts

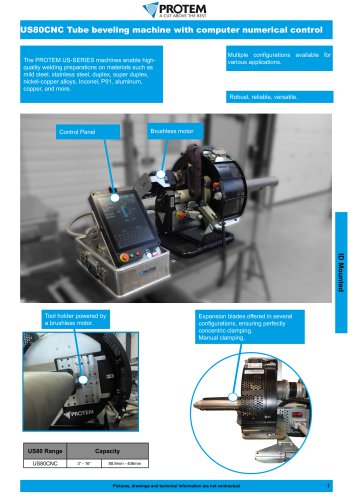

Tube beveling machine with computer numerical control-1

US80CNC Tube beveling machine with computer numerical control Multiple configurations available for The PROTEM US-SERIES machines enable high- various applications quality welding preparations on materials such as mild steel, stainless steel, duplex, super duplex, nickel-copper alloys, Inconel, P91, aluminum, Robust, reliable, versatile. Control Panel Brushless motor Tool holder powered by a brushless motor. ID Mounted Pictures, drawings and technical information are not contractual 1

Open the catalog to page 1

Tube beveling machine with computer numerical control-2

US80CNC Tube beveling machine with computer numerical controlDescription : The US80CNC is a 3-axis internal clamping machine equipped with remote control, brushless motor, and suitable for ionizing radiation zones. Portable and operable in all positions, it includes support feet for easy storage between uses. This CNC simultaneously controls the rotation of the plate. With synchronized the X, Z, and Theta axes, allowing for complex bevel machining. The chipping process enables machining of both thick and thin-walled tubes without compromising quality. Adjustable rotation and chipping speeds reduce...

Open the catalog to page 2

Tube beveling machine with computer numerical control-3

US80CNC Tube beveling machine with computer numerical controlTechnical Features: Specific shapes & angles ID Mounted Pictures, drawings and technical information are not contractual 3

Open the catalog to page 3

Tube beveling machine with computer numerical control-4

US80CNC Tube beveling machine with computer numerical control Control Panel: The control system design has been optimized to minimize bulk and weight, facilitating onsite deployment. The control system is housed in two stackable, easily transportable aluminum cases. • Case 1: contains the complete HMI panel. Weighing 15 kg, this case can be easily positioned close to the work area. • Case 2: Contains all the electrical and safety components necessary for the machine's operation. Weighing 19kg. This includes: • Power supplies for the CNC and motors, • Variable speed drives, • Safety systems (emergency...

Open the catalog to page 4

Tube beveling machine with computer numerical control-5

Pictures, drawings and technical information are no

Open the catalog to page 5
