Alignment
Product catalog summary
Overview: The document provides comprehensive specifications and guidelines for mechanical components and locks used in mold bases. It covers leader pins, bushings, guide locks, and various types of locks, detailing dimensions, material specifications, and ordering information.

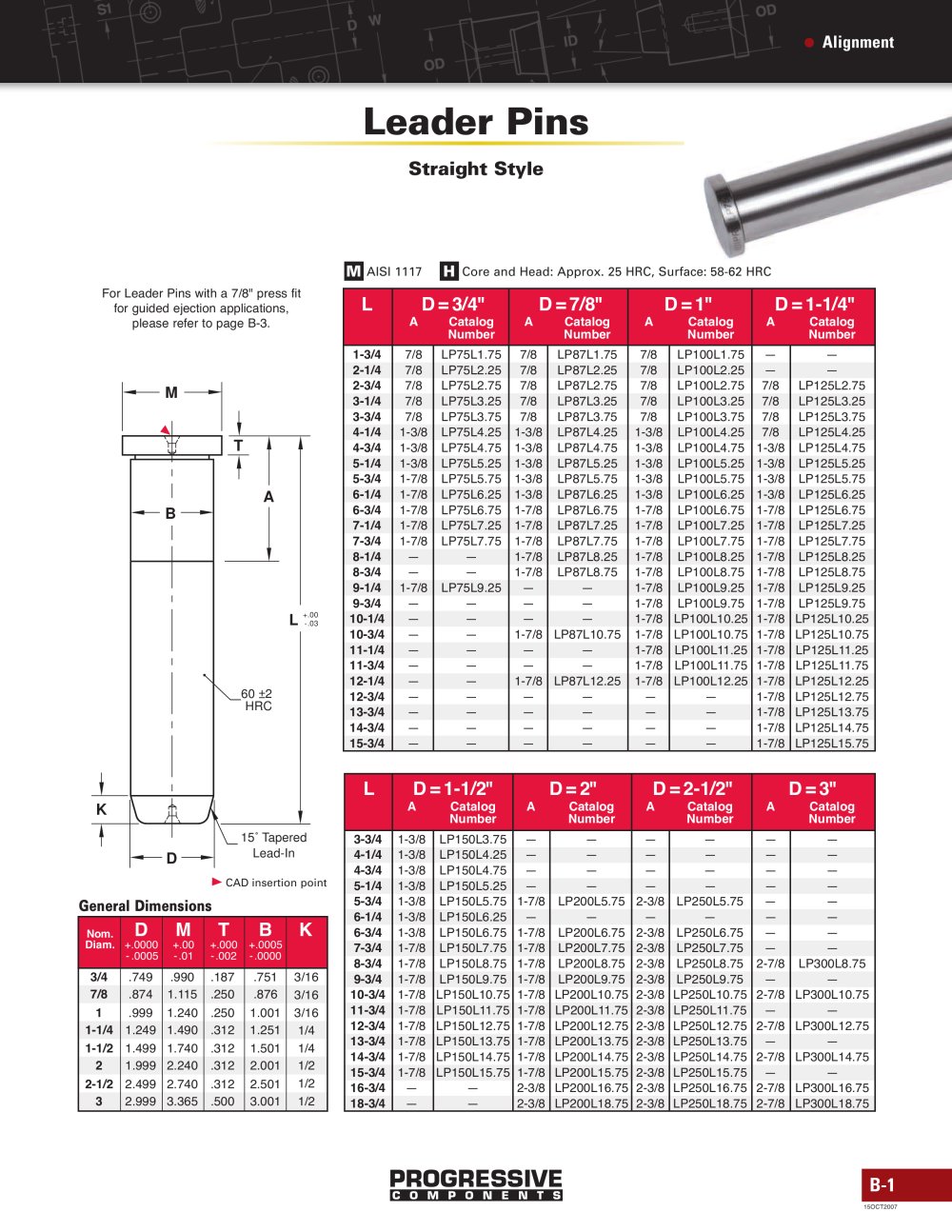

Leader Pins: Specifications for straight and shoulder style leader pins include material hardness (AISI 1117 H Core and Head: Approx. 25 HRC, Surface: 58-62 HRC) and dimensions suitable for press fit applications.
Bushings: The document details shoulder style, bronze plated, and graphite plugged bushings, with specific dimensions and material properties like AISI 1026 H 22-28 HRC for bronze plated bushings. Ordering instructions are provided for different bushing types.
Guide Locks: Specifications include dimensions, material properties, and catalog numbers, with guide locks designed for specific tolerances and available in various sizes.
General Dimensions: Nominal dimensions and tolerances for diameter, length, and other critical measurements are provided. The document emphasizes using appropriate lubrication to maintain graphite plugs.
Ordering Information: Instructions for ordering components include specifying catalog numbers for different configurations and materials, highlighting the importance of selecting the correct prefix for bushing types.
Locks Overview: Detailed specifications and guidelines for Guide Locks, Side Locks, Top Locks, and Taper Locks are provided, including Inch and Metric standards, dimensions, tolerances, and material hardness ratings.
Guide Locks: Available with dual radii for internal mounting, specifications include dimensions and screw sizes for mounting, with hardness ratings indicating durability and performance standards.
Side Locks: Detailed with Inch and Metric standards, including dimensions, tolerances, screw specifications, and material coatings like Black Oxide and Titanium Nitride for enhanced durability.
Top Locks: Available in various configurations, specifications include dimensions, tolerances, and material hardness, with guidelines for optimal performance and maintenance.
Taper Locks: Specifications include dimensions for outer and inner diameters, screw sizes, material specifications, and hardness ratings for compatibility and performance in mold applications.
Lock Selection Guide: Recommendations for selecting appropriate locks based on mold base size, considering waterline locations and plate thicknesses.
Additional Information: Availability of shuttle lock sets and custom configurations is mentioned, with instructions for ordering specific configurations and maintaining locks for optimal performance.
See more
Catalog excerpts
Shuttle Oold lock sets are available for Side Locks, Top Locks, and Guide Locks.The shuttle sets are dimensionally verified to be interchangeable within the setand numbered and packaged accordingly. Two configurations of shuttle sets are available: 2 Female Mnserts : 1 Male Mnsert To order, specify -SFӔ after the catalog number of the lock.Example: SL50X200-SF GL100X150-SF TL75X125-SF 2 Male Mnserts : 1 Female Mnsert To order, specify -SOӔ after the catalog number of the lock.Example: SL75X300-SO GL250X450-SO TL112X200-SOCustom lock configurations are available. Contact our Customer Service Department...
