Magnetic Clarifiers-Mud Collectors ОМ(М) [Base], variant 3

Magnetic Clarifiers-Mud Collectors ОМ(М) [Base], variant 3
1 / 1 PageView full catalog

Magnetic Clarifiers-Mud Collectors ОМ(М) [Base], variant 3

Product catalog summary
Overview: The document provides technical specifications and details for magnetic clarifiers and mud collectors designed for water refinement. These systems are used to remove non-dissolving impurities in various water and heating supply systems, cooling systems, and reverse water supply systems. The primary aim is to protect expensive equipment from corrosion and sediment buildup.
Specifications: The document lists various models of magnetic clarifiers with their respective dimensions, weight, hydraulic resistance, and carrying power. The models include ОММ 800/350-F, ОММ 1100/400-F, ОММ 2000/600-F, among others, with dimensions ranging from 800 mm to 9000 mm in height and carrying power from 20-35 m³/h to 90-170 m³/h.
Manufacturing Details: The magnetic systems are made from ferrite magnets, with options for neodymium magnets or combined magnetic systems. Custom manufacturing of clarifiers to meet specific customer requirements is available.
Key Features: The upper lid of the clarifiers is equipped with a turning device for ease of use. The document emphasizes the firm's experience and innovation in the field, highlighting over 30 years of expertise.
Contact Information: The document provides contact details for the Scientific and Manufacturing Firm PRODECOLOGIA, located in Rivne, Ukraine, including phone numbers and an email address for inquiries.
See more

Catalog excerpts

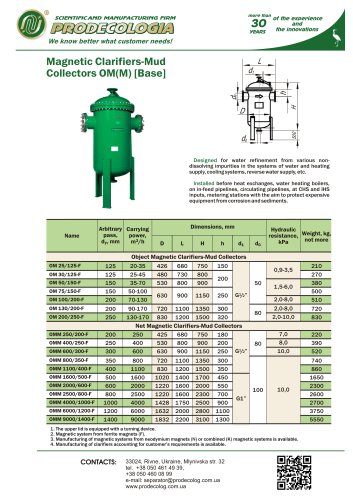

Magnetic Clarifiers-Mud Collectors ОМ(М) [Base], variant 3-1

more than SCIENTIFIC AND MANUFACTURING FIRM We know better what customer needs! Magnetic Clarifiers-Mud Collectors ОМ(М) [Base] Designed for water refinement from various nondissolving impurities in the systems of water and heating supply, cooling systems, reverse water supply, etc. Installed before heat exchanges, water heating boilers, on in-feed pipelines, circulating pipelines, at CHS and IHS inputs, metering stations with the aim to protect expensive equipment from corrosion and sediments. Arbitrary Carrying pass, power, dУ, mm m3/h Hydraulic resistance, Weight, kg, not more kPа Object Magnetic Clarifiers-Mud Collectors ОМ 25/125-F ОМ 30/125-F ОМ 50/150-F ОМ 75/150-F ОМ 100/200-F ОМ 130/200-F ОМ 200/250-F ОММ 250/200-F ОММ 400/250-F ОММ 600/300-F ОММ 800/350-F ОММ 1100/400-F ОММ 1600/500-F ОММ 2000/600-F ОММ 2500/800-F ОММ 4000/1000-F ОММ 6000/1200-F ОММ 9000/1400-F 1. The upper lid is equipped with a turning device. 2. Magnetic system from ferrite magnets (F). 3. Manufacturing of magnetic systems from neodymium magnets (N) or combined (K) magnetic systems is available. 4. Manufacturing of clarifiers accounting for customer’s requirements is available.

 Open the catalog to page 1

All PRODECOLOGIA SMF catalogs and technical brochures

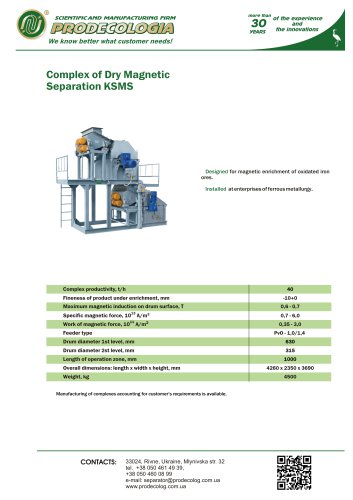

  1. KSMS
    KSMS

    1  Page

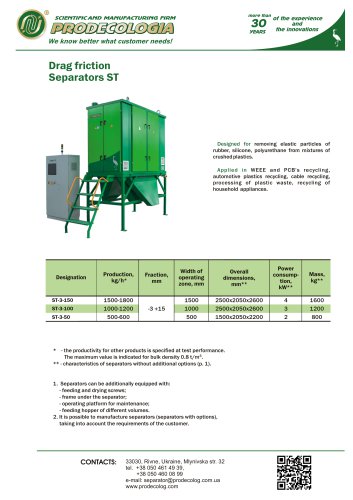

  2. ST-3
    ST-3

    1  Page

  3. Catalogue of equipment for glass industry
    Catalogue of equipment for glass industry

    10  Pages

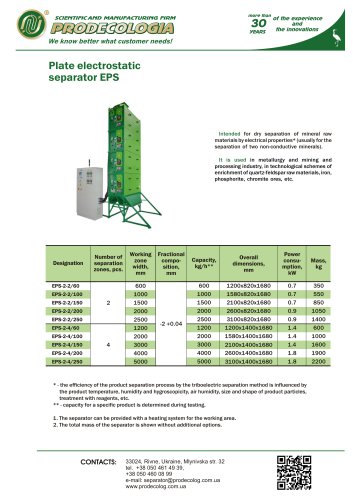

  4. Plate electrostatic separator EPS
    Plate electrostatic separator EPS

    1  Page

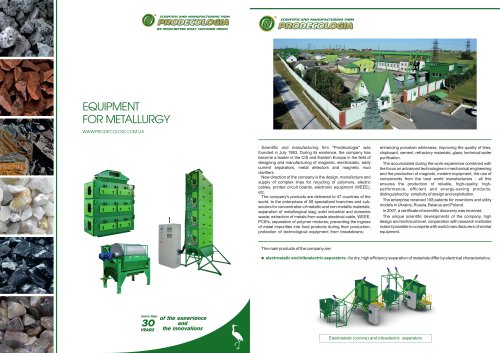

  5. Catalogue of Equipment for metallurgy
    Catalogue of Equipment for metallurgy

    6  Pages

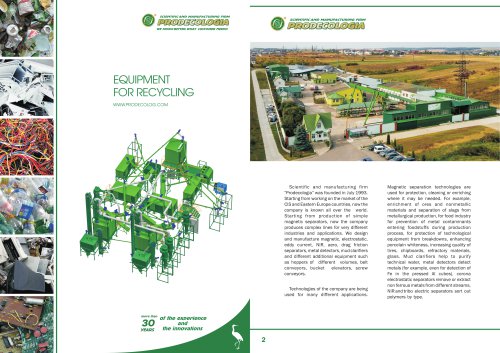

  6. Catalogue of Equipment for recycling
    Catalogue of Equipment for recycling

    6  Pages

  7. Booklet_NIR separator
    Booklet_NIR separator

    4  Pages

  8. Eddy current VS
    Eddy current VS

    4  Pages

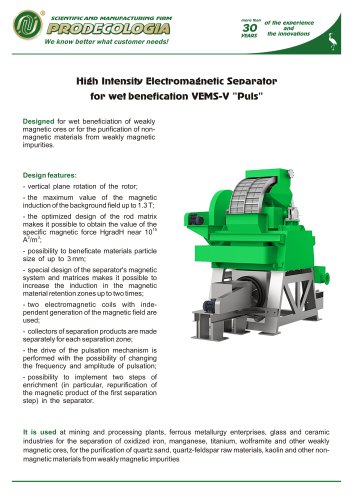

  9. Booklet_High Intensity Electromagnetic Separator for wet benefication VEMS-V "Puls"
    Booklet_High Intensity Electromagnetic Separator for wet benefication VEMS-V "Puls"

    2  Pages

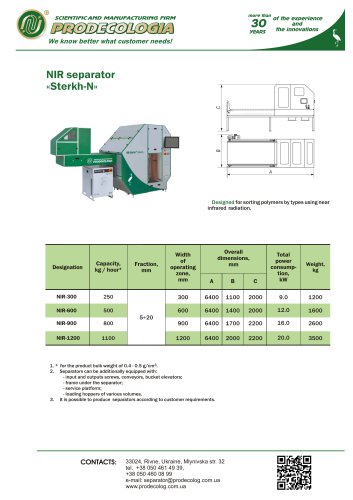

  10. NIR separator «Sterkh-N»
    NIR separator «Sterkh-N»

    1  Page

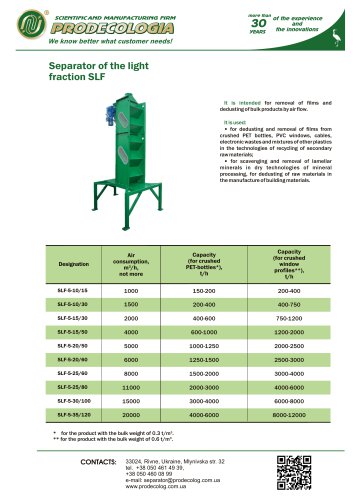

  11. Separator of the light fraction SLF
    Separator of the light fraction SLF

    1  Page

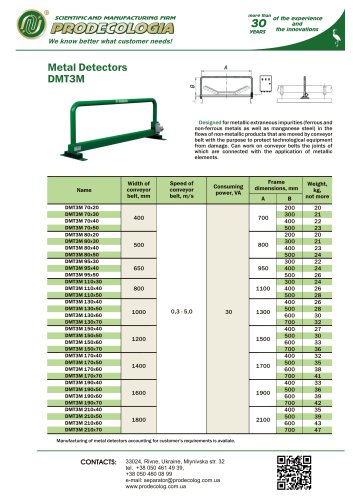

  12. Metal Detectors DMT3M
    Metal Detectors DMT3M

    1  Page

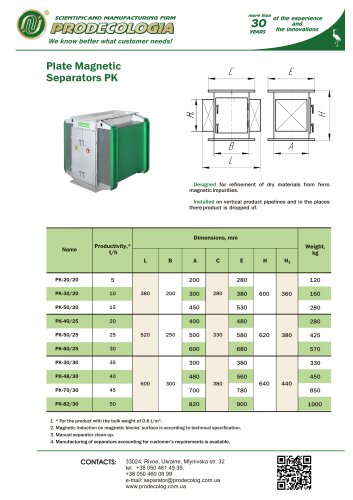

  13. Plate Magnetic Separators PK
    Plate Magnetic Separators PK

    1  Page

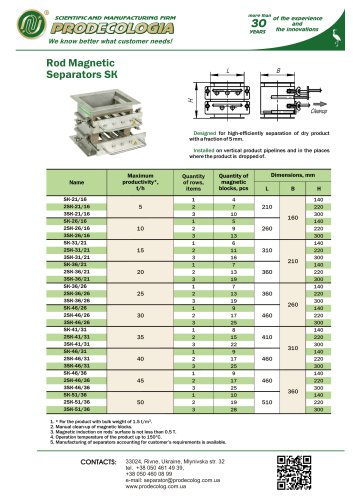

  14. Rod Magnetic Separators SK
    Rod Magnetic Separators SK

    1  Page

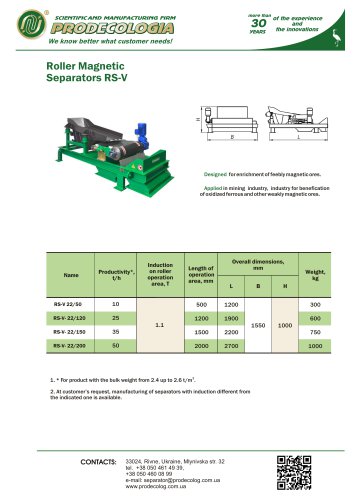

  15. Roller Magnetic Separators RS-V
    Roller Magnetic Separators RS-V

    1  Page

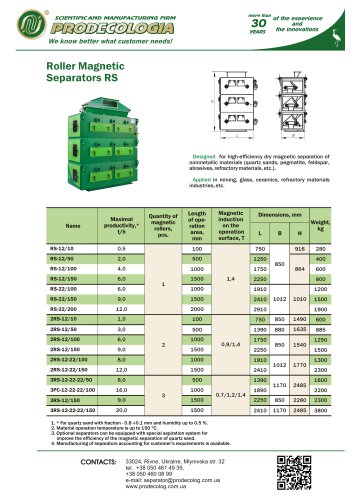

  16. Roller Magnetic Separators RS
    Roller Magnetic Separators RS

    1  Page

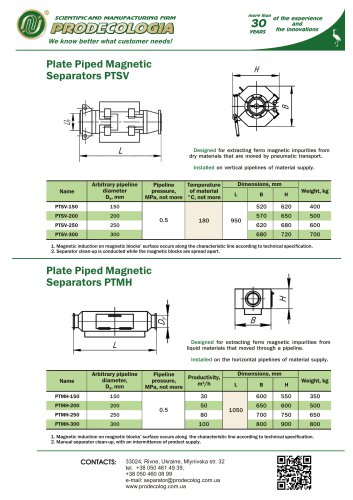

  17. Plate Piped Magnetic Separators PTSV PTMH
    Plate Piped Magnetic Separators PTSV PTMH

    1  Page

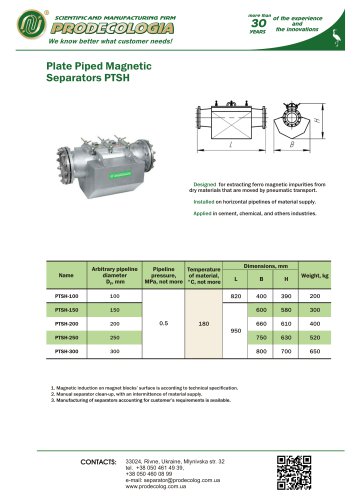

  18. Plate Piped Magnetic Separators PТSH
    Plate Piped Magnetic Separators PТSH

    1  Page

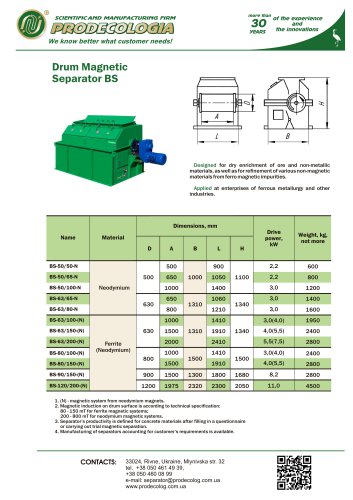

  19. BS 2
    BS 2

    1  Page

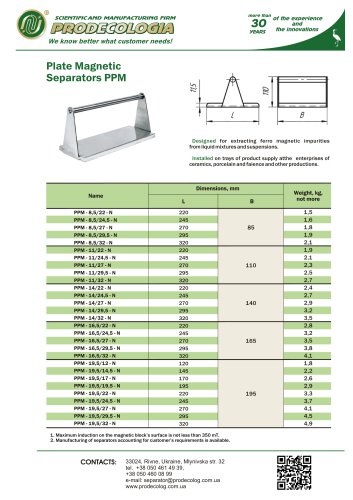

  20. Plate Magnetic Separators PPМ
    Plate Magnetic Separators PPМ

    1  Page

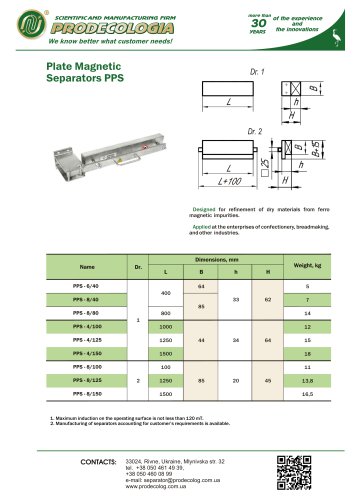

  21. Plate Magnetic Separators PPS
    Plate Magnetic Separators PPS

    1  Page

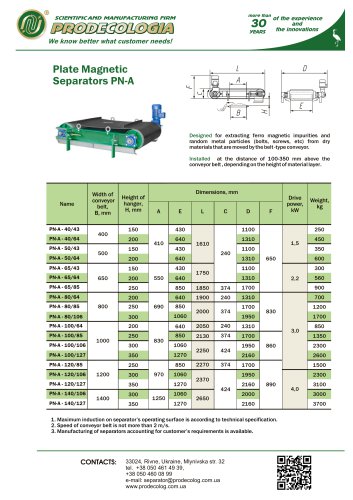

  22. Plate Magnetic Separators PN-A
    Plate Magnetic Separators PN-A

    1  Page

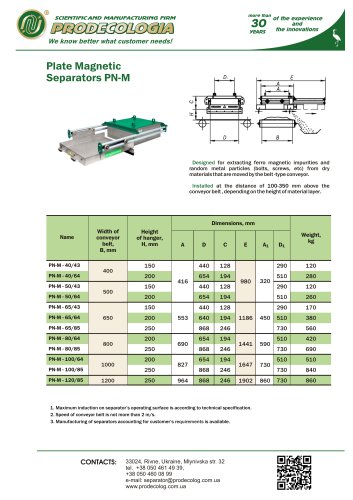

  23. Plate Magnetic Separators PN-М
    Plate Magnetic Separators PN-М

    1  Page

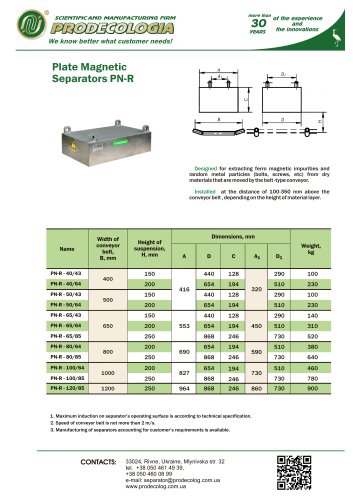

  24. Plate Magnetic Separators PN-R
    Plate Magnetic Separators PN-R

    1  Page

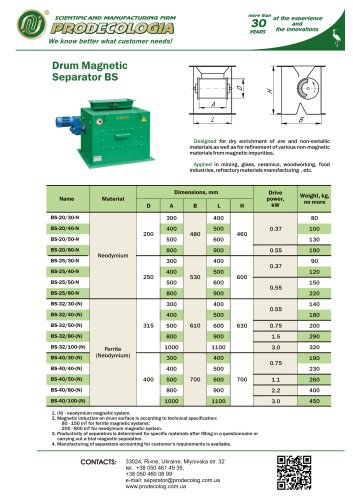

  25. BS 1
    BS 1

    1  Page

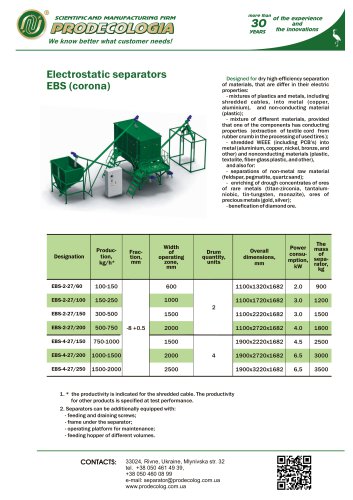

  26. Electrostatic separators EBS (corona)
    Electrostatic separators EBS (corona)

    1  Page

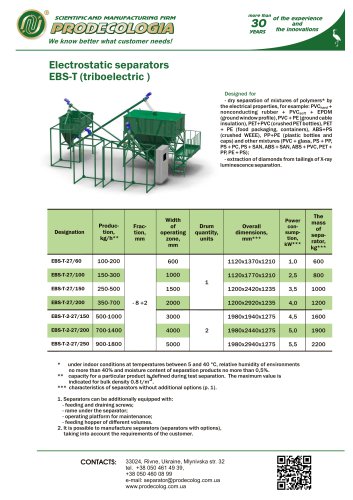

  27. EBS-T (triboelectric)
    EBS-T (triboelectric)

    1  Page

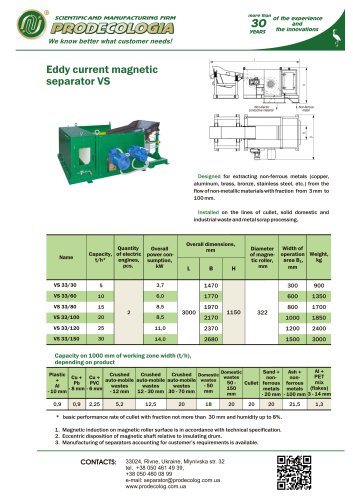

  28. Eddy Current VS
    Eddy Current VS

    1  Page

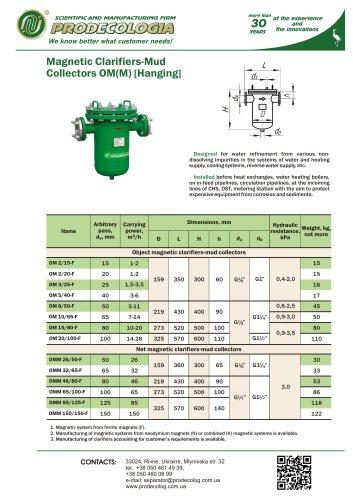

  29. Magnetic Clarifiers-Mud Collectors ОМ(М) [Hanging], variant 1
    Magnetic Clarifiers-Mud Collectors ОМ(М) [Hanging], variant 1

    1  Page

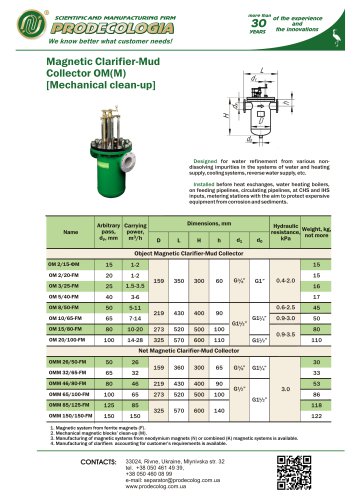

  30. Magnetic Clarifier-Mud Collector Mechanical clean-up ОМ(М) [ ], variant 2
    Magnetic Clarifier-Mud Collector Mechanical clean-up ОМ(М) [ ], variant 2

    1  Page

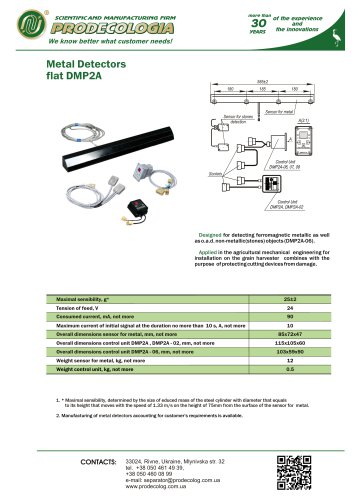

  31. Metal Detectors flat DMP2А
    Metal Detectors flat DMP2А

    1  Page

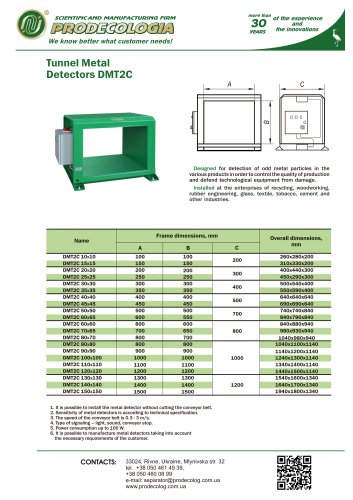

  32. Tunnel Metal Detectors DMT2С
    Tunnel Metal Detectors DMT2С

    1  Page

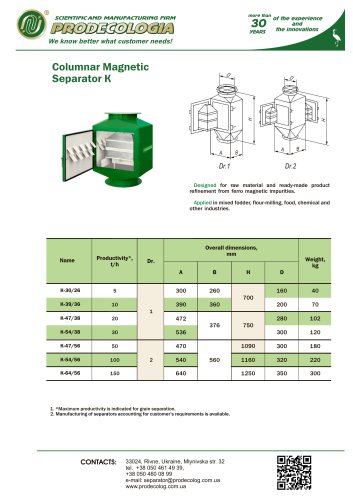

  33. Columnar Magnetic Separator К
    Columnar Magnetic Separator К

    1  Page

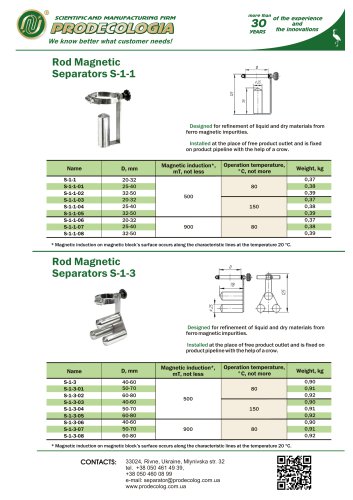

  34. Rod Magnetic Separators S-1-1 S-1-3
    Rod Magnetic Separators S-1-1 S-1-3

    1  Page

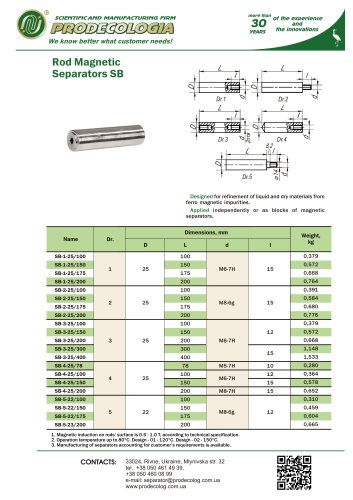

  35. Rod Magnetic Separators SB
    Rod Magnetic Separators SB

    1  Page

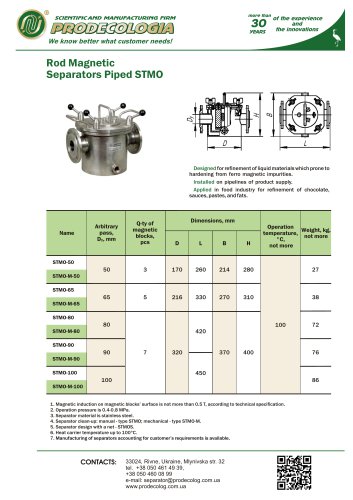

  36. Rod Magnetic Separators Piped SТМО
    Rod Magnetic Separators Piped SТМО

    1  Page

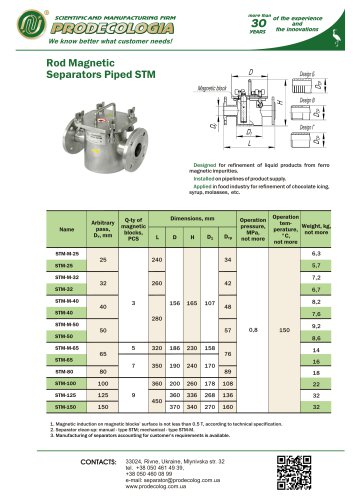

  37. Rod Magnetic Separators Piped SТМ
    Rod Magnetic Separators Piped SТМ

    1  Page

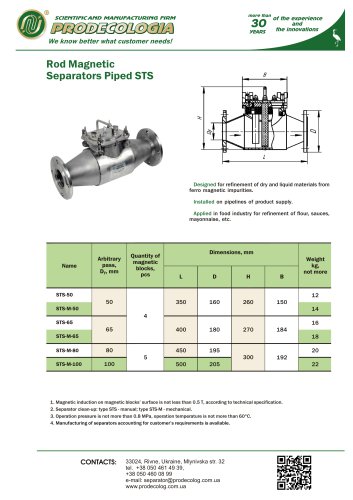

  38. Rod Magnetic Separators Piped STS
    Rod Magnetic Separators Piped STS

    1  Page

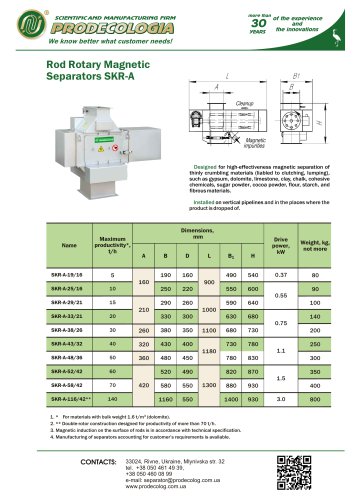

  39. Rod Rotary Magnetic Separators SKR-А
    Rod Rotary Magnetic Separators SKR-А

    1  Page

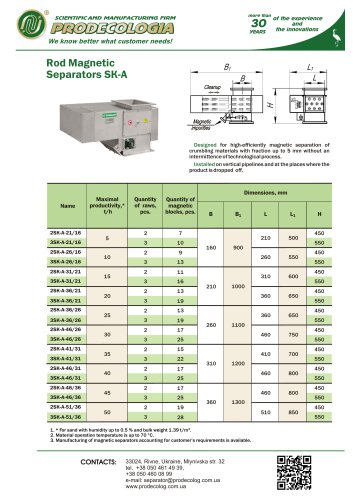

  40. Rod Magnetic Separators SK-A
    Rod Magnetic Separators SK-A

    1  Page

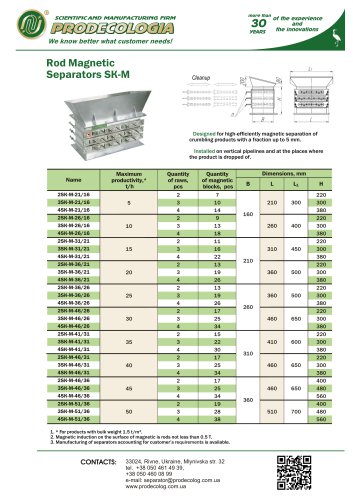

  41. Rod Magnetic Separators SK-M
    Rod Magnetic Separators SK-M

    1  Page

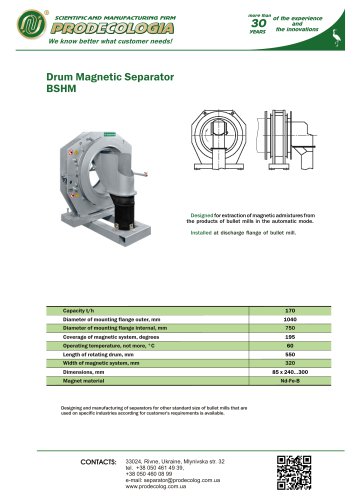

  42. Drum Magnetic Separator BSHM
    Drum Magnetic Separator BSHM

    1  Page

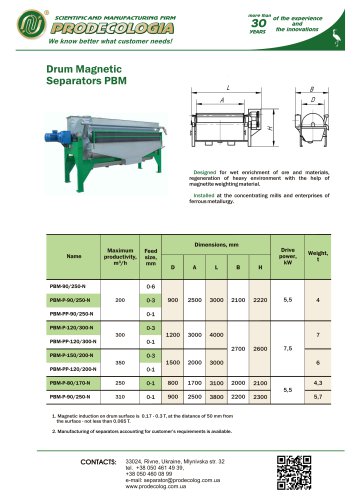

  43. Drum Magnetic Separators PBM
    Drum Magnetic Separators PBM

    1  Page

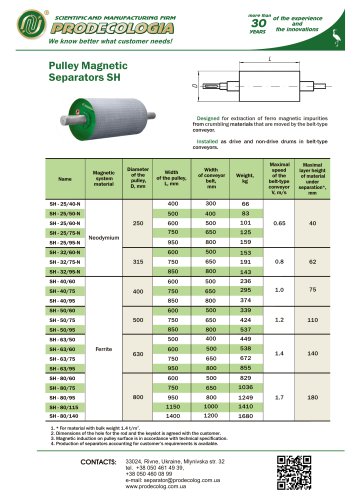

  44. Pulley Magnetic Separators SH
