M12

1 / 3 PagesView full catalog

M12

Product catalog summary

Technical Characteristics

Shell Material: Brass / Zinc
Protection Level: IP67
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100mΩ
Applicable Temperature: -20℃ to +80℃
Contact Material: Copper Alloy
Housing Material: Nylon PA66
Molding Material: PVC / TPU
Mating and Unmating Force: ≥500

Electrical Features

3PIN/4PIN: 4A, 250V a.c./d.c.
5PIN/8PIN/12PIN/17PIN: 1.5A, 60V a.c./d.c.; 2A, 30V a.c./d.c.
8PIN: 60V a.c./d.c.
5PIN: 4A, 250V a.c./d.c.
8PIN: 50V a.c./d.c.
5PIN: 12A, 63V a.c./d.c.
4PIN: 4A, 630V a.c./d.c.

Part Numbering System

Pin Number: 03/04/05/08/12/17
Thread Size: M12/M16/PG9
Connector & Pin Gender: P: Male Pin, S: Female Pin
Assembly Type: S: Solder, D: Dip
Mounting Type: A: Front/SUS316, B: Rear/SUS316, F: Front Mount, H: Rear Mount
Code Types: A/B/D/K/L/S/T/X/Y
Pin Angle: R: 90, L: 180
Shield: 0: Non Shielding, S: Shielding
Key Angle: A1: 45, A2: 90

Catalog excerpts

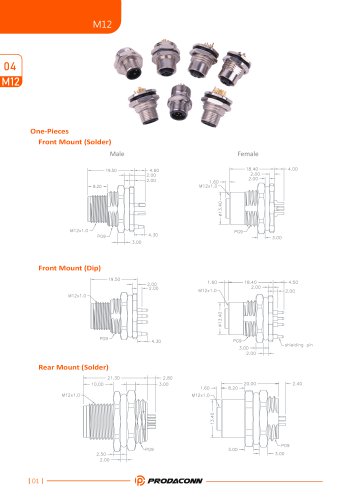

Front Mount (Solder) Rear Mount (Solder)

Open the catalog to page 1

M12 04ICTH Panel Cut-Out Technical Characteristics • Shell material : Brass / Zinc • Housing material : Nylon PA66 • Contact : Copper Alloy • Mating and Unmating force : >500

Open the catalog to page 2

Code types:A/B/D/K/L/S/T/X/Y Connector&Pin Gender: P:Male Pin S:Female Pin -Assembly Type: Mounting Type: — A:Front/SUS316 B:Rear/SUS316 F:Front Mount H:Rear Mount

Open the catalog to page 3

All Prodaconn Technology Co., Ltd catalogs and technical brochures

Archived catalogs

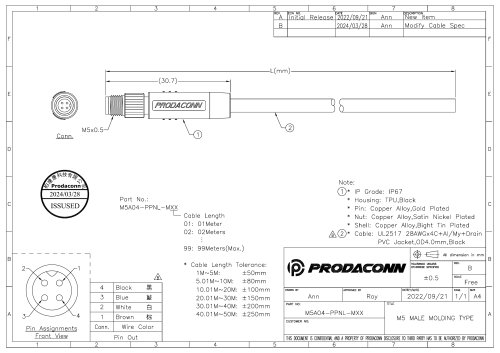

M5A04-PPNL-M01
