Zonotip (+)
4Pages

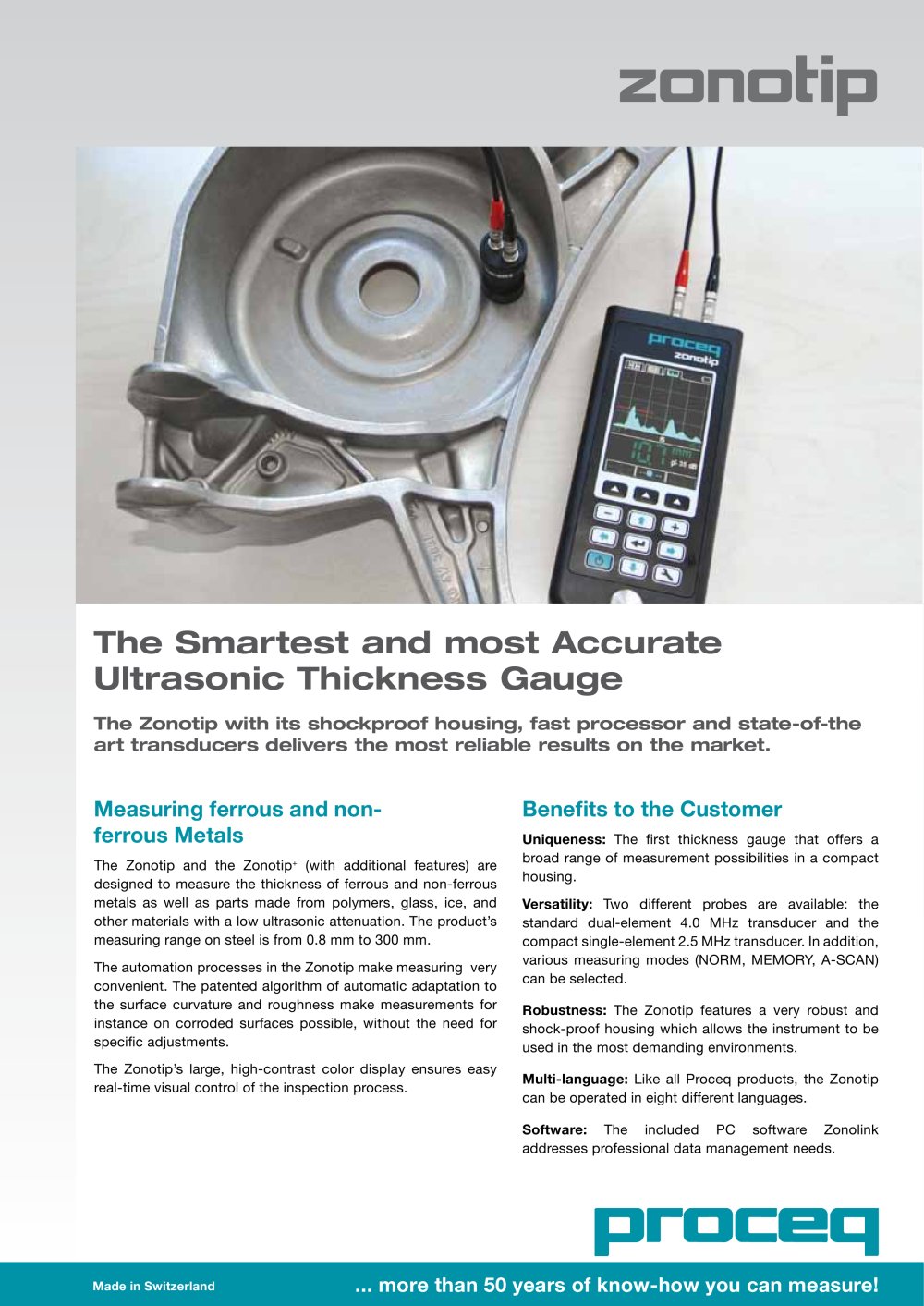

zonotip The Smartest and most Accurate Ultrasonic Thickness Gauge The Zonotip with its shockproof housing, fast processor and state-of-the art transducers delivers the most reliable results on the market. Measuring ferrous and non-ferrous Metals The Zonotip and the Zonotip+ (with additional features) are designed to measure the thickness of ferrous and non-ferrous metals as well as parts made from polymers, glass, ice, and other materials with a low ultrasonic attenuation. The product's measuring range on steel is from 0.8 mm to 300 mm. The automation processes in the Zonotip make measuring very convenient. The patented algorithm of automatic adaptation to the surface curvature and roughness make measurements for instance on corroded surfaces possible, without the need for specific adjustments. The Zonotip's large, high-contrast color display ensures easy real-time visual control of the inspection process. Uniqueness: The first thickness gauge that offers a broad range of measurement possibilities in a compact housing. Versatility: Two different probes are available: the standard dual-element 4.0 MHz transducer and the compact single-element 2.5 MHz transducer. In addition, various measuring modes (NORM, MEMORY, A-SCAN) can be selected. Robustness: The Zonotip features a very robust and shock-proof housing which allows the instrument to be used in the most demanding environments. Multi-language: Like all Proceq products, the Zonotip can be operated in eight different languages. Software: The included PC software Zonolink addresses professional data management needs. proceq . more than 50 years of know-how you can measure! Made in Switnerland

zonotip Key Features of Zonotip Solid body of light, shock-proof plastic Suitable for difficult weather conditions (frost- and heat-proof) Large high-contrast color display ensures visual control of the inspection process Memory for 50'000 measurements 4.0 MHz dual-element transducer Automatic adaptation to the surface curvature and roughness Automatic logging of max and min values while scanning the object Measuring of the ultrasonic pulse velocity on a sample with known thickness Color, sound and vibration indication when set limits are exceeded USB connection to PC for data transfer 8...

zanatip Ordering Information Part No.: 790 10 000 Part No.: 790 20 000 Zonotip unit consisting of: Indicating device with calibration Zonotip+ unit consisting of: Indicating device with calibration sample, transducer 4.0 MHz, transducer cable 2pol 1.2 m, sample, transducer 4.0 MHz, transducer cable 2pol 1.2 m, couplant, battery charger with USB cable, carrying strap, data transducer 2.5 MHz, transducer cable 1pol 1.2 m, couplant, battery carrier with software, documentation, protective pouch, carrying charger with USB cable, carrying strap, data carrier with software, case documentation,...
