OxyTrans LC OEM

Product catalog summary

Overview
The OxyTrans LC OEM is a two-wire, loop-powered oxygen transmitter designed for accurate and economical measurement of oxygen at trace and percentage levels. It is suitable for various industrial applications.

Specifications

Measuring Ranges: 0-100 ppm, 0-1000 ppm, 0-10,000 ppm, and 0-25% O2.
Calibration: Can be calibrated with a calibration gas or air.
Accuracy: +/- 2% FSD at constant temperature, +/- 5% FSD from 0 to 50°C.
Resolution: 0.1 ppm for 0-100 ppm, 1 ppm for 0-1000 and 0-10,000 ppm, 0.1% for percentage range.
Response Time: 90% FSD at 25°C, varying from 10 to 45 seconds depending on the range.
Operating Temperature: 0 - 50°C.
Pressure: 0.1 - 1 bar.
Signal Output: 4-20 mA/DC.
Alarm Value: Standard at 3.8 mA, optional at 23 mA.
Voltage: 10-35 VDC with reverse voltage protection up to 40VDC.
Load: Typically 470 Ohm, maximum 750 Ohm.
Display: 6-digit alphanumeric with bar graph.
Housing: IP65 rated.
Size and Weight: 120 x 160 x 65 mm, 0.3 kg.

Features

Compact and inexpensive design.
Long operating life of the sensor.
IP65 enclosure for protection.
Reverse voltage protection and temperature compensation.
No cross-sensitivity to hydrogen gas.
Flow-through measuring cell made of synthetic material.

Applications
The OxyTrans LC is applicable in nitrogen plants, gas manufacturing, metallurgical industries, chemical industry, heat treating, and bright annealing processes.

Catalog excerpts

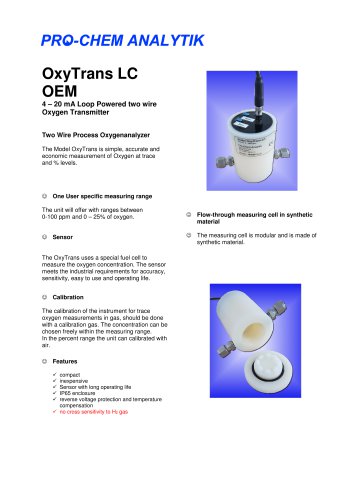

OxyTrans LC OEM 4 – 20 mA Loop Powered two wire Oxygen Transmitter Two Wire Process Oxygenanalyzer The Model OxyTrans is simple, accurate and economic measurement of Oxygen at trace and % levels. ☺ One User specific measuring range The unit will offer with ranges between 0-100 ppm and 0 – 25% of oxygen. ☺ Sensor The OxyTrans uses a special fuel cell to measure the oxygen concentration. The sensor meets the industrial requirements for accuracy, sensitivity, easy to use and operating life. ☺ Calibration The calibration of the instrument for trace oxygen measurements in gas, should be done with a calibration gas. The concentration can be chosen freely within the measuring range. In the percent range the unit can calibrated with air. ☺ Features compact inexpensive Sensor with long operating life IP65 enclosure reverse voltage protection and temperature compensation no cross sensitivity to H2 gas ☺ Flow-through measuring cell in synthetic material ☺ The measuring cell is modular and is made of synthe

Open the catalog to page 1

Response time Signal output Alarm value oxygen sensor : 10 - 35 VDC reverse voltage protection up to 40VDC : 6 Digits, alphanumeric with bar graph : Micro-Fuell Cell, ( uber alles ) Typical • different sensors available • 4 different Measuring ranges • synthetic material Cell block Applications are found in • Nitrogen plants • Metallurgical industries • Chemical industry • heat treating and bright annealing Neuer Bruchweg 1,46509 Xanten

Open the catalog to page 2

All Pro-Chem-Analytik GmbH & Co. KG catalogs and technical brochures

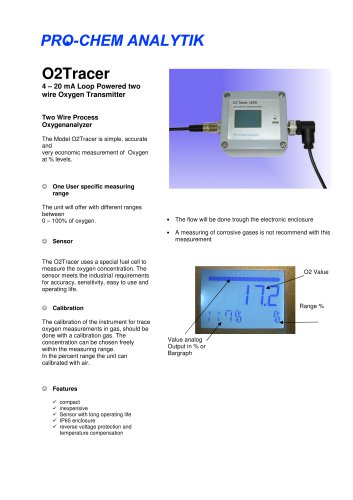

O2Tracer
2 Pages

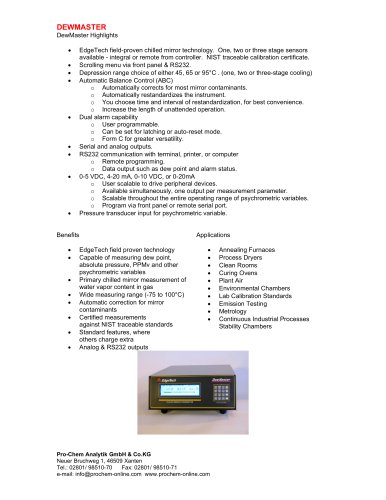

DEWMASTER
