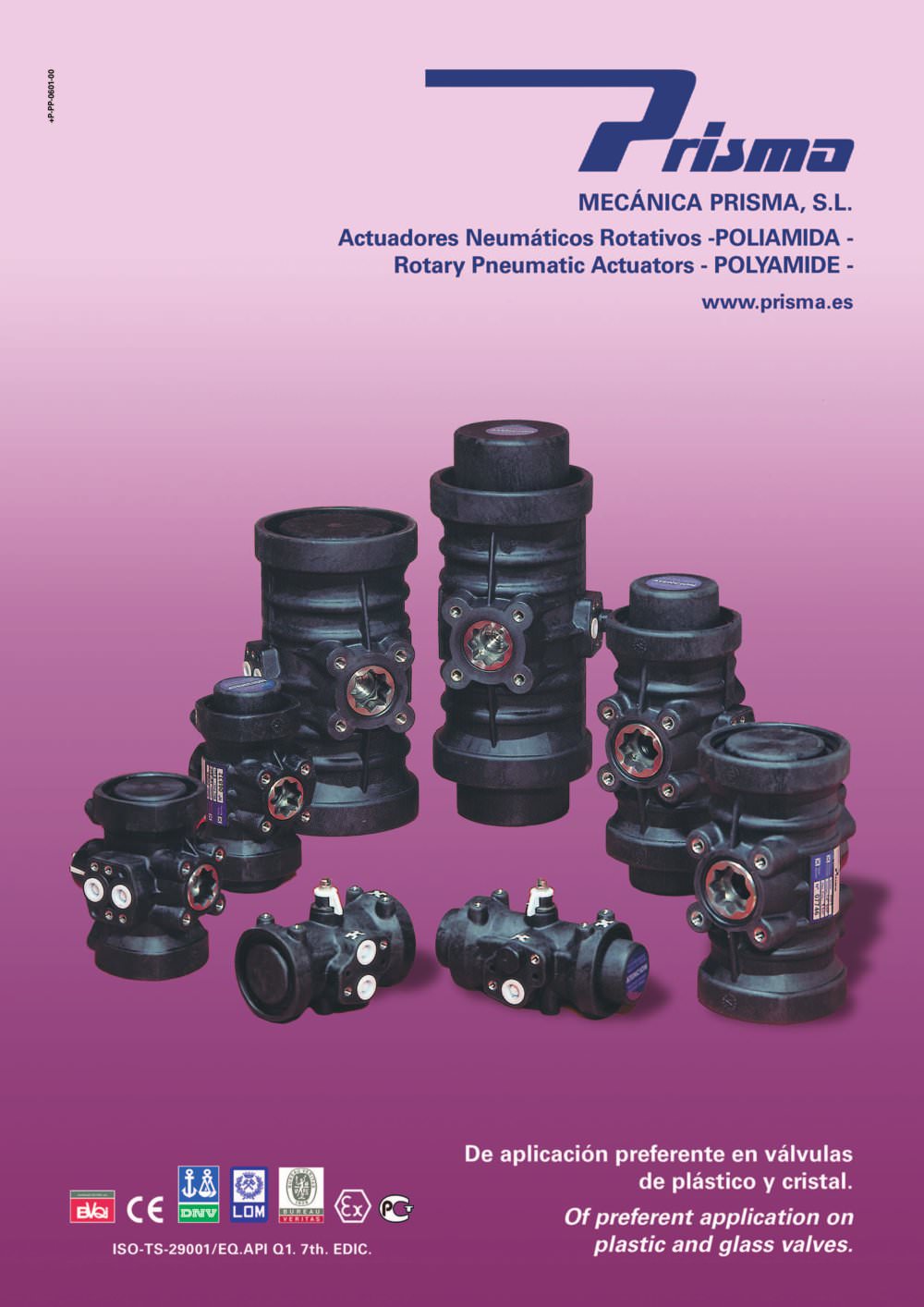

Rotatory Pneumatic Actuators - Polyamide
Rotatory Pneumatic Actuators - Polyamide
Pneumatic actuators made from industrial polyamide are designed for use with glass and composite valves. They are lightweight, highly resistant to corrosion, and silicone-free. The operating temperature range is from -32ºC to 90ºC, suitable for marine and underwater installations, and can be powered by air, water, or non-aggressive fluids up to 8 bar pressure.
The actuators are available in spring return and double acting models, with torques ranging from 17 Nm to 165 Nm at 6 bar. They comply with ISO-5211, DIN-3337, VDE-3845, and NAMUR norms, and meet the PED Directive 97-23-EC and ATEX Directive 94-9-EC.
Equipped with limit switches, solenoid valves, positioners, and manual overrides, these actuators offer a broad range of couplings for most valves. They are used in water treatment, agrochemical industries, textiles, enology, pulp and paper, refineries, and irrigation automation.
Models such as PPW, PP00, PP10, and PP20 are detailed with specific cycle times, weights, and capacities. Tables provide double acting and spring return torques for different bar pressures, showing initial and final torque values.
Constructed from polyamide, polyarilamide, and stainless steel, with components like spring clips, O-rings, pistons, and cylinders. Some parts are cataphoresis-coated for additional protection.
Ideal for automating ball, butterfly, and plug valves in various industrial applications.
Rotary pneumatic actuators are made from aluminum, polyamide, stainless steel, and designed for high temperatures. They include details on air pressure, spring return, and double acting mechanisms with torque values from 43.7 to 116.5 psi.
Details on shaft configurations for single effect (spring return) and double effect (double acting) actuators, with options for solenoid NAMUR norm and other mechanical configurations.
Certified under ISO-TS-29001, ISO-9001-2000, and IEC-61508 SIL-2. Product approvals for ships, offshore, marine machinery, and cryogenic services. Compliance with European Directives 94-9-CE-ATEX and 97-23-CE-PED, and GOST certification for Russia.
Ensure compliance with standards and certifications for optimal performance and safety in petroleum, petrochemical, and natural gas industries.
Catalog excerpts
ACTUADORES NEUMTICOS DE PLASTICO INDUSTRIAL PNEUMATIC ACTUATORS IN INDUSTRIAL POLYAMIDE Para automatizar vlvulas de bola, mariposa o macho cnico. To pilot ball, butterfly and plug valves. - Diseᳱo especial para vlvulas de plstico o cristal. Ligeros de peso y muyresistentes a la corrosiᡳn. Exentos de silicona. Temperatura normal de funcionamiento: -32C hasta 90ںC. - Special design to fit to glass and composite valves. Light weight and very resistant to corrosion. Silicone free. Normal working temperature: -32 C to 90ںC. - Modelos de simple y doble efecto, con pares de 17 Nm a 165 Nm a 6 bar. -...
Open the catalog to page 3
TAPA DOBLE EFECT O > POLIAMIDA + FVDOUBLE ACTING CAP POLYAMIDE + F G > JUNTA T RICA TAPA N.B.R > ANILLO SEGURIDADACERO INOXIDABLESPRING CLIPSTAINLESS STEE > POLIAMID A POSITION INDICATO R POLYAMID E > POLIACETA L PISTON GUIDEPOLYACETALANILLO GUIAPOLIACETA > TAPA SIMPLE EFECT O > POLIAMIDA + FVSPRING RETURN CAPPOLYAMIDE + F G > ACERO INOX AISI-30 3 SHAFTAISI-303 STAINLESS STEE L PI O N > ALEACI ѓ N ALUMINIO (5) GEARALUMINIUM ALLOY (5 ) > ACERO INOXIDABLETHREAD INSERT > S STAINLESS STEE L (2 ) RECUBIERTO POR CATAFORESIS . > COVERED BY CATAPHORESIS . (4 ) CANTIDAD VARIABLE, CONSULTAR TABLAS PARES...
Open the catalog to page 9
TAPA DOBLE EFECT O > POLIAMIDA + FVDOUBLE ACTING CAP POLYAMIDE + F G > JUNTA T RICA TAPA N.B.R > ANILLO SEGURIDADACERO INOXIDABLE SPRING CLIPSTAINLESS STEE > POLIAMID A POSITION INDICATO R POLYAMID E > POLIACETA L PISTON GUIDEPOLYACETALANILLO GUIAPOLIACETA > TAPA SIMPLE EFECT O > POLIAMIDA + FVSPRING RETURN CAPPOLYAMIDE + F G > ACERO INOX AISI-30 3 SHAFTAISI-303 STAINLESS STEE L PI O N > ALEACI ѓ N ALUMINIO (5) GEARALUMINIUM ALLOY (5 ) > ACERO INOX THREAD INSERT > S STAINLESS STEE L (2 ) RECUBIERTO POR CATAFORESIS . > COVERED BY CATAPHORESIS . (4 ) CANTIDAD VARIABLE, CONSULTAR TABLAS PARES SIMPLE...
