1. Product Overview

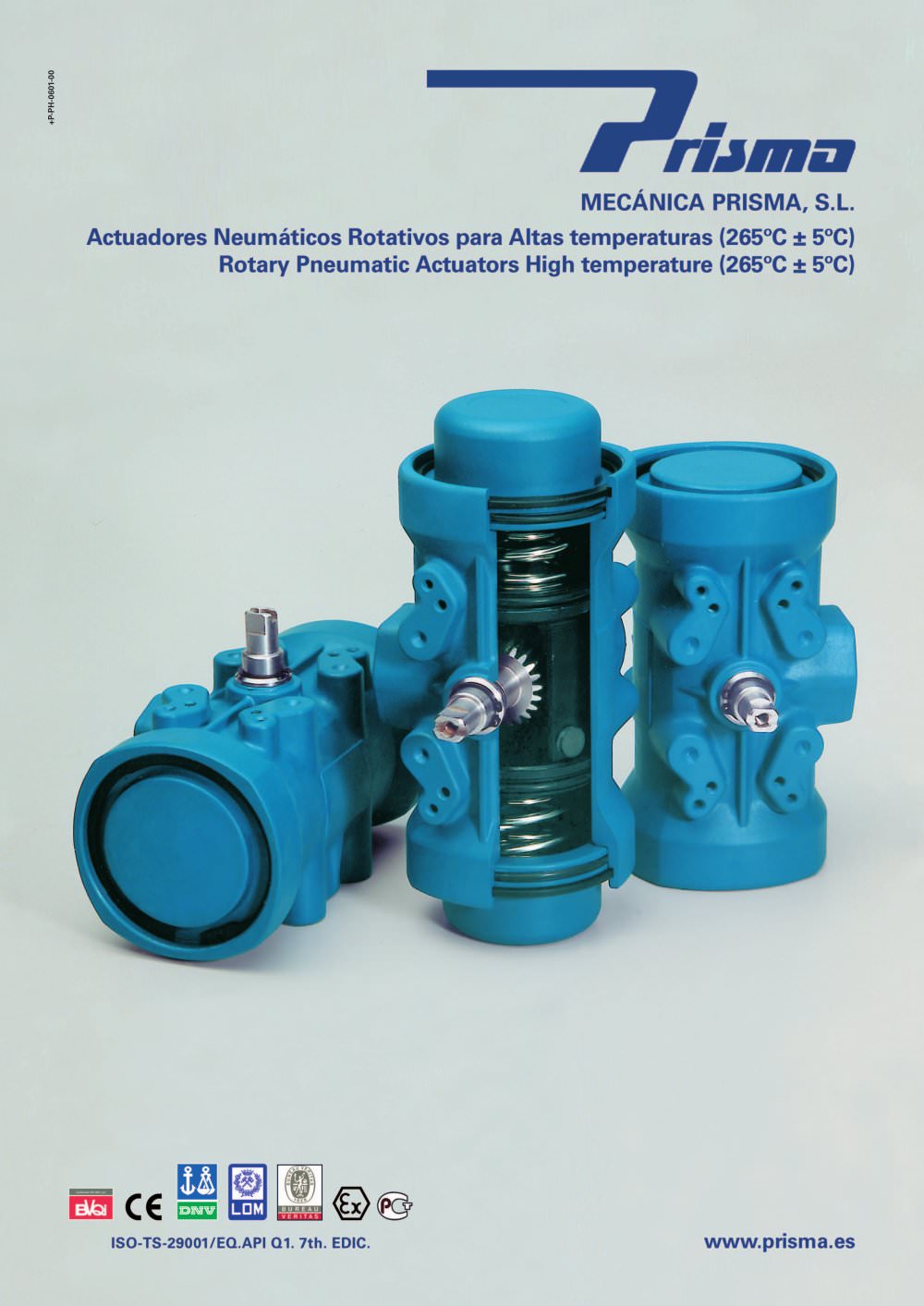

The document describes the PH30 and PH30S pneumatic actuators designed for high-temperature applications, specifically for piloting fire safety systems. The PH30 model is double-acting, while the PH30S is spring-return (single-acting). Both models feature caps secured with Allen screws.

2. Components and Materials

The actuator is composed of various parts, each specified with quantity and material:

• Steel spring clips and safety rings
• Aluminium alloy caps (double-acting or spring-return)
• Steel piston and stainless steel washers
• Piston guide and guide rings made of PTFE with graphite
• Viton® O-rings for sealing
• Stainless steel springs set
• Stainless steel shafts (AISI-303) and aluminium gears
• Allen screws made of AISI-304 stainless steel

Surface treatments include bicromated steel, cataphoresis coating, and XYLAN® coating for corrosion resistance and durability.

3. Technical Specifications

• Angle of Rotation: 0° to 90° with ±2° adjustment
• Operating Pressure: Up to 8 bar maximum
• Operating Temperature: -32°C to 265°C
• Compliance: ISO-5211, VDE-3845, NAMUR standards
• Fluid Compatibility: Air and other non-aggressive fluids; silicone-free

4. Dimensions and Models

Four models are detailed: PH00/PH00S, PH10/PH10S, PH20/PH20S, and PH30/PH30S. Each model has specific dimensions (in mm), mounting flange sizes (ISO standards), and weights (kg and lbs). For example, the PH30 model weighs 3.72 kg (8.2 lbs) and has a flange size F10-F07.

5. Performance Data

Cycle Times: Provided in seconds for opening and closing at 6 bar without resistant torque. For instance, PH30 has 0.6 seconds to open and close.

Air Consumption: Values are given and should be multiplied by actual working pressure to estimate real consumption.

Torque Values: Detailed for double-acting and spring-return versions at pressures of 5, 6, and 7 bar (72.8, 87.4, 102 psi). Torque is given in Nm and Lb.in for initial and final positions. For example, PH30 double-acting torque ranges from 388.3 Nm initial to 550.1 Nm final at 5 bar.

Spring Torque: Number of springs per side varies by model (e.g., PH30 uses 7 springs).

6. Installation and Standards

The actuators conform to ISO-5211 for mounting, VDE-3845, and NAMUR standards for solenoid interface and pneumatic connections. The shaft detail and mounting holes are specified for compatibility with standard valves and accessories.

7. Remarks and Recommendations

• Actuators are designed for use with air and non-aggressive fluids only.
• Silicone-free construction ensures compatibility with sensitive applications.
• Suitable for high-temperature environments up to 265°C.
• Recommended for fire safety pneumatic control systems.

Summary

The PH30 and PH30S pneumatic actuators are robust, high-temperature capable devices designed for precise valve control in safety-critical applications. Their construction uses corrosion-resistant materials and coatings, ensuring durability. Compliance with international standards facilitates integration. Detailed torque, cycle time, and consumption data support proper sizing and operation planning.
