PRISMA

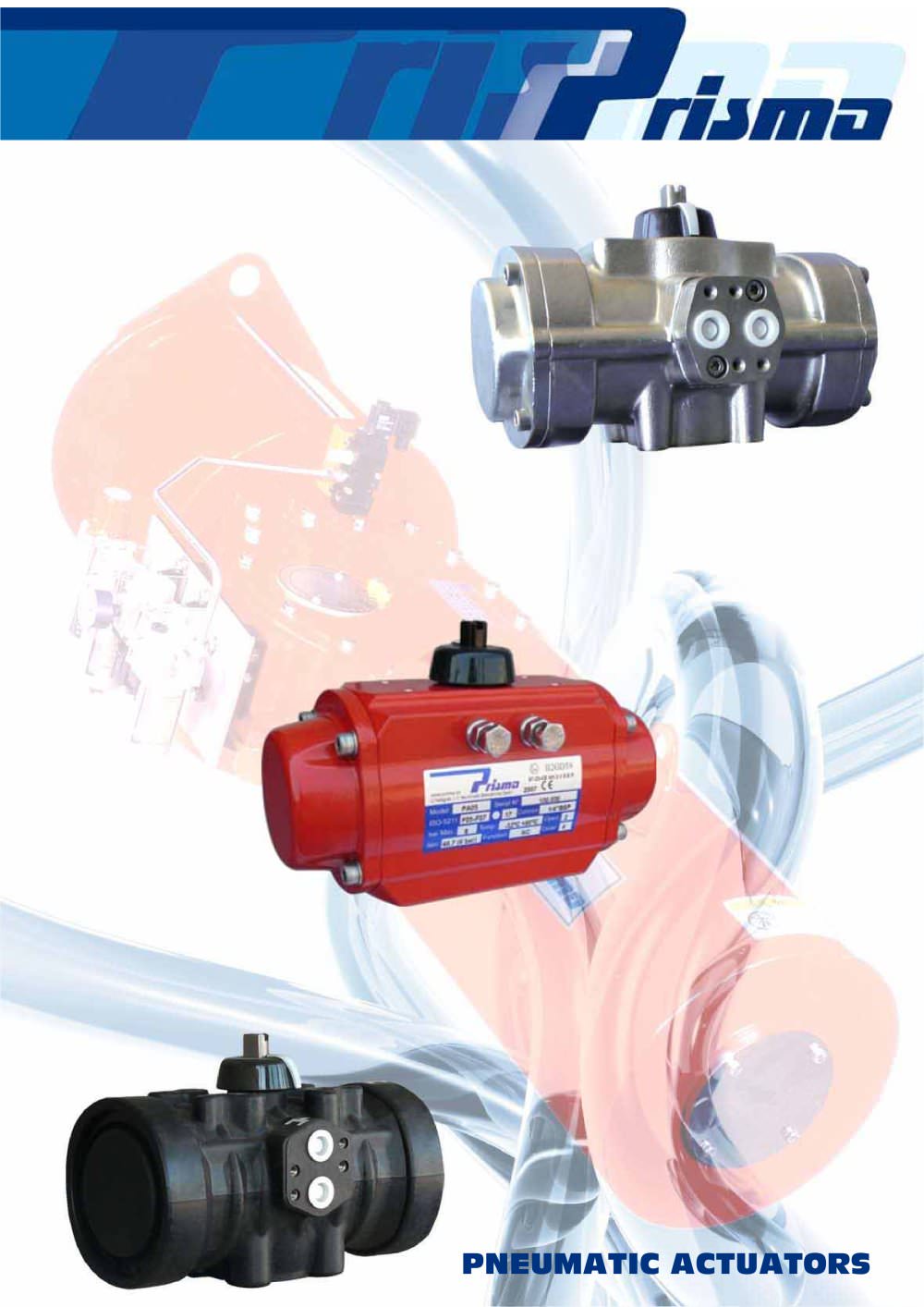

General Catalogue

General Catalogue

Product catalog summary

Company Overview
MECÁNICA PRISMA, established in 1980, is a global leader in pneumatic actuators, focusing on quality improvement and customization. It exports 65% of its production to over 45 countries.

Certifications
PRISMA holds certifications such as ISO 9001-2000, ISO-TS-29001, API Q1, and complies with international standards like ISO, DIN, NAMUR, VDE, VDI, ATEX, CE, DNV, PCT, SIL2.

Product Ranges

Aluminium Pneumatic Actuators: Torque range of 17Nm to 5000Nm, corrosion-resistant coatings, suitable for various applications.
Polyamide Pneumatic Actuators: Lightweight, corrosion-resistant, suitable for diverse environments.
Stainless Steel Pneumatic Actuators: High durability and resistance for harsh conditions.
Heavy Duty Pneumatic Actuators: For demanding applications with high torque needs.

Technical Features
Available in double acting and spring return models, with torque from 17Nm to 65,000Nm at 6 Bar, suitable for sectors like chemical, nuclear, electronics, automotive, and more.

Specifications

Aluminium Actuators: 0º-90º or 0º-180º rotation, corrosion-resistant coatings, spring security system, stroke adjustments.
Polyamide Actuators: High resistance to corrosion and impacts, stroke adjustment capabilities.
Stainless Steel Actuators: Superior corrosion resistance for extreme environments.

Mounting and Compatibility
Compatible with any valve type, conforming to ISO-5211 and DIN-3337 for easy integration.

Operating Conditions
Operates with air or non-aggressive fluids up to 8 bar, temperature range of -32ºC to +90ºC, with extended options.

Applications
Used in industries like chemical, nuclear, electronics, automotive, food and beverage, pharmaceutical, and more.

Special Actuators
Specialized options for 180º rotation, high/low temperatures, fail-open, reverse operation, and stainless steel.

Technical Document Summary

1. Specifications:
Actuators available in double acting and spring return models, torque ranges from 17Nm to 470Nm at 6 bar, suitable for marine and corrosive environments.

2. Procedures:
Equipped with limit switches, solenoid valves, positioners, and manual overrides, conforming to ISO-5211, DIN-3337, VDI/VDE-3845, and NAMUR standards.

3. Standards and Certifications:
Complies with DEP 97-23-CE, ATEX 94-9-CE, SIL-2 directives, certified for explosive environments.

4. Recommendations:
For air pressure less than 6 bar, spring positioning is recommended. Suitable for industrial applications like food and beverage, irrigation, and fishing.

5. Key Features:
Corrosion-resistant construction, 0º-90º rotation angle, external stroke adjustments, preloaded spring cartridges with security system.

6. Technical Data:
Includes air torque values, cycle times, weights, capacities, dimensions, and material specifications.

Overview: Detailed specifications and features of pneumatic actuators for valve automation, including models, cycle times, weights, capacities, and operating conditions.

Specifications: Double acting and spring return types, torque range from 36Nm to 230Nm, 180º rotation, suitable for high and low temperatures.

Models and Performance: Lists models with specific cycle times, weights, capacities, and torque values at different pressures.

Materials and Construction: Made from alloy steel, stainless steel, and engineering plastics, designed for durability and performance.

Special Features: Includes position indicators, stroke adjustments, spring security system, limit switches, solenoid valves, and manual overrides.

Applications: Used in fire-fighting systems, cryogenic sectors, and emergency valve operations.

Additional Options: Options for shaft materials, mounting kits, and electric actuators for automation solutions.

Contact Information: Includes contact details for MECÁNICA PRISMA, S.L.

Catalog excerpts

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial Black", sans-serif; } .font1 { font:4.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:4.00pt "Impact", sans-serif; } .font3 { font:4.00pt "Palatino Linotype", serif; } Hjnieaj |quipai SUOjUSLIIp Lj 鮗 s|eujiEui pue Aiqui&sesiQ SfiUPJ |j SUOISlHUJjp vj ׯ|Fijaieiu pue rt|qtua««j{] cuirij

Open the catalog to page 2

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 3

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 4

CATAPHORESIS COATED Wearing strips in pistons, allowing low friction and long life of the actuator. Shaft End according to: VDI/VDE 3845 (NAMUR). > With external and internal coating (CATAPHORESIS + RILSAN or POLYURETHANE (caps)), double corrosion resistance. Standard for all models except PAW. The two independent external travel stop adjustment bolts can adjust +2 / -5ں in both open and close directions. > Pneumatic connection versatility: 1/4BSP (Options: 1/4ԔNPT and AISI-316 material). Dimensions according to VDI/VDE 3845 (NAMUR) Preloaded spring with security system, allowing the ability...

Open the catalog to page 5

P RANGE Wearing strips in pistons, allowing low friction and long life of the actuator. With external and internal coating (CATAPHORESIS + RILSAN), double corrosion resistance. > Shaft End according to: VDI/VDE 3845 (NAMUR) > Optional for P Actuators. The two independent external travel stop adjustment bolts can adjust +2/-5ں in both open and close directions. > Pneumatic connection 1/4BSP Dimensions according to VDI/VDE 3845 (NAMUR). > Concentric spring set, with security system as an option. > ISO-5211 Norm in all models. Double o-ring. Shaft exit: ISO-5211. Stainless steel bolt fastening....

Open the catalog to page 6

CAP ALLEN SCREW AISI-304STAINLESS STEEL- > ALUMINIUM ALLOY > CATAPHORESIS + POLYURETHANE (PA)CATAPHORESIS + RILSAN (P - PA70) POLYACETAL > (PA) P.T.F.E + BRONZE > (P) - > ALUMINIUM ALLOYPOLYARILAMIDE (PAW)CATAPHORESIS COVERED > (PA) ALUMINIUM ALLOYCATAPHORESIS + RILSAN COVERED > INOX. A2 > (PA RANGE - P30) STEEL > (P40-P50-PA70) - AISI-304STAINLESS STEEL- > STEEL NIQUEL-P.T.F.E COVERED > DIN-17223-CTRIVALENT Cr PASSIVATION > (PA) CATAPHORESIS COVERED > (P) PNEUMATIC CONNECTION PLATE > PLATE ALLEN SCREW > STEEL POLYAMIDE CATAPHORESIS COVERED > (PAW) (except PAW) ALUMINIUM ALLOYBALL BURNISHING...

Open the catalog to page 7

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 8

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 9

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial Black", sans-serif; } POLYAMIDE PNEUMATIC ACTUATORS

Open the catalog to page 10

Shaft end according toVDI/VDE 3845 Norm (NAMUR). Shaft made in Stainless Steel. > Stainless Steel Threaded Inserts to guarantee the best resistance against corrosion and wearing. Made in Polyamide + Glass Fiber. > Concentric spring set. Variable quantity (1 to 4 springs). > 1/4 BSP pneumatic connection to solenoid valve. Dimensions according to VDI/VDE 3845 (NAMUR) > Fixed by security ring protected against corrosion. > ISO-5211 Norm for all models. Wearing strips in pistons, allowing low friction and long life of the actuator. >

Open the catalog to page 11

SPRING RETURN (SR)DOUBLE ACTING (DA) OPTION OPTION POLYAMIDE + GLASS FIBER- > CLOSE OPEN POLYAMIDE + GLASS FIBER- > 24 AISI-303 STAINLESS STEELPOLYAMIDE + S.S insert > ALUMINIUM ALLOY > (PP10-PP20) BALL BURNISHING > POLYAMIDE + GLASS FIBER- >

Open the catalog to page 12

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial Black", sans-serif; } POLYAMIDE PNEUMATIC ACTUATORS

Open the catalog to page 13

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 14

Shaft end according toVDI/VDE 3845 Norm (NAMUR) Material: Stainless Steel. 1/4 BSP pneumatic connection to solenoid valve. Dimensions according to VDI/VDE 3845 (NAMUR) > Standard across the range except for PI00. To regulate the actuator opening and closing (+2Ժ / -5 to regulation). > Preloaded springs with security system. Easy to mount and to change number of springs > Fitted by Stainless Steel bolts.Same cap for double acting and spring return actuators. > ISO-5211 Norm for all models. Wearing strips in pistons, allowing low friction and long life of the actuator. >

Open the catalog to page 15

A SPRING RETURN (SR)DOUBLE ACTING (DA) A 80 F E M5 AISI-316 STAINLESS STEELCATAPHORESIS COVERED > AISI-316 STAINLESS STEEL- > CLOSEOPEN PNEUMATIC CONNECTON PLATE PLATE ALLEN SCREW > SHAFT AISI-303 STAINLESS STEELOPTION: AISI-316 STAINLESS STEEL > ALUMINIUM ALLOY > CATAPHORESIS COVERED + BURNISH

Open the catalog to page 16

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial Black", sans-serif; } STAINLESS STEEL PNEUMATIC ACTUATORS

Open the catalog to page 17

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 18

TECHNICAL FEATURES DISASSEMBLY AND MATERIALS - High Torque actuators to mount on to ball, butterfly and plug valves.- Wide range of Double Acting and Spring Return actuators up to 65.000Nm at 6 bar. - Working temperature: -20C to +80ںC.- Position Indicator and Stroke Adjustments allowing the regulation of valve opening and closing, with 5Ѻ range on both double acting and spring return.- Can be equiped with limit switches, solenoid valve and manual override.- Spring Security System as standard. All components are protected against corrosion. - PD pneumatic actuator range can pilot and regulate...

Open the catalog to page 19

PD RANGE SECURITY PISTON GUIDES SOLENOID CONNECTION FLANGE > Actuators specially designed to guarantee the lowest frictionbetween internal pieces. 1/2 or 3/4Ԕ Connection(depending on model).Dimensions according to VDI/VDE 3845 (NAMUR) . SYMMETRICAL AND CANTED TYPES Symmetric Canted SPRING SECURITY SYSTEM PISTON GUIDE RING > The spring security systemensures safe operation High quality ring preventing any leakage. . POSITION INDICATOR > Clearly indicates position of the actuator. TRAVEL STOPS > Actuator travel angle can be adjusted 5Ѻ at open and close position due to the travel stops.
