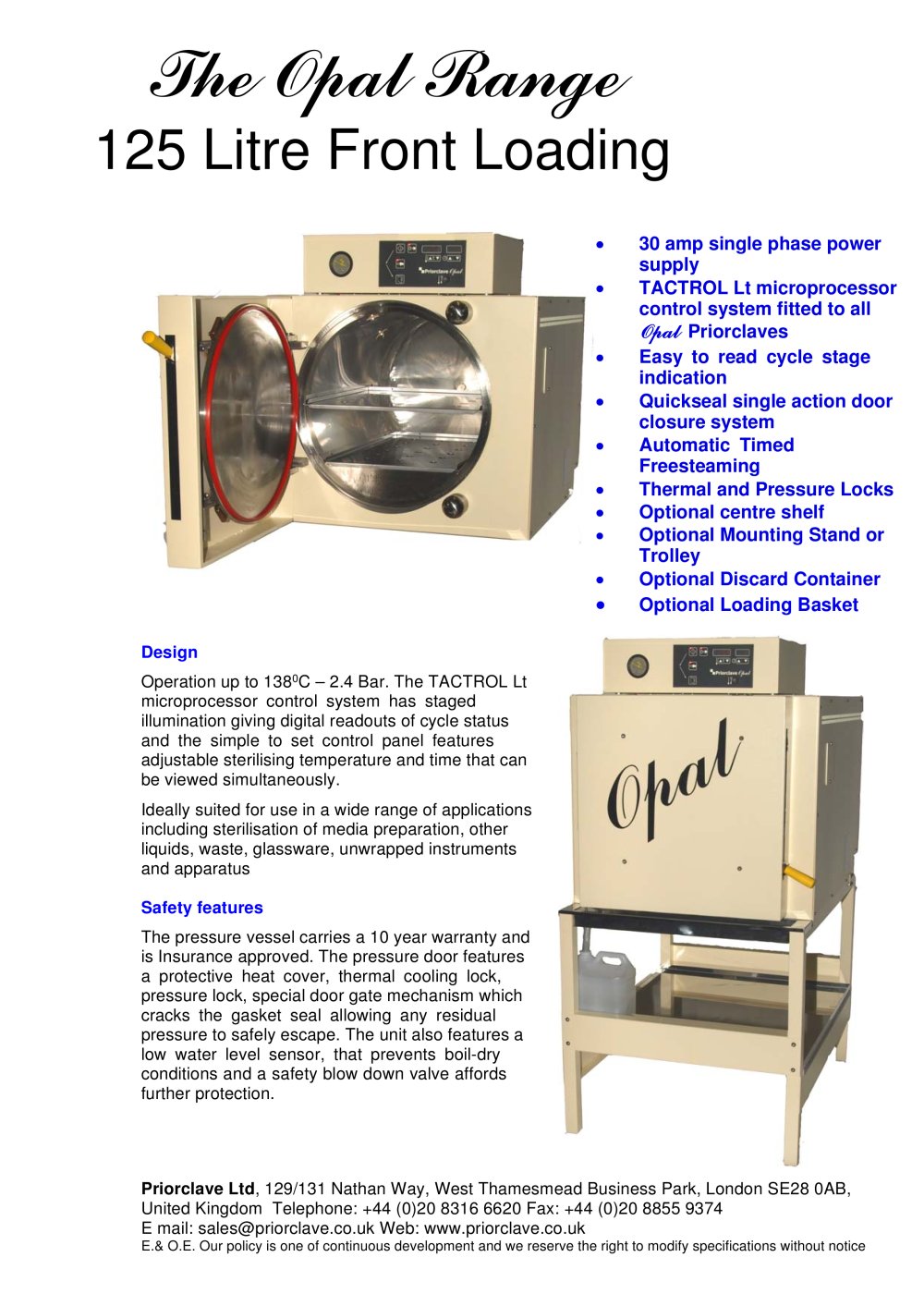

30 amp single phase powersupply TACTROL Lt microprocessorcontrol system fitted to all Priorclaves Easy to read cycle stageindication Quickseal single action doorclosure system Automatic TimedFreesteaming Thermal and Pressure Locks Optional centre shelf Optional Mounting Stand or Trolley Optional Discard Container Optional Loading Basket > Design Safety features Operation up to 138 C 2.4 Bar. The TACTROL Ltmicroprocessor control system has staged illumination giving digital readouts of cycle status and the simple to set control panel features adjustable sterilising temperature and time that can be viewed simultaneously.Ideally suited for use in a wide range of applicationsincluding sterilisation of media preparation, other liquids, waste, glassware, unwrapped instruments and apparatus The pressure vessel carries a 10 year warranty andis Insurance approved. The pressure door features a protective heat cover, thermal cooling lock, pressure lock, special door gate mechanism which cracks the gasket seal allowing any residual pressure to safely escape. The unit also features a low water level sensor, that prevents boil-dry conditions and a safety blow down valve affords further protection. Priorclave Ltd , 129/131 Nathan Way, West Thamesmead Business Park, London SE28 0AB,United Kingdom Telephone: +44 (0)20 8316 6620 Fax: +44 (0)20 8855 9374 E mail: sales@priorclave.co.uk Web: www.priorclave.co.uk E.& O.E. Our policy is one of continuous development and we reserve the right to modify specifications without notice size="-2">

Open the catalog to page 1

Product SpecificationLoading Format: Front, Cylindrical Chamber Chamber Capacity: 125 Litres Vessel Dimensions: 500mm diameter x 650mm deep Material: 316L stainless steel Weight: 190kG Trolley Weight : 40kG (Requires some assembly, required tools not included) Export Packed Dimensions : w1030 x d1070 x h1050mm (including or excluding a Trolley) Export Packed Weight: 220kG (260kG if a Trolley or Stand is included) Manufacturing Standards: Complies with the general requirements of BS2646 Part 1:1993,BS5500 Cat. 3, CE Marked for compliance to the Pressure Equipment Directive 97/23/EC, EMC...
