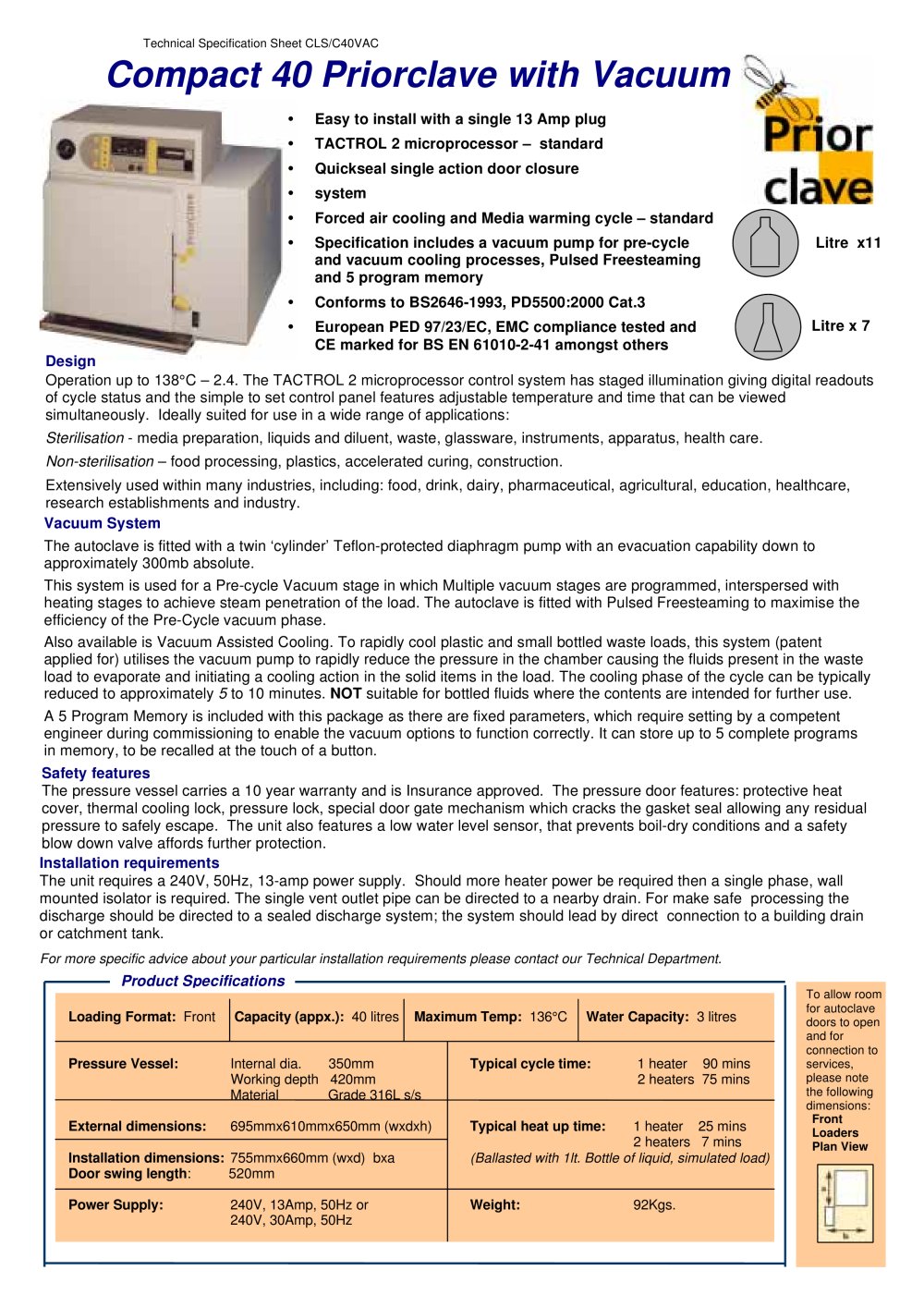

Compact 40 - 40L Vacuum Benchtop Priorclave Datasheet
2Pages

Technical Specification Sheet CLS/C40VAC Easy to install with a single 13 Amp plug > TACTROL 2 microprocessor Ֆ standard > Quickseal single action door closure > Forced air cooling and Media warming cycle standard > Specification includes a vacuum pump for pre-cycleand vacuum cooling processes, Pulsed Freesteamingand 5 program memory Litre x11Design > European PED 97/23/EC, EMC compliance tested andCE marked for BS EN 61010-2-41 amongst others Litrex 7 Operation up to 138 ְ C 2.4. The TACTROL 2 microprocessor control system has staged illumination giving digital readoutsof cycle status and the simple to set control panel features adjustable temperature and time that can be viewedsimultaneously. Ideally suited for use in a wide range of applications: Sterilisation - media preparation, liquids and diluent, waste, glassware, instruments, apparatus, health care. Non-sterilisation ֖ food processing, plastics, accelerated curing, construction.Extensively used within many industries, including: food, drink, dairy, pharmaceutical, agricultural, education, healthcare,research establishments and industr y . Vacuum System The autoclave is fitted witha twin cylinderђ Teflon-protected diaphragm pump with an evacuation capability down toapproximately 300mb absolute.This system is used for a Pre-cycle Vacuum stage in which Multiple vacuum stages are programmed, interspersed withheating stages to achieve steam penetration of the load. The autoclave is fitted with Pulsed Freesteaming to maximise theefficiency of the Pre-Cycle vacuum phase.Also available is Vacuum Assisted Cooling. To rapidly cool plastic and small bottled waste loads, this system (patentapplied for) utilises the vacuum pump to rapidly reduce the pressure in the chamber causing the fluids present in the wasteload to evaporate and initiating a cooling action in the solid items in the load. The cooling phase of the cycle can be typicallyreduced to approximately 5 to 10 minutes. NOT suitable for bottled fluids where the contents are intended for further use.A 5 Program Memory is included with this package as there are fixed parameters, which require setting by a competentengineer during commissioning to enable the vacuum options to function correctly. It can store up to 5 complete programsin memory, to be recalled at the touch of a button. Safety features Installation requirements The pressure vessel carries a 10 year warranty and is Insurance approved. The pressure door features: protective heatcover, thermal cooling lock, pressure lock, special door gate mechanism which cracks the gasket seal allowing any residual pressure to safely escape. The unit also features a low water level sensor, that prevents boil-dry conditions and a safety blow down valve affords further protection. The unit requires a 240V, 50Hz, 13-amp power supply. Should more heater power be required then a single phase, wallmounted isolator is required. The single vent outlet pipe can be directed to a nearby drain. For make safe processing the discharge should be directed to a sealed discharge system; the system should lead by direct connection to a building drainor catchment tank. > For more specific advice about your particular installation requirements please contact our Technical Department. Product S p ecifications > To allow roomfor autoclavedoors to openand forconnection toservices, please notethe followingdimensions: Loading Format: Front Capacity (appx.): 40 litres Maximum Temp: 136 C Water Capacity: 3 litres Pressure Vessel: Internal dia. 350mm Typical cycle time: 1 heater 90 mins Working depth 420mm 2 heaters 75 minsMaterial Grade 316L s/s FrontLoadersPlan View External dimensions: 695mmx610mmx650mm (wxdxh) Typical heat up time: 1 heater 25 mins 2 heaters 7 mins Installation dimensions: 755mmx660mm (wxd) bxa (Ballasted with 1lt. Bottle of liquid, simulated load) Door swing length : 520mm Power Supply: 240V, 13Amp, 50Hz or Weight: 92Kgs.240V, 30Amp, 50Hz size="-1">

Technical Specification Sheet CLS/C40VAC > Multi-ProgramMemory (Option) Simply press programnumber required torestore all yoursettings. Five and tenprogram optionsavailable. > Includes a venting period duringheating, greatly improving temperature distribution andhelping air removal.Also available Pulsed Freesteaming ֖ for improved waste load performance.(optional) Accelerated Cooling Process Timing Powerful fans blowcold air over theautoclave vesselreducing cooling timesto safe loadtemperatures.Delayedstart selectable toreduce media volumeloss. Guaranteedfrom a probe in theanticipated...
