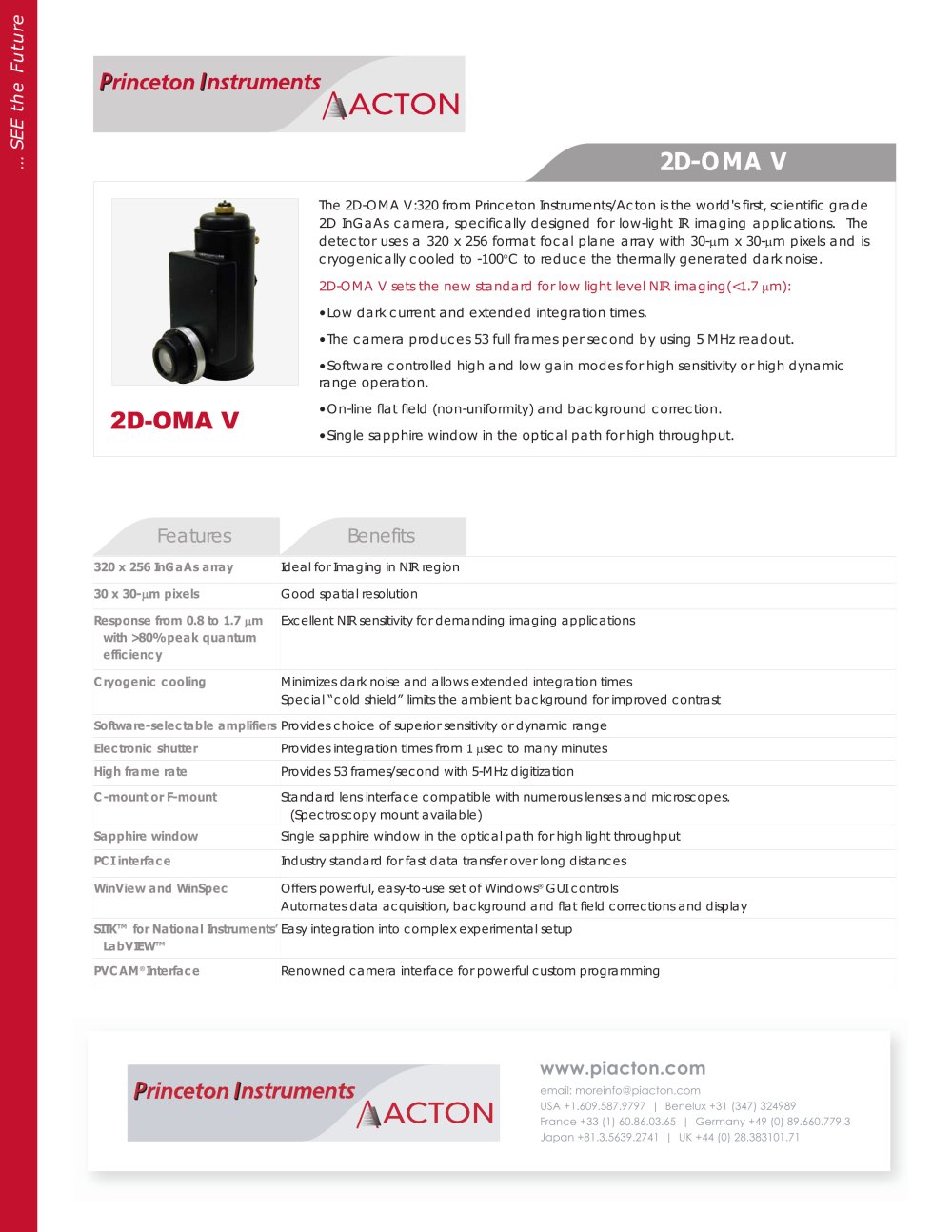

2D-OMA V Product Flyer

Product catalog summary

Introduction
The 2D-OMA V:320 from Princeton Instruments/Acton is a pioneering scientific-grade 2D InGaAs camera designed for low-light infrared (IR) imaging applications. It features a 320 x 256 format focal plane array with 30-µm x 30-µm pixels, cryogenically cooled to -100°C to minimize dark noise.

Specifications

Detector: 320 x 256 InGaAs array, ideal for NIR imaging.
Pixel Size: 30 x 30-µm for good spatial resolution.
Response Range: 0.8 to 1.7 µm with >80% peak quantum efficiency.
Cooling: Cryogenic cooling to reduce dark noise and allow extended integration times.
Frame Rate: 53 frames per second with 5 MHz readout.
Interface: C-mount or F-mount for lens compatibility; PCI interface for fast data transfer.

Features and Benefits

Low Dark Current: Extended integration times and reduced background noise.
Software Control: High and low gain modes for sensitivity or dynamic range.
Data Corrections: On-line flat field and background correction.
High Throughput: Single sapphire window in the optical path.

Applications
Infrared imaging is advantageous over traditional UV-VIS imaging due to its ability to penetrate materials that absorb visible light. It is used in applications such as nanotube fluorescence, emission, absorption, non-destructive testing, and singlet oxygen detection.

Technical Insights

InGaAs Technology: Ideal for NIR detection due to low photon energy requirements and high quantum efficiency.
Dark Current Management: Cooling is essential to reduce dark current and improve detector performance.
Data Corrections: Fixed pattern noise is managed through cooling and data correction techniques.

Conclusion
NIR imaging offers significant advantages for studying biological and chemical phenomena, making it a valuable tool for researchers worldwide.

Catalog excerpts

320 x 256 InGaAs array Ideal for Imaging in NIR region 30 x 30- յ m pixels Good spatial resolution Response from 0.8 to 1.7 mwith >80% peak quantum efficiency Excellent NIRsensitivity for demanding imaging applications Cryogenic cooling Minimizes dark noise and allows extended integration timesSpecial Փcold shield limits the ambient background for improved contrast Software-selectable amplifiers Provides choice of superior sensitivity or dynamic range Electronic shutter Provides integration times from 1 Ե sec to many minutes High frame rate Provides 53 frames/second with 5-MHz digitization C-mount or F-mount Standard lens interface compatible with numerous lenses and microscopes.(Spectroscopy mount available) Sapphire window Single sapphire window in the optical path for high light throughput PCI interface Industry standard for fast data transfer over long distances WinView and WinSpec Offers powerful, easy-to-use set of Windows > GUI controlsAutomates data acquisition, background and flat field corrections and display SITKΙ for National InstrumentsLabVIEWҙ Easy integration into complex experimental setup PVCAM > Interface Renowned camera interface for powerful custom programming >

Open the catalog to page 1
