Model RD-100 Adjustable Flow Control Valve
1 / 2Pages

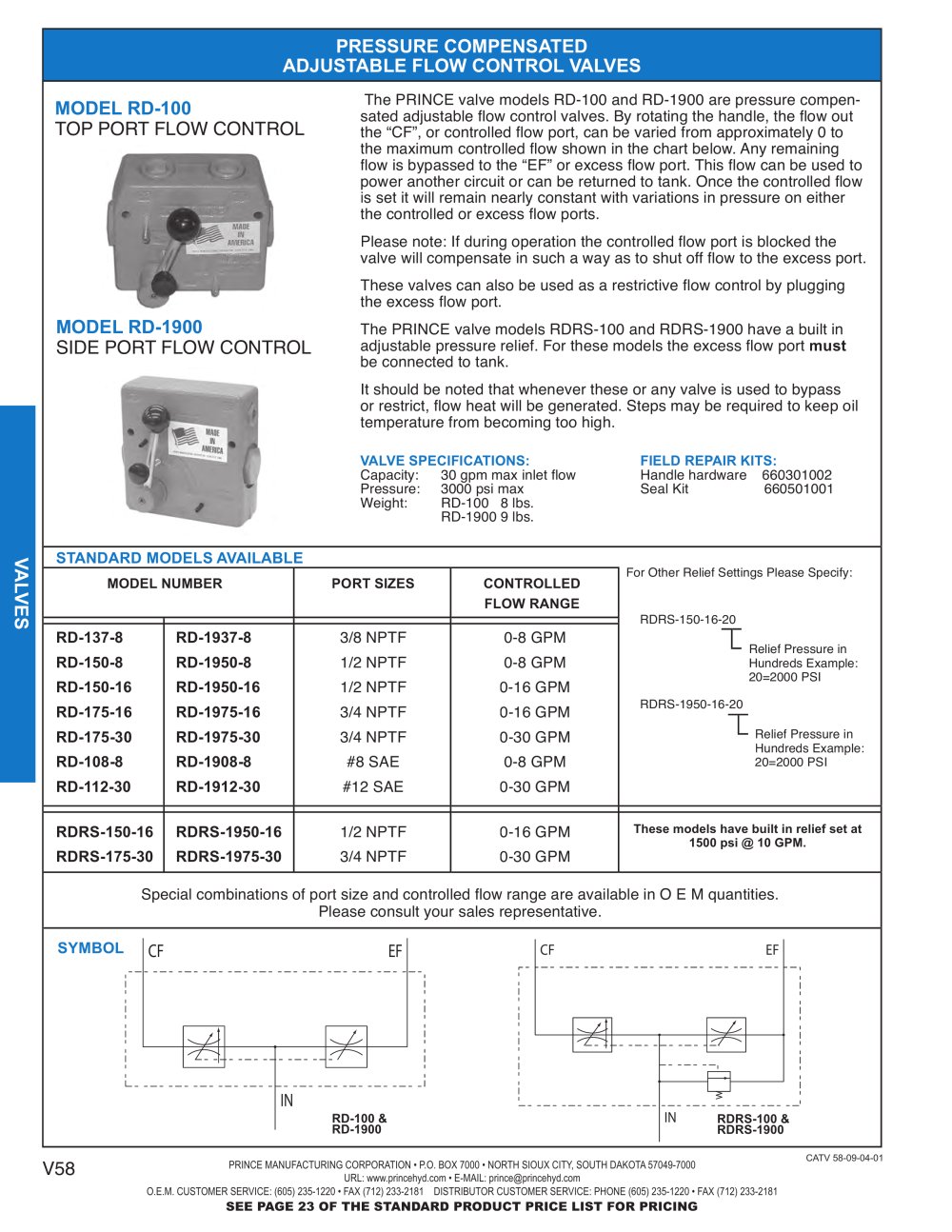

PRESSURE COMPENSATED ADJUSTABLE FLOW CONTROL VALVES MODEL RD-100 TOP PORT FLOW CONTROL The PRINCE valve models RD-100 and RD-1900 are pressure compensated adjustable flow control valves. By rotating the handle, the flow out the “CF”, or controlled flow port, can be varied from approximately 0 to the maximum controlled flow shown in the chart below. Any remaining flow is bypassed to the “EF” or excess flow port. This flow can be used to power another circuit or can be returned to tank. Once the controlled flow is set it will remain nearly constant with variations in pressure on either the controlled or excess flow ports. Please note: If during operation the controlled flow port is blocked the valve will compensate in such a way as to shut off flow to the excess port. These valves can also be used as a restrictive flow control by plugging the excess flow port. MODEL RD-1900 SIDE PORT FLOW CONTROL The PRINCE valve models RDRS-100 and RDRS-1900 have a built in adjustable pressure relief. For these models the excess flow port must be connected to tank. It should be noted that whenever these or any valve is used to bypass or restrict, flow heat will be generated. Steps may be required to keep oil temperature from becoming too high. VALVE SPECIFICATIONS: Capacity: 30 gpm max inlet flow Pressure: 3000 psi max Weight: RD-100 8 lbs. RD-1900 9 lbs. VALVES STANDARD MODELS AVAILABLE MODEL NUMBER PORT SIZES CONTROLLED FLOW RANgE RD-137-8 RD-1937-8 3/8 NPTF 0-8 GPM RD-150-8 RD-1950-8 1/2 NPTF RD-1950-16 1/2 NPTF 0-16 GPM RD-175-16 RD-1975-16 3/4 NPTF 0-16 GPM RD-175-30 RD-1975-30 3/4 NPTF RD-1908-8 #8 SAE 0-8 GPM RD-112-30 RD-1912-30 #12 SAE 0-30 GPM RDRS-150-16 RDRS-1950-16 1/2 NPTF 0-16 GPM RDRS-175-30 RDRS-1975-30 3/4 NPTF 0-30 GPM RDRS-150-16-20 0-30 GPM RD-108-8 For Other Relief Settings Please Specify: 0-8 GPM RD-150-16 FIELD REPAIR kITS: Handle hardware 660301002 Seal Kit 660501001 Relief Pressure in Hundreds Example: 20=2000 PSI RDRS-1950-16-20 Relief Pressure in Hundreds Example: 20=2000 PSI These models have built in relief set at 1500 psi @ 10 gPM. Special combinations of port size and controlled flow range are available in O E M quantities. Please consult your sales representative. SYMBOL CF EF IN RD-100 & RD-1900 V58 CF EF IN RDRS-100 & RDRS-1900 PRINCE MANUFACTURING CORPORATION • P.O. BOX 7000 • NORTH SIOUX CITY, SOUTH DAKOTA 57049-7000 URL: www.princehyd.com • E-MAIL: prince@princehyd.com O.E.M. CUSTOMER SERVICE: (605) 235-1220 • FAX (712) 233-2181 DISTRIBUTOR CUSTOMER SERVICE: PHONE (605) 235-1220 • FAX (712) 233-2181 SEE PAGE 23 OF THE STANDARD PRODUCT PRICE LIST FOR PRICING CATV 58-09-04-01

MODEL RD-100 AND RD-1900 PORT CONTROL FLOW PORT EXCESS FLOW CONTROL FLOW PORT EXCESS FLOW PORT PARTS BREAKDOWN AND DIMENSIONS 670300008 .38 3.88 670300008 .38 .88 3.88 2.05 CONTROL FLOW PORT 2.05 EXCESS FLOW PORT .88 .265 DIA (2) 190100018 .265 DIA (2) 190100018 670300008 PART NUMBER WILL BE 1.75 .38 1.00 1.00 240000912 670400005 3.88 PART NUMBER WILL BE LOCATION STAMPED IN THIS 240000912 670400004 .88 .88 2.05 4.13 STAMPED IN THIS LOCATION 670400004 4.13 .265 DIA (2) 190100018 230005093 230005093 1.00 2.38 PART NUMBER WILL BE 240000912 2.38 STAMPED IN THIS LOCATION 670400004 4.13 671600002...
