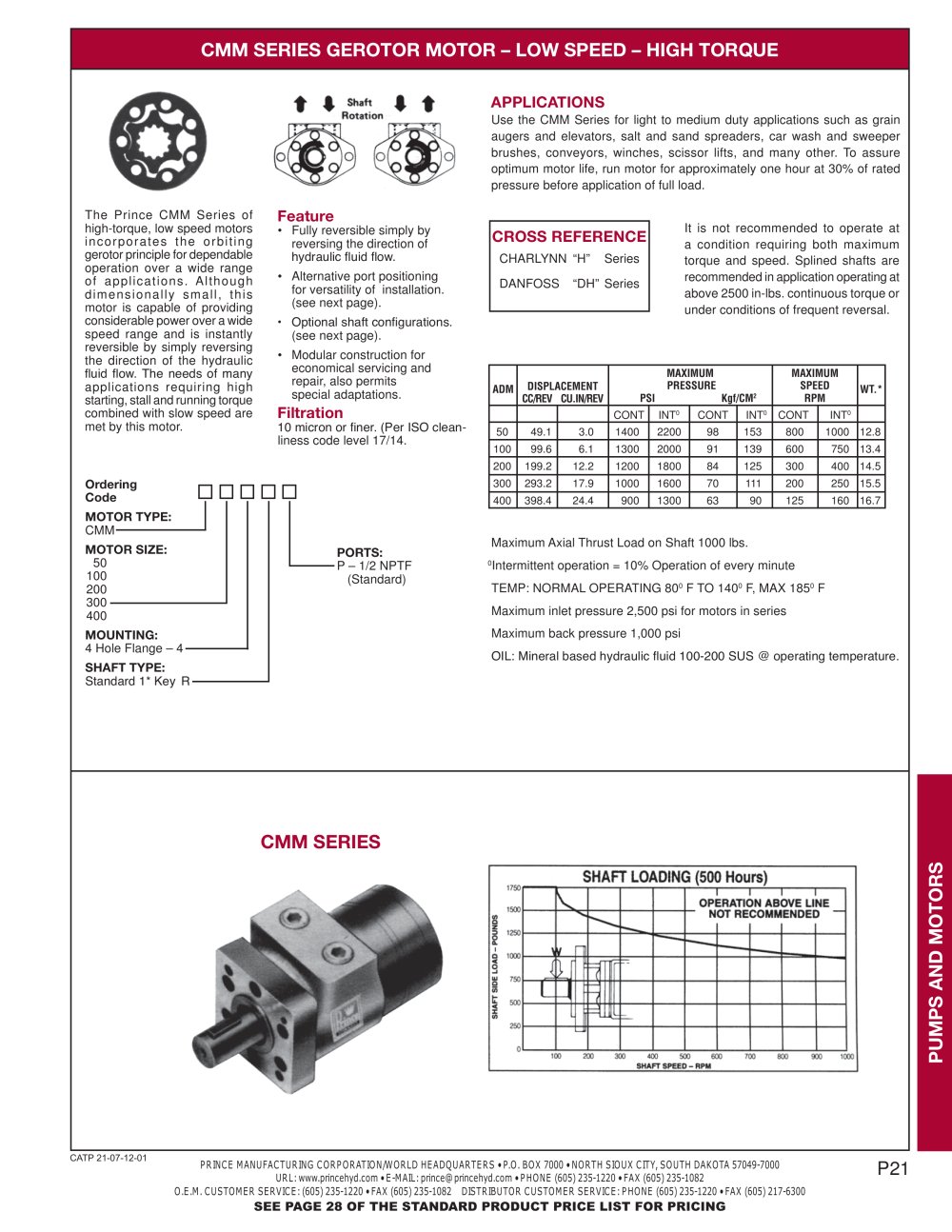

CMM SERIES GEROTOR MOTOR – LOW SPEED – HIGH TORQUE APPLICATIONS Use the CMM Series for light to medium duty applications such as grain augers and elevators, salt and sand spreaders, car wash and sweeper brushes, conveyors, winches, scissor lifts, and many other. To assure optimum motor life, run motor for approximately one hour at 30% of rated pressure before application of full load. The Prince CMM Series of high-torque, low speed motors incorporates the orbiting gerotor principle for dependable operation over a wide range of applications. Although dimensionally small, this motor is capable of providing considerable power over a wide speed range and is instantly reversible by simply reversing the direction of the hydraulic fluid flow. The needs of many applications requiring high starting, stall and running torque combined with slow speed are met by this motor. Feature • Fully reversible simply by reversing the direction of hydraulic fluid flow. It is not recommended to operate at a condition requiring both maximum torque and speed. Splined shafts are recommended in application operating at above 2500 in-lbs. continuous torque or under conditions of frequent reversal. CROSS REFERENCE CHARLYNN “H” Series • Alternative port positioning for versatility of installation. (see next page). DANFOSS “DH” Series • Optional shaft configurations. (see next page). • Modular construction for economical servicing and repair, also permits special adaptations. Filtration 10 micron or finer. (Per ISO cleanliness code level 17/14. MAXIMUM MAXIMUM SPEED PRESSURE DISPLACEMENT WT.* RPM PSI Kgf/CM2 CC/REV CU.IN/REV 0 0 0 CONT INT CONT INT CONT INT ADM 49.1 3.0 1400 2200 98 153 800 99.6 6.1 1300 2000 91 139 600 750 13.4 200 199.2 12.2 1200 84 125 300 400 14.5 300 293.2 17.9 1000 1600 70 111 200 250 15.5 400 398.4 24.4 Ordering Code 50 100 900 1300 63 1800 90 1000 12.8 125 160 16.7 MOTOR TYPE: CMM MOTOR SIZE: 50 100 200 300 400 PORTS: P – 1/2 NPTF (Standard) Maximum Axial Thrust Load on Shaft 1000 lbs. 0 Intermittent operation = 10% Operation of every minute TEMP: NORMAL OPERATING 800 F TO 1400 F, MAX 1850 F Maximum inlet pressure 2,500 psi for motors in series MOUNTING: 4 Hole Flange – 4 Maximum back pressure 1,000 psi OIL: Mineral based hydraulic fluid 100-200 SUS @ operating temperature. SHAFT TYPE: Standard 1* Key R PUMPS AND MOTORS CMM SERIES CATP 21-07-12-01 PRINCE MANUFACTURING CORPORATION/WORLD HEADQUARTERS • P.O. BOX 7000 • NORTH SIOUX CITY, SOUTH DAKOTA 57049-7000 URL: www.princehyd.com • E-MAIL: prince@princehyd.com • PHONE (605) 235-1220 • FAX (605) 235-1082 O.E.M. CUSTOMER SERVICE: (605) 235-1220 • FAX (605) 235-1082 DISTRIBUTOR CUSTOMER SERVICE: PHONE (605) 235-1220 • FAX (605) 217-6300 SEE PAGE 28 OF THE STANDARD PRODUCT PRICE LIST FOR PRICING P21

MOUNTING DIMENSIONS CMM MOUNTING 2.05 3.25 SQ. 4 MOUNTING HOLES 3/8-16UNC-.60 DP. ON A 3.25 B.C.D. 1.75 DIA HUB * NOTE: MOUNTING DIMENSIONS ARE THE SAME FOR THE CMM. 4 BOLT FLANGE 1.00 DIA.X 1/4 WIDE STD. WOODRUFF KEY 1/4-20UNC .63 DP. ø.9995±.0005 DIA. STRAIGHT KEYED SHAFT STD. PORT POSITIONS A 4 BOLT STD. B C D PUMPS AND MOTORS 1/2-14NPTF PIPE OR 7/8-14 O-RING BOSS OR MANIFOLD MOUNT CMM SERIES 1.80 .100 L1 3.25 3.43 CMM L L1 50 5.14 .250 100 5.40 .520 200 5.89 1.00 300 6.39 1.50 400 6.89 2.00 .81 1.79 2.05 L P22 PRINCE MANUFACTURING CORPORATION/WORLD HEADQUARTERS • P.O. BOX 7000 • NORTH...
