3000 PSI Rated Tie-Rod Cylinders
1 / 4Pages

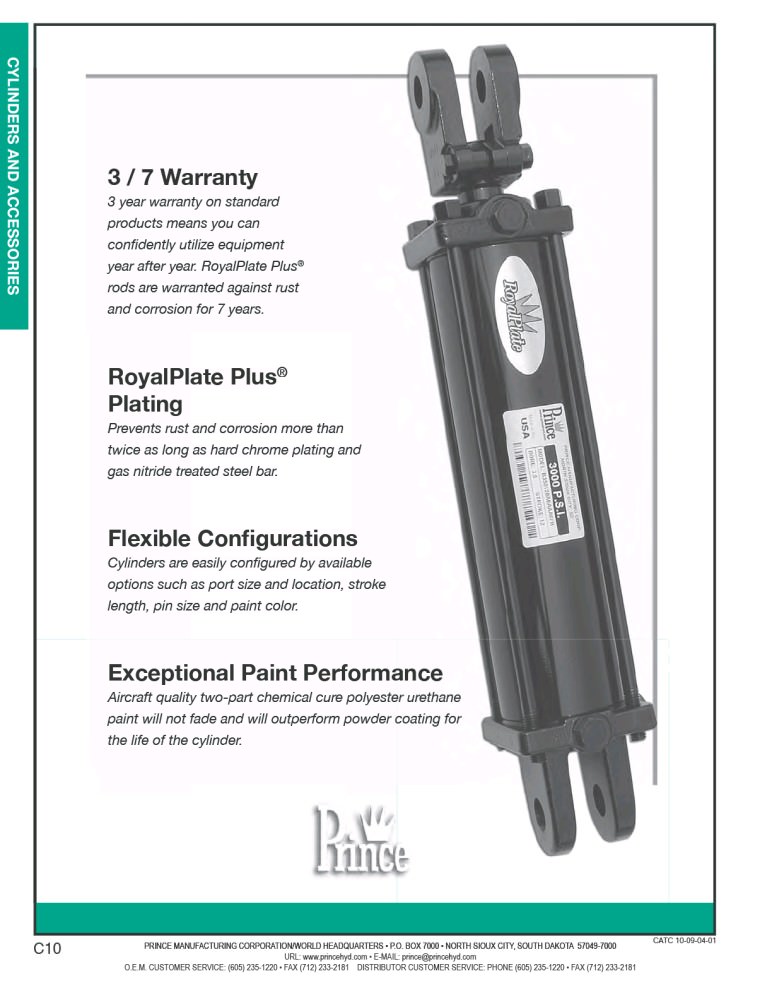

PRINCE MANUFACTURING CORPORATION/WORLD HEADQUARTERS • P.O. BOX 7000 • NORTH SIOUX CITY, SOUTH DAKOTA 57049-7000 URL: www.princehyd.com • E-MAIL: prince@princehyd.com O.E.M. CUSTOMER SERVICE: (605) 235-1220 • FAX (712) 233-2181 DISTRIBUTOR CUSTOMER SERVICE: PHONE (605) 235-1220 • FAX (712) 233-2181 CYLINDERS AND ACCESSORIES CATC 10-09-04-01 3 / 7 Warranty 3 year warranty on standard products means you can confifidently utilize equipment year after year. RoyalPlate Plus® rods are warranted against rust and corrosion for 7 years. RoyalPlate Plus® Plating Prevents rust and corrosion more than twice as long as hard chrome plating and gas nitride treated steel bar. Flexible Confifigurations Cylinders are easily confifigured by available options such as port size and location, stroke length, pin size and paint color. Exceptional Paint Performance Aircraft quality two-part chemical cure polyester urethane paint will not fade and will outperform powder coating for the life of the cylinder. 3000 P.S.I. Rated Tie-Rod C10

PRINCE MANUFACTURING CORPORATION/WORLD HEADQUARTERS • P.O. BOX 7000 • NORTH SIOUX CITY, SOUTH DAKOTA 57049-7000 URL: www.princehyd.com • E-MAIL: prince@princehyd.com O.E.M. CUSTOMER SERVICE: (605) 235-1220 • FAX (712) 233-2181 DISTRIBUTOR CUSTOMER SERVICE: PHONE (605) 235-1220 • FAX (712) 233-2181 CYLINDERS AND ACCESSORIES CATC 11-09-04-01 TIE-ROD MODEL CODE IDENTIFICATION MATRIX Standard Tie-Rod Options STROKE: (Inches) First two digits are in inches Third digit is 0-7 representing 1/8's of an inch for custom strokes. Consult Prince for over 48" MODEL CODE SYSTEM BORE SIZE: 200=2.00" Bore...

PRINCE MANUFACTURING CORPORATION/WORLD HEADQUARTERS • P.O. BOX 7000 • NORTH SIOUX CITY, SOUTH DAKOTA 57049-7000 URL: www.princehyd.com • E-MAIL: prince@princehyd.com O.E.M. CUSTOMER SERVICE: (605) 235-1220 • FAX (712) 233-2181 DISTRIBUTOR CUSTOMER SERVICE: PHONE (605) 235-1220 • FAX (712) 233-2181 CYLINDERS AND ACCESSORIES CATC 12-09-04-01 C12 FEATURES: • Honed tubing • Heavy duty, high strength tie-rods • Induction hardened piston rods plated with RoyalPlate Plus® (piston rods on 2” bore not hardened) • Ductile iron piston, butt, gland & clevis • Urethane u-cup & metal encased wiper 2 1/2”...

PRINCE MANUFACTURING CORPORATION/WORLD HEADQUARTERS • P.O. BOX 7000 • NORTH SIOUX CITY, SOUTH DAKOTA 57049-7000 URL: www.princehyd.com • E-MAIL: prince@princehyd.com O.E.M. CUSTOMER SERVICE: (605) 235-1220 • FAX (712) 233-2181 DISTRIBUTOR CUSTOMER SERVICE: PHONE (605) 235-1220 • FAX (712) 233-2181 CYLINDERS AND ACCESSORIES CATC 13-09-04-01 3.5 Inch Bore Cyli nders Old Standard Model No. Column Tare New Standard Model No. 2500 PSI / 3000 PSI Stroke Wt Load (lbs) Retract Dist. (H) A350080ABAAA07B SAE-9308A /SAE-33508 8” 35 28860 lbs 20 ¼ 5 ¾ B350100ABAAA07B SAE-9310A /SAE-33510 10” 37 28860...
