XM50 Basic Moisture Analyzer
XM50 Basic Moisture Analyzer
The Moisture Analyzer XM 50 by Precisa is designed for routine applications in production and incoming goods inspection. It is known for its accuracy, ease of use, and reliability, making it suitable for harsh industrial environments.
Key Features
- Infrared dark radiator for durability in industrial settings.
- Optional halogen or infrared heating systems available at no extra cost.
- High contrast vacuum fluorescent display for optimal readability.
- RS232 interface for PC and printer connectivity.
- Anti-theft protection with password and mechanical options.
- External calibration system and Swiss-made quality.
Technical Specifications
- Heat Source: Dark radiator
- Weighing Range: 52 g
- Readability: 0.001 g
- Pan Size: 100 mm diameter
- Smallest Sample Weight: 0.2 g
- Temperature Range: 30 - 170°C with 1°C steps
- Heating Modes: Standard, boost, smooth
- Auto Stop and Timer Stop features
- Dimensions: 218x340x177 mm
- Net Weight: 4.3 kg
- Power Consumption: 420 W
Accessories
- Aluminum and stainless steel dishes
- Fiberglass filters
- Temperature sensor plate and calibration sets
- Calibration weight
- Dust cover for display
- Printers and related accessories
Applications
The XM 50 is suitable for production and quality control environments, offering precise measurement performance and durability.
Catalog excerpts

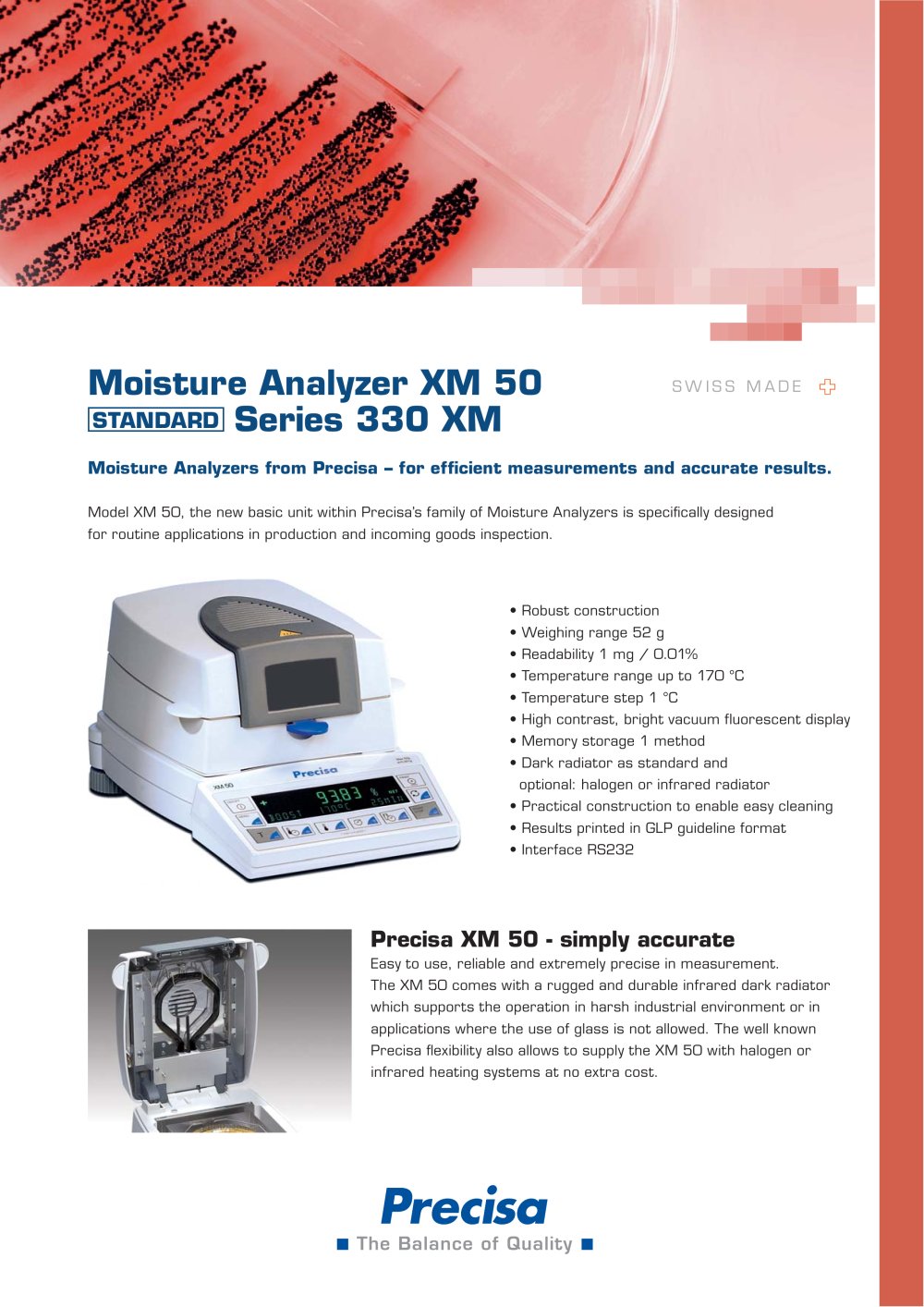

Precisa Gravimetrics AG Moosmattstrasse 32 CH-8953 Dietikon Tel. 0041 (0)44 744 28 28 Fax 0041 (0)44 744 28 38 www.precisa.com [email protected] 350-8152-000a1 High contrast vacuum fluorescent display Rugged load cell Technical modifications reserved Optimum readability combined with easy menu structure. Pictogram driven user guidance allows language independent operation and supports efficient work. Features and Applications Interface RS232 for Support IQ/OQ/PQ PC printer Clock (Printout GLP/GMP, etc.) Vacuum Fluorescent Display Anti theft protection - password and mechanical External calibration...
