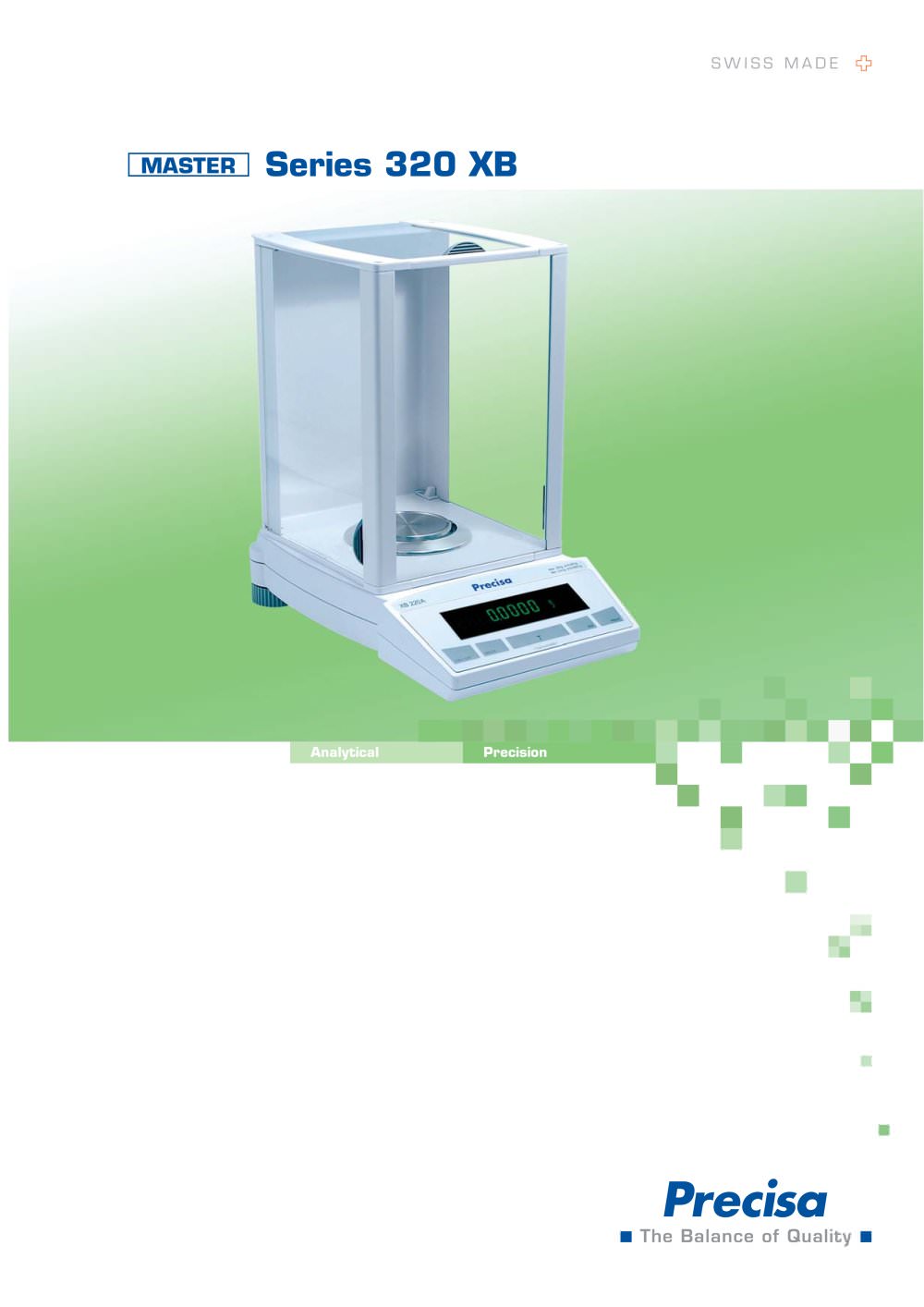

SWISS MADE MASTER Series 320 XB Analytical Precision

The Precisa 320 high performance series combines precision and quality, and offers the highest metrological performance and advanced integrated features. The bright vacuum fluorescent display, generously sized weighing pan, easy-operation draft shield, plus all the standard integrated weighing programmes, combine to make the 320 XB series a high performance versatile precision balance. MASTER Series 320 XB

Open the catalog to page 2

High-contrast vacuum fluorescent display Easy operation draft shield Compact design High Precision technology The 320 XB series owes its high reliability and durability to the well-known competence of Precisa’s engineering and development. The weighing cell is of the highest mechanical quality, operates extremely precisely; it can also be easily and economically repaired. Adjustable environmental settings provide superior performance in difficult production environments or unstable laboratory conditions. Easy operation draft shield The 320 XB series analytical draft shield is designed for...

Open the catalog to page 3

Support IQ/OQ/PQ Counting program Swiss made % weighing Units g, mg, ozt, lb, tael, etc. Net total application Add-up summation Dosage program Below balance weighing Interface RS232 for PC printer Clock (Printout GLP/GMP, Auto-Cal etc.) (optional) Vacuum Fluorescent Display Density determination Fully automatic internal calibration system SCS (optional) Anti theft protection - Animal Weighing password and mechanical Features and Applications Accessories 320 XB Draft shield 320 XB, height 180 mm 350-8518 Draft shield mg, glass with cover 320-8504 Hook for weighing below the balance 350-8527...

Open the catalog to page 5

Precisa Gravimetrics AG Moosmattstrasse 32 CH-8953 Dietikon Tel. 0041 (0)44 744 28 28 Fax 0041 (0)44 744 28 38 www.precisa.com info@precisa.ch Technical modifications reserved 350-8157-000 Model Capacity Readability Repeatability Linearity Pan Size (mm) Respose time XB 160M 320 g 1 mg 1 mg 1.5 mg 135 x 135 3 s XB 320M 320 g 1 mg 1 mg 1.5 mg 135 x 135 3 s XB 620M * 620 g 1 mg 1 mg 1.5 mg 135 x 135 3 s XB 1220M 1 220 g 1 mg 1 mg 2 mg 135 x 135 4 s Dimensions (WxLxH) 210x340x124 mm Net weight from 5.1 till 5.5 kg Draft shield inside dimensions (WxLxH) 170x170x35 mm Sensitivity drift...
