Precisa Gravimetrics AG
LEDETECT 96 Visible Microplate Reader

LEDETECT 96 Visible Microplate Reader

Product catalog summary

Overview: The LEDETECT 96 is a state-of-the-art microplate reader designed for 96 well plates, featuring advanced LED technology for enhanced performance and efficiency. It is designed in Austria and manufactured in Germany.

Key Features:

LED Technology: Utilizes intelligent, wavelength-specific LED plugins, eliminating the need for traditional lamps and filters. Each plugin is easily exchangeable and contains its own digital ID, light source, filter, and lenses.
Low Power Consumption: Consumes a maximum of 12W during operation and 2W in standby mode, setting new standards for energy efficiency.
Optical Performance: Offers high and stable light energy with minimal heat development, surpassing traditional halogen lamp systems.
Computer Controlled: Fully controlled via computer with included Capture96 software for data collection and integration with spreadsheet programs.
MikroWin2000 Compliant: Compatible with MikroWin2000 software for data reduction, supporting routine applications and advanced studies.

Technical Specifications:

Plate Types: 96 well
Optical System: 8 channel Transmission Photometer
Light Source: Digital controlled LED lamps
Wavelength Range: 340 - 750nm, with special wavelengths up to 900nm
Resolution: 0.1 mOD (0.0001 OD)
Accuracy: Better than ± 1% and ± 0.005 OD up to 2.5 OD
Linearity: ≤± 0.5% from 0.1 to 1.5 OD
Reproducibility: Better than ≤ ±0.3% at 1OD
Measurement Mode: Single and dual wavelength, linear scan
Reading Speed: 5 seconds for single wavelength, 10 seconds for dual wavelength
PC Interface: USB 2.0 compatible
Dimensions: 23cm x 12cm x 36cm
Weight: 6.7 kg
Power Supply: External adapter, 100-240V, 50/60 Hz

Scope of Supply: Includes power adapter, USB cable, standard filters, user manual, Capture96 software, and MikroWin2000 demo version.

Ordering Information: Various models and plugins available, including the WR-302-02 Ledetect96 Microplate Reader and WR-302-xxx LED plugins.

Conclusion: The LEDETECT 96 combines cutting-edge LED technology with user-friendly operation and comprehensive software compatibility, making it an ideal choice for modern laboratory applications.

Catalog excerpts

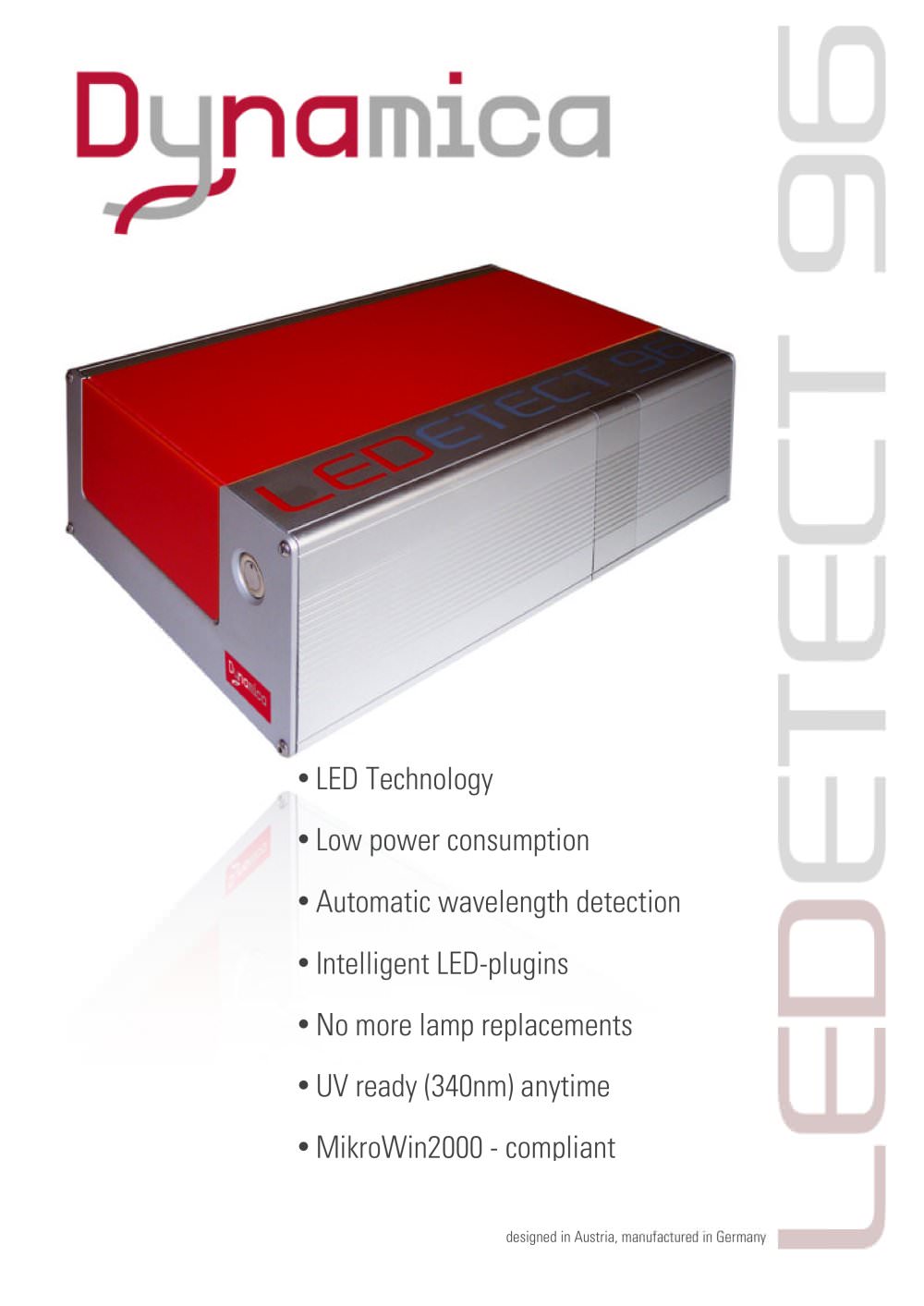

• LED Technology • Low power consumption • Automatic wavelength detection • Intelligent LED-plugins • No more lamp replacements • UV ready (340nm) anytime • MikroWin2000 - compliant designed in Austria, manufactured in Germany

Open the catalog to page 1

Flyer LD96 V1.0 / September 2008 Dynamica GmbH, Wiener Bundesstrasse 23, AT-5300 Salzburg-Mayrwies / Austria Tel: +43 662 6655 1500 Fax: +43 662 6655 1544 [email protected] www.dynamica-eu.com . LED technology . Unrivaled optical performance . intelligent LED-plugins . UV ready (340nm) . Easy and safe operation . Computer controlled . MikroWin2000 compliant Parameter Value Plate Types 96 well Optical system 8 channel Transmission Photometer Light source Digital controlled LED lamps, wavelength specific Photodetector 8 silicon Photodiodes Wavelength range 340 - 750nm (special wavelengths up...

Open the catalog to page 2
