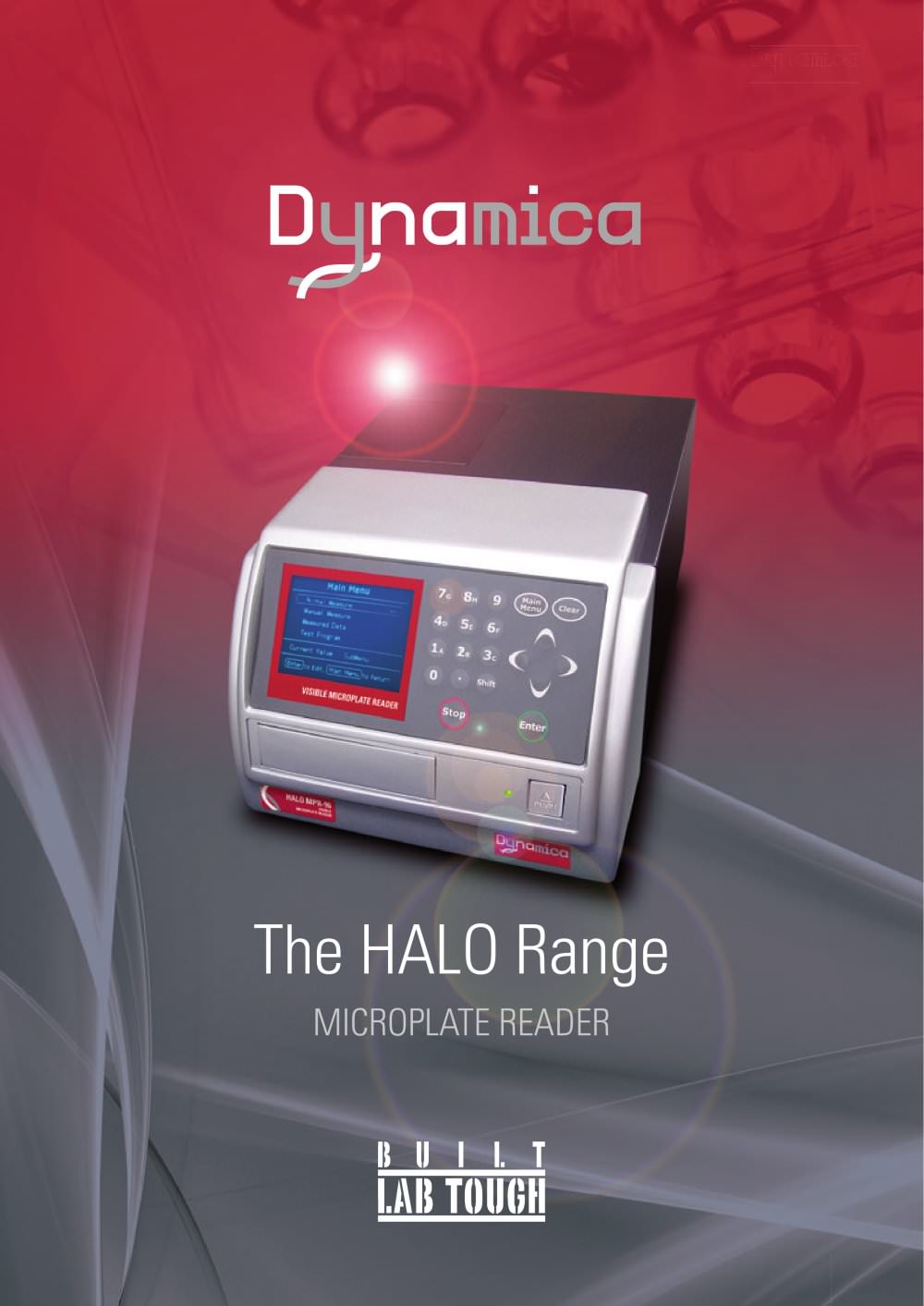

3 The HALO Range MICROPLATE READER

2 Dynamica sets the new benchmark in laboratory instrumentation. Utilizing Dynamica’s extensive experience in marketing and manufacturing, the range of precision laboratory instrumentation is built tough to withstand the demands of the modern laboratory environment, day after day, year after year without compromise. Dynamica instrumentation is designed for versatility and fl exibility to maximize performance effi ciency in the contemporary and multifaceted laboratory environment. HALO MPR-96

3 Halo MPR-96 Visible Microplate Reader. The MPR-96 Microplate Reader extends the Halo range to facilitate higher throughput analyses of experiments consisting of an array of micro-volume reactions typically in a 96 well plate format. Naturally the MPR-96 features the same ruggedness, reliability, precision and reproducibility synonymous with the Halo family. The Halo MPR-96 also comes standard with a comprehensive selection of on-board functions for versatility and suitability to many analytical and biological applications. Use either in stand alone mode or connect to a PC to maximize fl exibility....

4 User friendly operation and information rich LCD display The 90mm x 68mm, backlit LCD screen with adjustable brightness control is suffi ciently large to display a comprehensive array of data even in a graphical format, for example up to 48 wells i.e. half of a 96 well plate can be displayed concurrently with the added capability to zoom in on specifi c data points. Other displayed parameters in addition to measurement results include operation prompts, plate layout and historical data. The seamless and chemical resistant keypad is designed for easy and quick selection of the navigation and...

5 HALO MPR-96 SPECIFICATIONS Wavelength Range 400nm -750nm (340-750nm for MPR-96 UV) Photometric Range Absorbance: 0 to +4.0 OD Resolution 0.001 OD Stability ±0.001 OD (15 minutes after start up) Accuracy Better than ±1.0% ±0.01 OD (405nm, 0.000 – 2.500 OD) Better than ±2.0% ±0.01 OD (405nm, 2.500 – 3.000 OD) Repeatability Better than ±0.5% ±0.005 OD (405nm, 0.000 – 2.500 OD) Better than ±1.5% ±0.005 OD (405nm, 2.500 – 3.000 OD) Linearity Better than ±1.0% (405nm, 0.000 – 2.500 OD) Better than ±2.0% (405nm, 2.500 – 3.000 OD) Filter Capacity 5 position [4 standard (405nm, 450nm, 492nm, 620nm)...

6 Halo MPR-96 ORDERING INFORMATION: PRODUCT CATALOG NUMBER# Halo MPR-96 Visible Microplate Reader 400nm-750nm / 110 - 220 V, 50/60Hz MPR-96-400 Halo MPR-96UV UV-Visible Microplate Reader 340nm-750nm / 110 - 220 V, 50/60Hz MPR-96-340* PC Software UVDS-08-01 Calibration Plate MPR-96-CP Temperature Control Module MPR-96-TCM Interference Filters (please specify wavelength between 340-750nm) MPR-IF (ënm) Micro-plates (40 plates per pack) 96 well U-bottom MPV-96U 96 well V-bottom MPV-96V * This model will be available soon.

2 Designed in Australia. The HALO Range MICROPLATE READER Designed in Australia Australia Dynamica Pty Ltd ABN 16 126 043 052 PO Box 3278 Prahran East Victoria 3181 Australia P: +61 3 8540 5988 F: +61 3 8540 5981 Email: [email protected] Web: www.dynamica.com.au Austria Dynamica GmbH Wiener Bundesstrasse 23 A-5300 Salzburg Mayrwies Austria P: +43 662 6655 1500 F: +43 662 6655 1544 Email: [email protected] Web: www.dynamica-eu.com 10/2009
