Precisa Gravimetrics AG

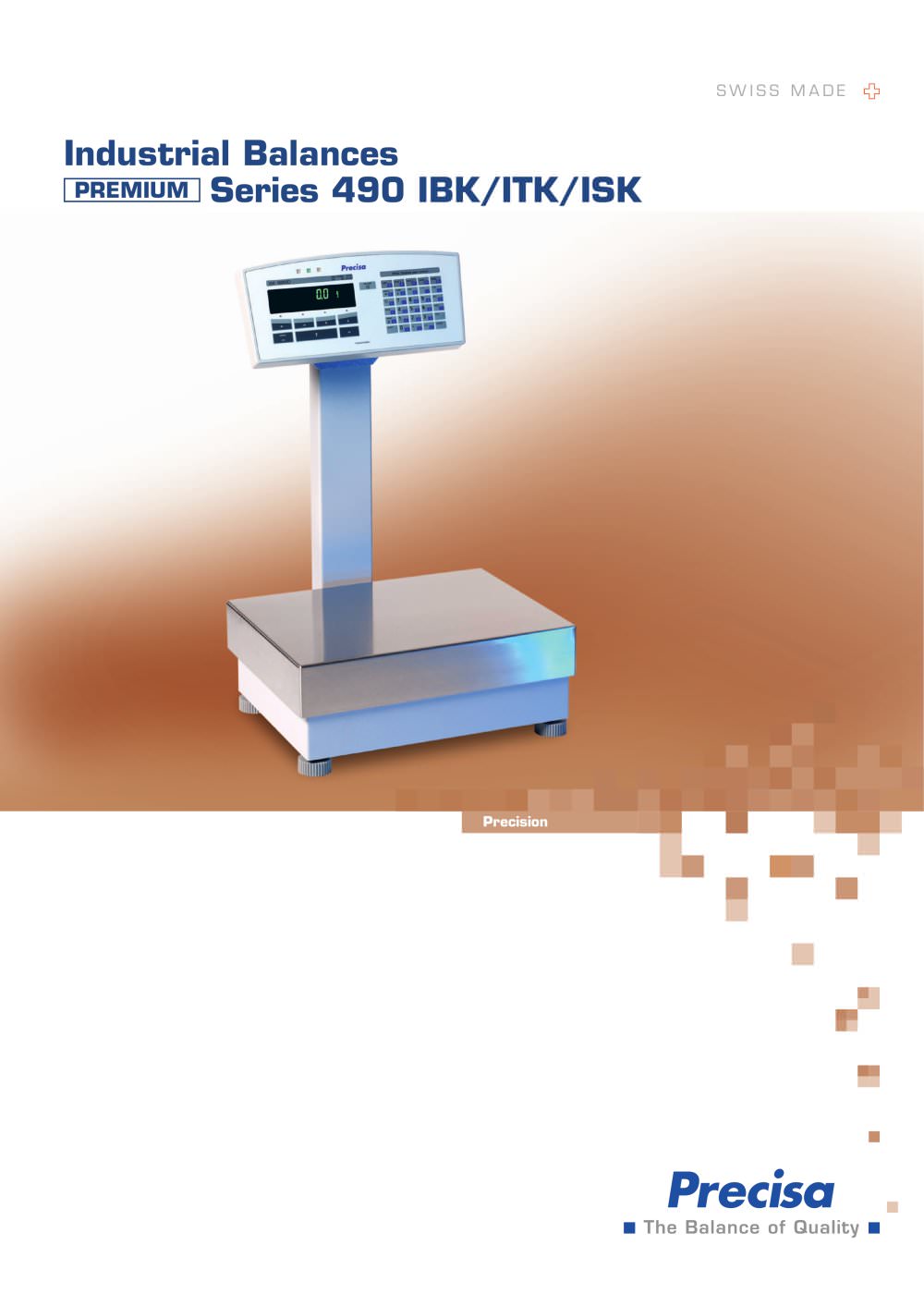

490K Series Scales:

490K Series Scales:

Product catalog summary

Overview: The Precisa 490 Series of industrial balances is designed for high precision weighing applications, featuring Swiss-made electro-magnetic force restoration systems. These scales are equipped with automatic self-calibration systems and are suitable for various industrial applications.

Specifications: The series includes models with capacities ranging from 12,000g to 60,000g, with readability options of 0.1g and 1g. The scales have a pan size of 400 x 300 mm and a response time of 2 seconds. They offer IP54 protection, with an optional upgrade to IP65 for enhanced dust and water resistance.

Terminals: The series includes three types of user-friendly terminals: IB, IT, and IS. Each terminal offers a vacuum fluorescent display and various applications such as weight unit switching, counting, and density determination. The IS terminal includes advanced features like SmartBox® and extended memory functions.

Calibration and Protection: The scales feature a fully automatic self-calibration system (SCS) that adjusts based on time and temperature changes, complying with ISO and GLP guidelines. The IP65 protection option safeguards against dust and water splashes.

Connectivity: The scales support versatile connectivity options, including RS232 and Precisa BUS for connecting printers, PCs, barcode scanners, and more. The ISK terminal offers additional RS232 connections for enhanced connectivity.

Applications and Features: The scales support various applications such as animal weighing, check weighing, and dosage programs. They also include features like anti-theft protection, direct tare entry, and below balance weighing up to 40 kg.

Accessories: A range of accessories is available, including wall brackets, extended connection cables, dust covers, and external power packs. The series also supports EC/OIML verification for compliance with international standards.

Catalog excerpts

The finest electro-magnetic force restoration system, which conforms to the highest metrological standards, secure that all weighing results are absolutely reliable. >

Open the catalog to page 2

The standard interface can work as RS232 or as Precisa BUS.RS232 for single connection of:- Printer- PCPrecisa BUS boxes for parallel connection of:- Printer - PC- Signallamp- Barcode scanner - Remote display- I/O Box- EthernetThe indicator Terminal ISK containsa Precisa BUS and 2 RS232 connections for:- PC- Printer - Barcode scanner- Reference balance > SignalBarcodePrinterRemote displayPCI/O BoxEthernet RS232 > (only one Printer or one PC) Precisa BUS > (parallel with Precisa BUS boxes) Platform Terminal IBK, ITK, ISK > Additional 2 RS232 connections in indicator Terminal ISK for: - PC - Printer...

Open the catalog to page 4

350-8144-000 User-friendly multi-application indicator (IBK) Indicator with alpha-numeric input and manual tare (ITK) Indicator with integrated SmartBox (ISK) > Dimensions (LxWxH) with terminal 400x465x150 mm Net weight 15 kgDimensions (LxWxH) without terminal 400x300x150 mm Protection platform IP 54 (IP65 optional) > Dimensions (LxWxH) with terminal 400x465x150 mm Net weight 15 kgDimensions (LxWxH) without terminal 400x300x150 mm Protection platform IP 54 (IP65 optional) > Floating displayTemperature rangeLine voltage, ToleranceStability settingsPower consumption Frequency adjustible0 .. 40...

Open the catalog to page 6
