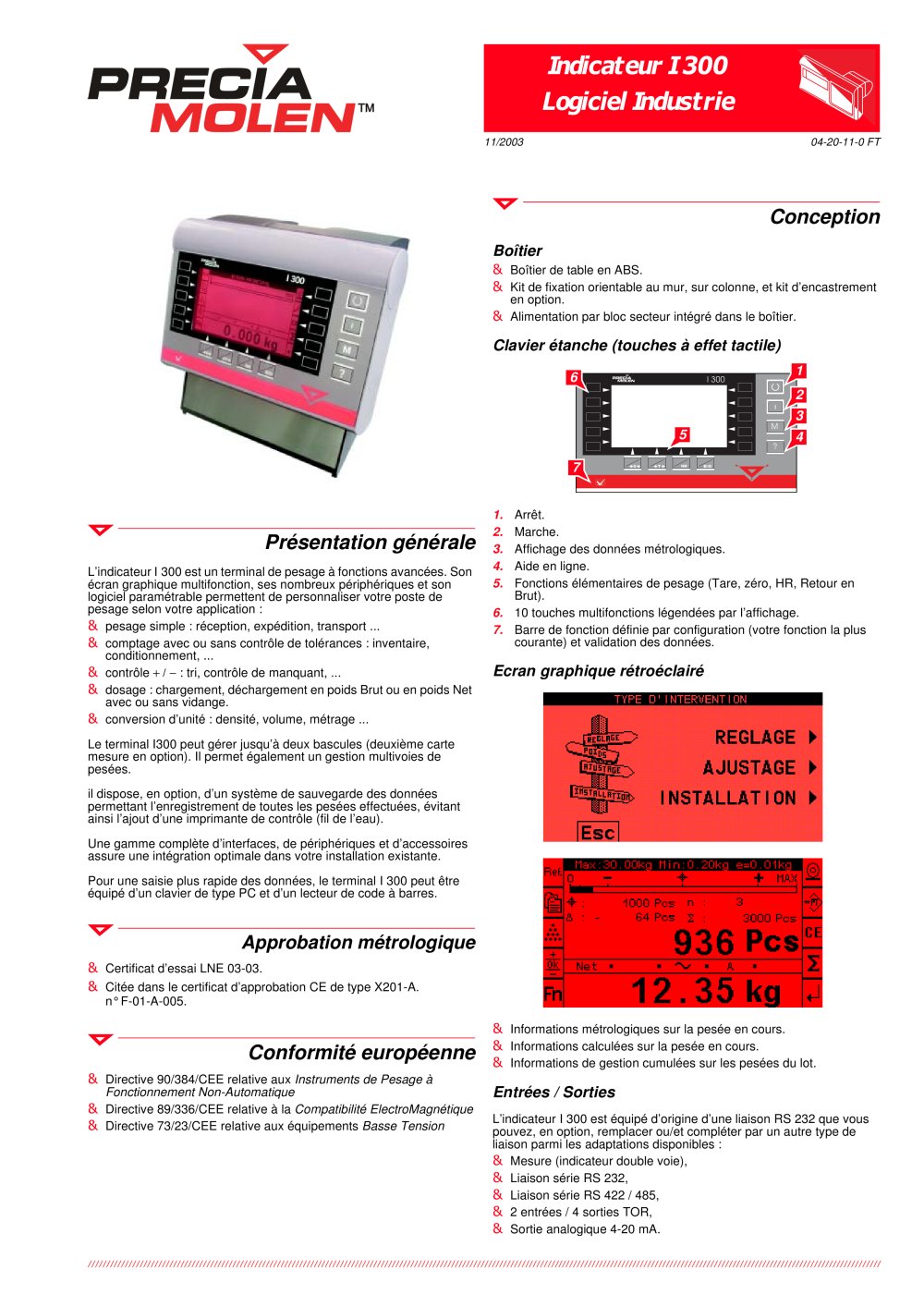

General Overview
The I 300 indicator is an advanced weighing terminal with a multifunction graphic display, numerous peripherals, and customizable software. It supports various applications such as simple weighing, counting with or without tolerance control, +/- control, dosing, and unit conversion. The terminal can manage up to two scales and offers multi-channel weighing management. An optional data backup system records all weighings, eliminating the need for a control printer.

Metrological Approval
The I 300 has LNE test certificate 03-03 and is cited in the CE type approval certificate X201-A, No. F-01-A-005.

European Compliance
It complies with directives for non-automatic weighing instruments, electromagnetic compatibility, and low voltage equipment.

Design
The terminal features an ABS table housing with optional mounting kits, integrated power supply, and a waterproof keyboard with tactile feedback. The backlit graphic screen displays current weighing information and cumulative management data.

Inputs/Outputs
Standard RS 232 connection, with optional RS 422/485, 2 inputs/4 outputs, and 4-20 mA analog output.

Technical Specifications

• Physical Dimensions: Width: 218 mm, Height: 212.1 mm, Depth: 95.1 mm.
• Electrical Characteristics: Integrated power supply, 190-250 V, 50-60 Hz, 15 VA max, or 24 V DC.
• Metrological Characteristics: Multi-channel management with logical and physical channels.
• Environmental Characteristics: Operating temperature: -10°C to +40°C, Storage: -20°C to +60°C, IP 54 sealing.
• File Characteristics: Reference files with 350 entries, parameterizable files with 100 entries, tare file with 100 entries, and data storage capacity of up to 48,000 records.

Standard Delivery Content
Includes the indicator with integrated power supply, RS 232 serial accessory, operating documentation, PC keyboard adapter, metrological booklet, and a 3 m measurement cable.

Options & Accessories
Various precision classes, interface accessories, keyboards, printers, data storage devices, measurement cards, and analog outputs are available.

Contact Information
Precia-Molen, BP 106 - 07000 Privas, France. Phone: +33 (0) 475 664 600, Fax: +33 (0) 475 658 330, Email: [email protected].
