PRECIA MOLEN

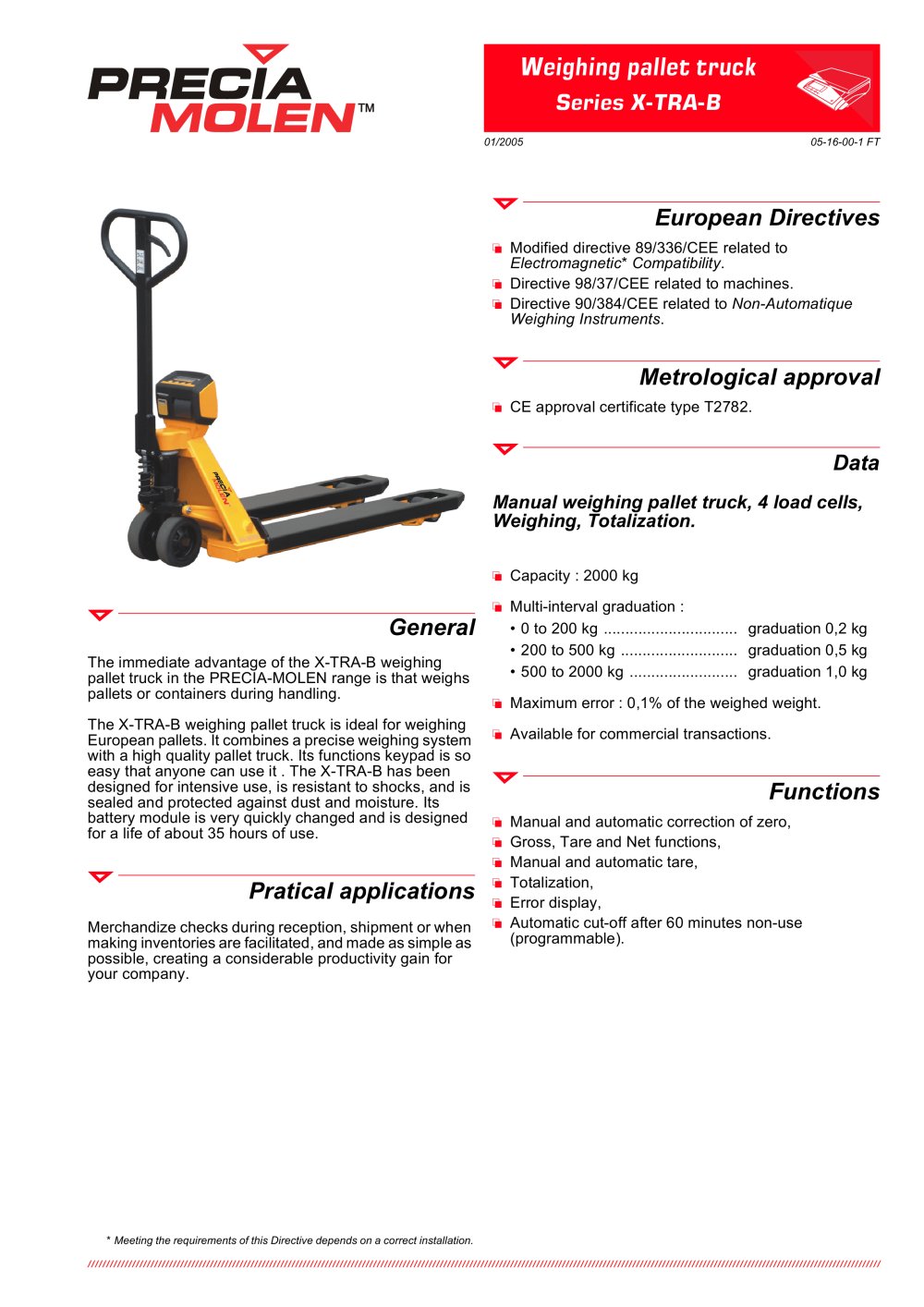

Weighing pallet truck X-TRA-B

Weighing pallet truck X-TRA-B

Product catalog summary

Overview: The X-TRA-B weighing pallet truck from PRECIA-MOLEN is designed to weigh pallets or containers during handling, offering a significant advantage in efficiency. It is particularly suitable for European pallets and combines a precise weighing system with a high-quality pallet truck.

Key Features: The X-TRA-B is user-friendly, designed for intensive use, and resistant to shocks, dust, and moisture. It features a quickly changeable battery module with a lifespan of approximately 35 hours.

Practical Applications: This pallet truck facilitates merchandise checks during reception, shipment, or inventory, enhancing productivity.

Compliance: It adheres to European Directives on Electromagnetic Compatibility (89/336/CEE), Machinery (98/37/CEE), and Non-Automatic Weighing Instruments (90/384/CEE). It has a CE approval certificate type T2782.

Technical Specifications:

Capacity: 2000 kg
Graduation: 0.2 kg (0-200 kg), 0.5 kg (200-500 kg), 1.0 kg (500-2000 kg)
Maximum error: 0.1% of the weighed weight
Functions: Zero correction, Gross/Tare/Net functions, Totalization, Error display, Automatic cut-off after 60 minutes

Physical Characteristics:

Dimensions: Fork length 1150 mm, Fork width 170 mm, Minimum height 90 mm, Maximum height 210 mm
Weight: 110 kg
Color: RAL 1028 yellow, epoxy paint
Wheels: Rubber steering wheels, Polyurethane load bearing wheels

Electrical Characteristics:

Battery: 12 Vdc / 1.2 Ah
Battery charger: 230 V / 12 Vdc - 300mA

Environmental Characteristics: Load cells and wiring are IP 67 rated, and the indicator is IP 65 rated.

Options & Accessories: Integrated printer, rotary indicator, additional battery module, stainless steel frame and forks, various wheel options, hand/foot brake, 3000 kg capacity option, and customizable fork lengths and spacings.

Contact Information: PRECIA-MOLEN, P.O. Box 106, F 07000 Privas, France. Tel: +33 (0) 475 664 600, Fax: +33 (0) 475 658 330, Email: [email protected]
