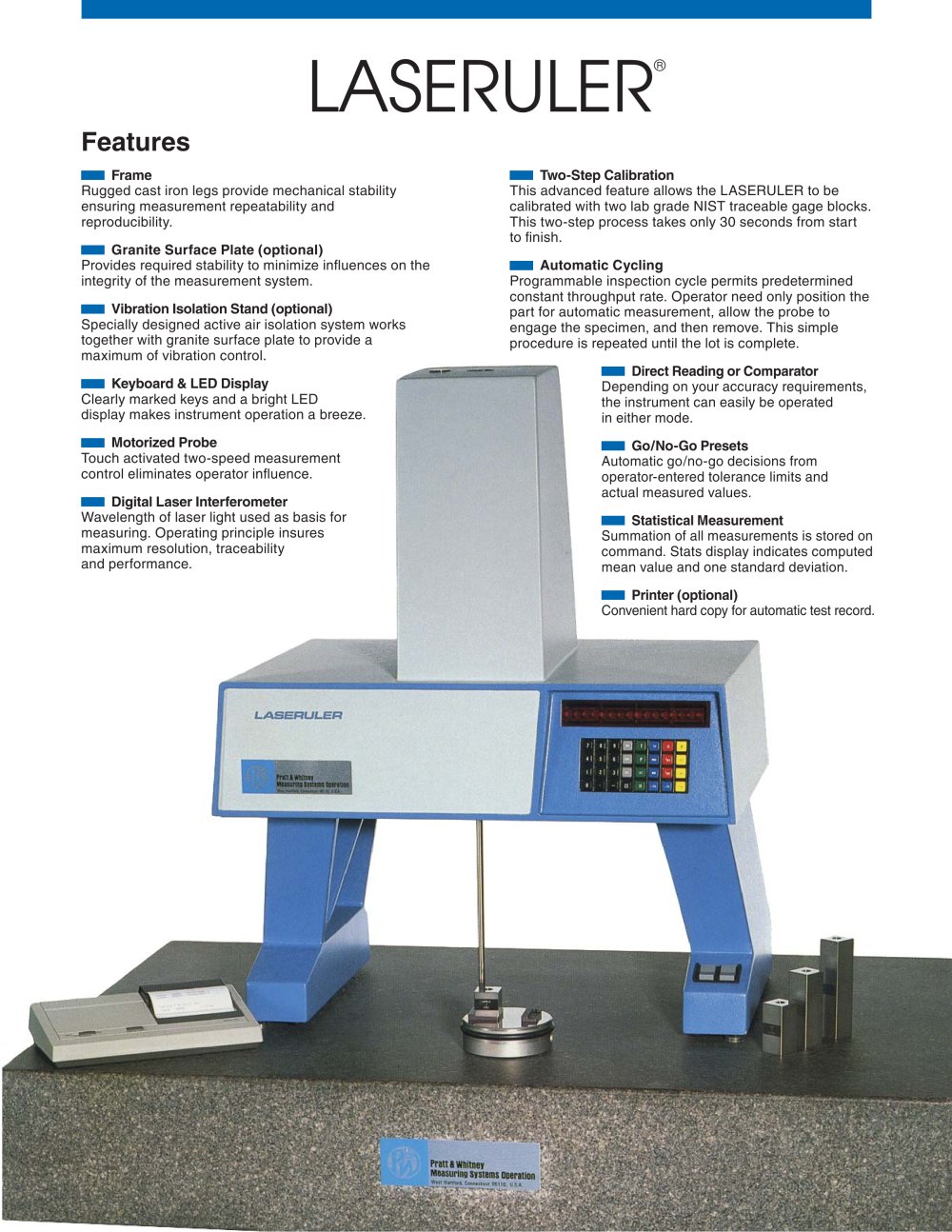

Frame Two-Step Calibration Rugged cast iron legs provide mechanical stability ensuring measurement repeatability and reproducibility. This advanced feature allows the LASERULER to be calibrated with two lab grade NIST traceable gage blocks. This two-step process takes only 30 seconds from start to fi nish. Granite Surface Plate (optional) Provides required stability to minimize infl uences on the integrity of the measurement system. Automatic Cycling Programmable inspection cycle permits predetermined constant throughput rate. Operator need only position the part for automatic measurement, allow the probe to engage the specimen, and then remove. This simple procedure is repeated until the lot is complete. Vibration Isolation Stand (optional) Specially designed active air isolation system works together with granite surface plate to provide a maximum of vibration control. Direct Reading or Comparator Keyboard & LED Display Depending on your accuracy requirements, the instrument can easily be operated in either mode. Clearly marked keys and a bright LED display makes instrument operation a breeze. Motorized Probe Go/No-Go Presets Touch activated two-speed measurement control eliminates operator infl uence. Automatic go/no-go decisions from operator-entered tolerance limits and actual measured values. Digital Laser Interferometer Wavelength of laser light used as basis for measuring. Operating principle insures maximum resolution, traceability and performance. Statistical Measurement Summation of all measurements is stored on command. Stats display indicates computed mean value and one standard deviation. Printer (optional) Convenient hard copy for automatic test record. >

Instrument Uncertainty: > 1, 2 5 + .5L Microinches (α2 std. dev.) .125 + .5L Microns (2 std. dev.) Repeatability: > 1 1.6 Microinches (ѱ2 std. dev.).04 Microns (2 std. dev.)Display Resolution:0.1 Microinch0.0025 Microns Measurement Range: 0-8.0 inches203 mm Maximum Specimen Size (Cylindrical Shape):15 inches x 8.3 inches high381 x 210 mm Measurement Probe Contact Force, Standard: 0.5 oz*14 grams*Measuring Probe Geometry:Tungsten Carbide Flat (1/10 wave)Diamond Tip (standard 0.125"/3mm radius) Mounts with ADG #4-48 adapterLED Data Display:16 Digit, Alpha-Numeric Electrical Requirements:110/120...
