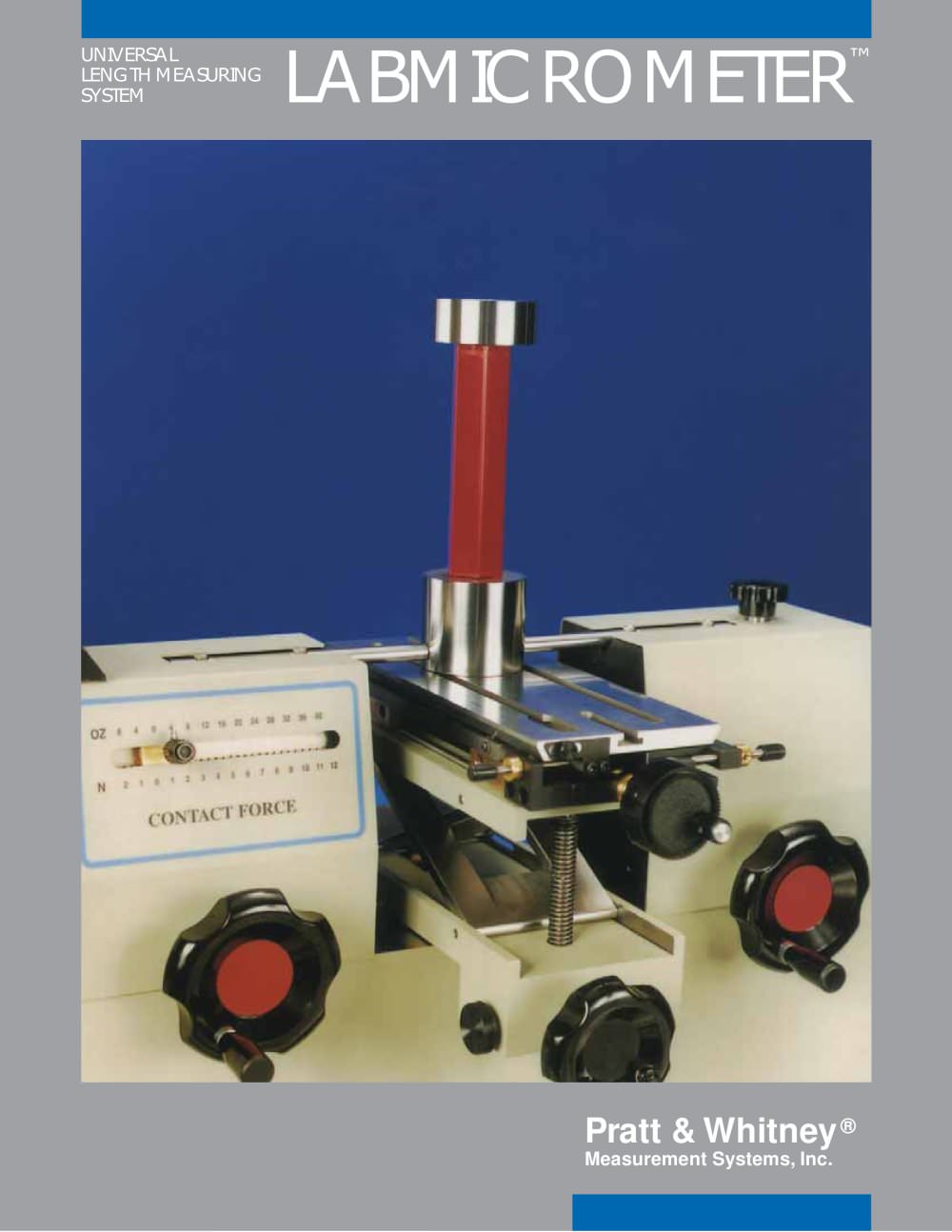

UNIVERSALLENGTH MEASURING SYSTEM

vary the size of the range to meet specifi c needs.Now that the system is calibrated, any external dimension specimen that falls within the calibrated range can be placed between the anvils. Once the headstock is advanced far enough to generate a ٓgo from the on-screen measurement indicator, the absolute measurement, traceable to NIST is displayed. That's all there is to it. Laser-Based LABMICROMETERԙ is designed to provide the ultimate in user-friendly operation while delivering calibration-quality accuracy and reproducibility. Our exclusive digital inter-ferometer measures internal and external...

Mechanical and Thermal Stability Multi-Axis Measuring Table (Optional) A rugged, time-tested, cast iron base ensures reproducible results. Five degrees of freedom, coarse/fi ne adjust, and integrated T-slots make fi xturing and part alignment quick. Swivel, two-axis centering, tilt, and elevation adjustments are simple to use. Modular Construction USB technology and PC facilitate in-fi eld serviceability. V-Mounted, Bi-Directional probes (Optional) Digital Laser Interferometer with Zero ABBE Offset Eliminates time-consuming setup changes and the replaceable contact points mean no anvils to lap....

Rectangular Gage Blocks Square Gage Blocks End Standards Plug Gages Pins Cylindrical Gages Threaded Plug Gages Ring Gages Threaded Ring Gages Snap Gages or Calipers Dial Indicators Your Precision Component > *The above represent the more popular applications. For additional applications, ask your local Pratt & Whitney Representative. size="-1">

Gage Management Our optional gage management module, designed in accordance with ISO 9000 and ISO 17025, puts gage information at your fi ngertips. It represents a logical addition to the LABMICROMETER because it makes storing, retrieving, and reporting gage information quite simple. You will be able to track and display gage history, wear data, current users, the product evaluated with the gage, calibration date, days since last calibration, and much more.Additional subsystems of the gage management module include gage studies, gage crib, gage preventative maintenance, and gage archives. With...
