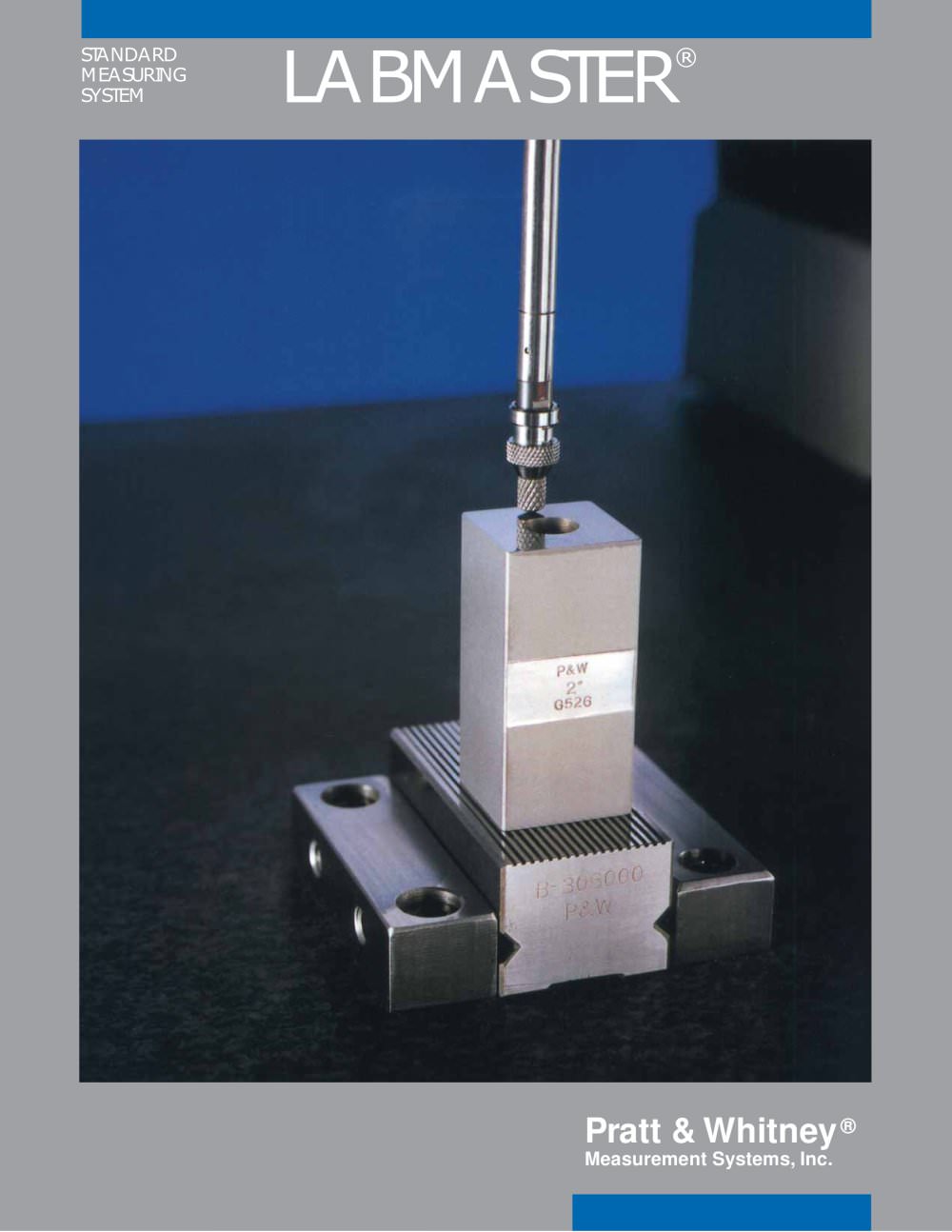

STANDARDMEASURING SYSTEM

Laser-Based LABMASTER is designed to provide the ultimate inuser-friendly operation while delivering calibration-quality accuracy and reproducibility. Our exclusive digital interferometer measures internal and external dimensions by comparing the measurement probe position to the wavelength of a laser light source, effectively coupling the wavelength of light to the part being measured. Our patented laser path is in line with the measurement axis to eliminate Abbe error.The thermal coefί́ cient of expansion for this laser By selecting the automatic cycle mode, the LABMASTER probe will raise...

Rigid Ring Design Direct Reading or Comparator Low expansion granite base maximizes repeatability and reproducibility while providing an integral reference surface. Depending on your accuracy requirements, the instrument can easily be operated in either mode. Statistical Measurement Motorized Probe Summation of all measurements is stored on command. Stats display indicates computed mean value and one standard deviation. Remote controlled probe of low expansion material improves system stability and eliminates operator inί̂ uence. Digital Laser Interferometer PC Control with our GageCal...

Square Gage Blocks Rectangular Gage Blocks Thin Gage Blocks Rectangular Gage Blocks Plugs/Pins Thread Wires*(Comparator Mode) Threaded Plugs* Spheres Your Precision Component > *force kit required size="-1">

PC Based Control Powerful and resourceful, our GageCal control software sets a new standard for user-friendly calibration. By controlling the operation of the LABMASTER and facilitating data collection, GageCal increases total measurement productivity. And with a graphics-rich user interface, youll be amazed with how simple it is to use.We designed GageCal to be intuitive and self-teaching. So much so, that the extensive context sensitive HELP screens are seldom called upon. Mouse or hot key driven, close probe icon(or presses the footswitch). GageCal displays the measurement in the...
