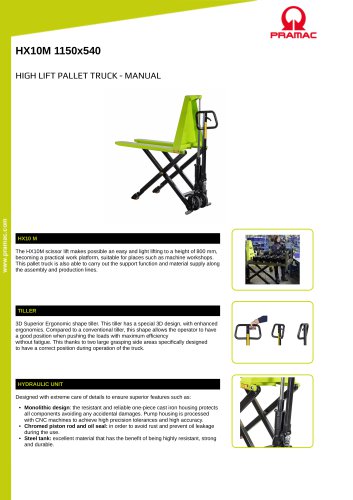

vyww. pramac.com HX10M 1150x540HIGH LIFT PALLET TRUCK - MANUAL HX10 M The HX10M scissor lift makes possible an easy and light lifting to a height of 800 mm, becoming a practical work platform, suitable for places such as machine workshops. This pallet truck is also able to carry out the support function and material supply along the assembly and production lines. 3D Superior Ergonomic shape tiller. This tiller has a special 3D design, with enhanced ergonomics. Compared to a conventional tiller, this shape allows the operator to have a good position when pushing the loads with maximum efficiency without fatigue. This thanks to two large grasping side areas specifically designed to have a correct position during operation of the truck. HYDRAULIC UNIT Designed with extreme care of details to ensure superior features such as: • Monolithic design: the resistant and reliable one-piece cast iron housing protects all components avoiding any accidental damages. Pump housing is processed with CNC machines to achieve high precision tolerances and high accuracy. • Chromed piston rod and oil seal: in order to avoid rust and prevent oil leakage during the use. • Steel tank: excellent material that has the benefit of being highly resistant, strong and durable.

SAFETY FRONT AND REAR STABILIZERS: The control linkage makes possible the entry on the closed side of the pallet by a slight lifting, which facilitates the successive handling phases. Furthermore, greater machine stability is achieved by using load rollers in a more advanced position and providing front stabilizers as standard. Work is made even more stable and safer with the rear stabilizers, also when the working height exceeds the 400 mm and in the case of heavy objects. MAXIMUM PRESSURE VALVE: Safety device that protects the transpallet against overloads. When the pressure inside the hydraulic...

1.6 Load centre distance 1.8 Load axle to end forks 2.2 Axle load, laden rear kg 713 2.2 Axle load, laden front kg 391 2.3 Axle load, unladen front kg 71 2.3 Axle load, unladen rear kg 33 3.1 Tyres: front wheels 3.1 Tyres: rear wheels 3.2 Tyre size: Steering wheels - Width 3.2 Tyre size: Steering wheels - Diameter 3.3 Tyre size: Load rollers - Diameter 3.3 Tyre size: Load rollers - Width 3.5 Tyre size: rear wheels - Q.ty (X=driven) 4.9 Height of tiller in drive position max h14 mm 1285 4.9 Height of tiller in drive position min h14 mm 735 4.20 Lenght to face of forks l2 mm 395 4.21 Overall width...

The information is aligned with the Data file at the time of download. Printed on 29/08/2026 (ID 15218) ©2026 | PR Industrial S.r.l. – Loc. Il Piano – 53031 Casole d’Elsa (SI) – ITALY. Company subject to the management and coordination of Generac Power Systems Inc.| All rights reserved | Image shown may not reflect actual package. Specifications subject to change without
