Powersolve Electronics

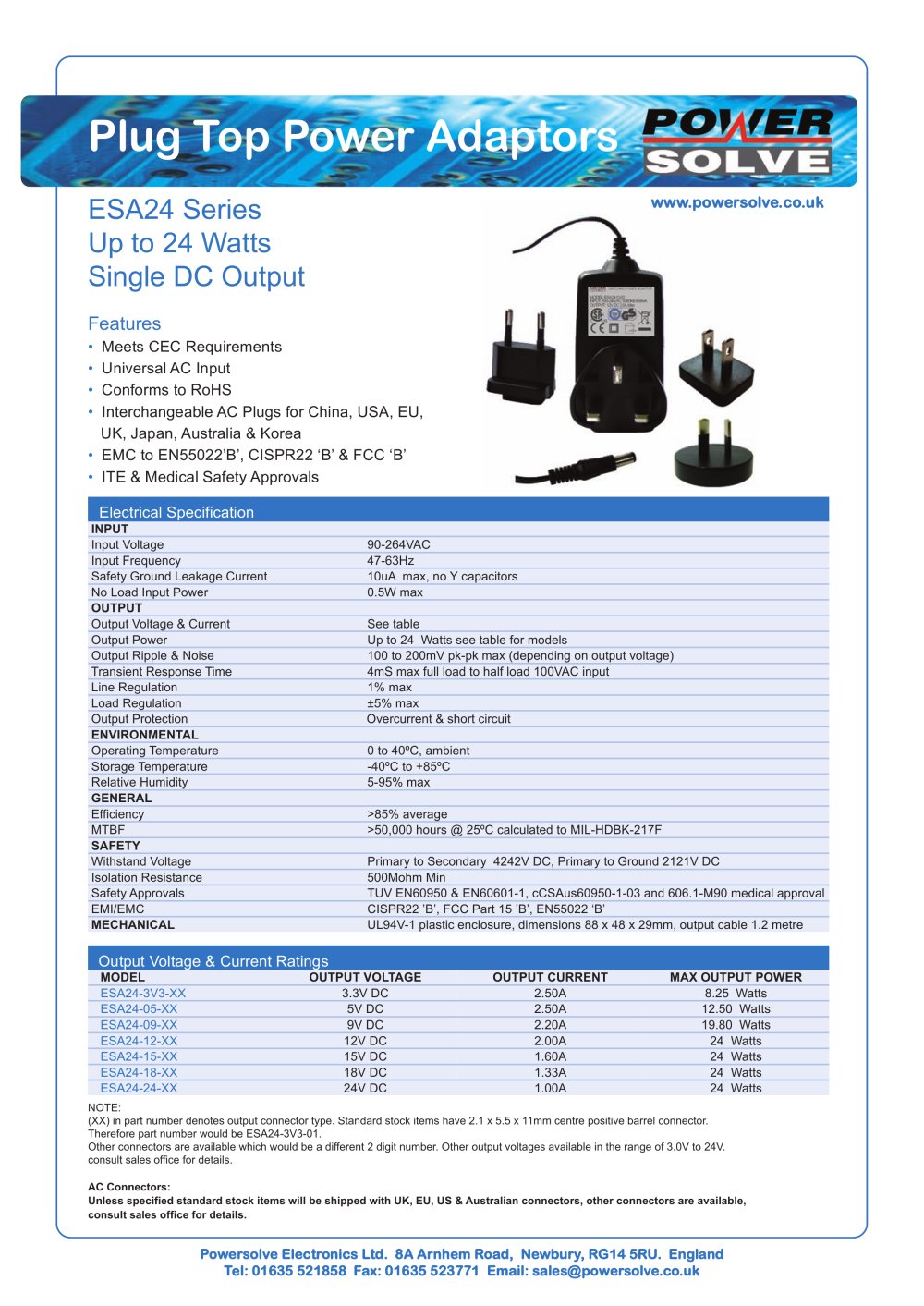

Plug Top Power Adaptors

Plug Top Power Adaptors

Product catalog summary

Overview: The ESA24 Series by Powersolve Electronics Ltd. offers single DC output power adaptors with a maximum output power of up to 24 Watts. These adaptors are designed for universal AC input and meet various international safety and EMC standards.

Specifications:

Input: Voltage range of 90-264VAC, frequency of 47-63Hz, and a maximum no-load input power of 0.5W.
Output: Voltage options range from 3.3V to 24V DC with varying current ratings, as detailed in the table. Maximum output power is 24 Watts, with output ripple and noise between 100 to 200mV pk-pk.
Protection: Includes overcurrent and short circuit protection.

Environmental Conditions:

Operating temperature ranges from 0 to 40ºC, with storage temperatures from -40ºC to +85ºC.
Relative humidity tolerance is 5-95%.

General Features:

Efficiency is greater than 85% on average.
MTBF is calculated at over 50,000 hours at 25ºC.
Safety approvals include TUV EN60950 & EN60601-1, cCSAus60950-1-03, and 606.1-M90 medical approval.
EMI/EMC compliance with CISPR22 ’B’, FCC Part 15 ’B’, and EN55022 ‘B’.

Mechanical Details: The adaptors feature a UL94V-1 plastic enclosure with dimensions of 88 x 48 x 29mm and a 1.2-meter output cable.

Additional Features:

Meets CEC requirements and conforms to RoHS standards.
Interchangeable AC plugs available for China, USA, EU, UK, Japan, Australia, and Korea.

Contact Information: Powersolve Electronics Ltd., 8A Arnhem Road, Newbury, RG14 5RU, England. Tel: 01635 521858, Fax: 01635 523771, Email: [email protected]
