Overview: The document provides technical specifications for the RP1100C Series, a 100 Watts Dual Stage Charger with universal AC input, designed for lead acid battery charging.

Key Features:

Universal AC Input: 90-264VAC, 47-63Hz (127-380VDC)
Convection cooled with output reverse polarity protection
Dual stage automatic charge control
Safety approvals: UL, CSA, CE marking
EMC Standards compliance: EN55014, EN60555-2,3, EN61000-4-2~6, EN61000-4-11

Electrical Specifications:

Inrush Current: 20A at 110VAC / 40A at 220VAC
Hold Up Time: 10ms
Short Circuit Protection: Relay opens
Overload Protection: Automatic Power Limit
Over Voltage Protection: Auto recovery
Ripple & Noise: 250mVp-p
Regulation: Line regulation ±1%, Load regulation ±2%
Efficiency: 75% Min. for 12V model, 78% Min. for 24V model

Operating Conditions:

Temperature: -15 to +50 °C
Humidity: 5-95% Relative Humidity, Non-condensing
Storage Temperature: -20 to +85 °C
Vibration: 2G, 10-500Hz across 3 axes

Model Specifications:

RP1100C-12F: Output Voltage +14.4V, Current 0A to 8A
RP1100C-24F: Output Voltage +28.8V, Current 0A to 4A

Charging Curve:

Fast Charge: 7A (3.5A) I rated, V Boost 14.4V (28.8V)
Maintenance: V Float 13.8V (27.6V)

Physical Characteristics:

Dimensions: 206(L) x 136(W) x 57(H) mm
Material: Aluminium, Colour: Blue

Catalog excerpts

90-264VAC Universal InputՕConvection cooledOutput Reverse Polarity ProtectionՕDual stage automatic charge control > Input:90-264VAC 47-63Hz (127-380VDC) Inrush Current:20A 110VAC / 40A 220VAC DC Output:See table Hold Up Time:10mS Short Circuit Protection:Relay opens Overload Protection:Automatic Power Limit Over Voltage Protection:Auto recovery Safety:UL, CSA Approvals, CE marking Ripple & Noise:See table Regulation:See table Charging:Automatic 2 stage charging Operating Temperature:-15 to +50 C Operating Humidity:5-95% Relative Humidity, Non condensing Storage Temperature:-20 to +85 аC Vibration:2G, 10-500Hz 3 axes EMC Standards:EN55014, EN60555-2,3, EN61000-4-2~6, EN61000-4-11 >

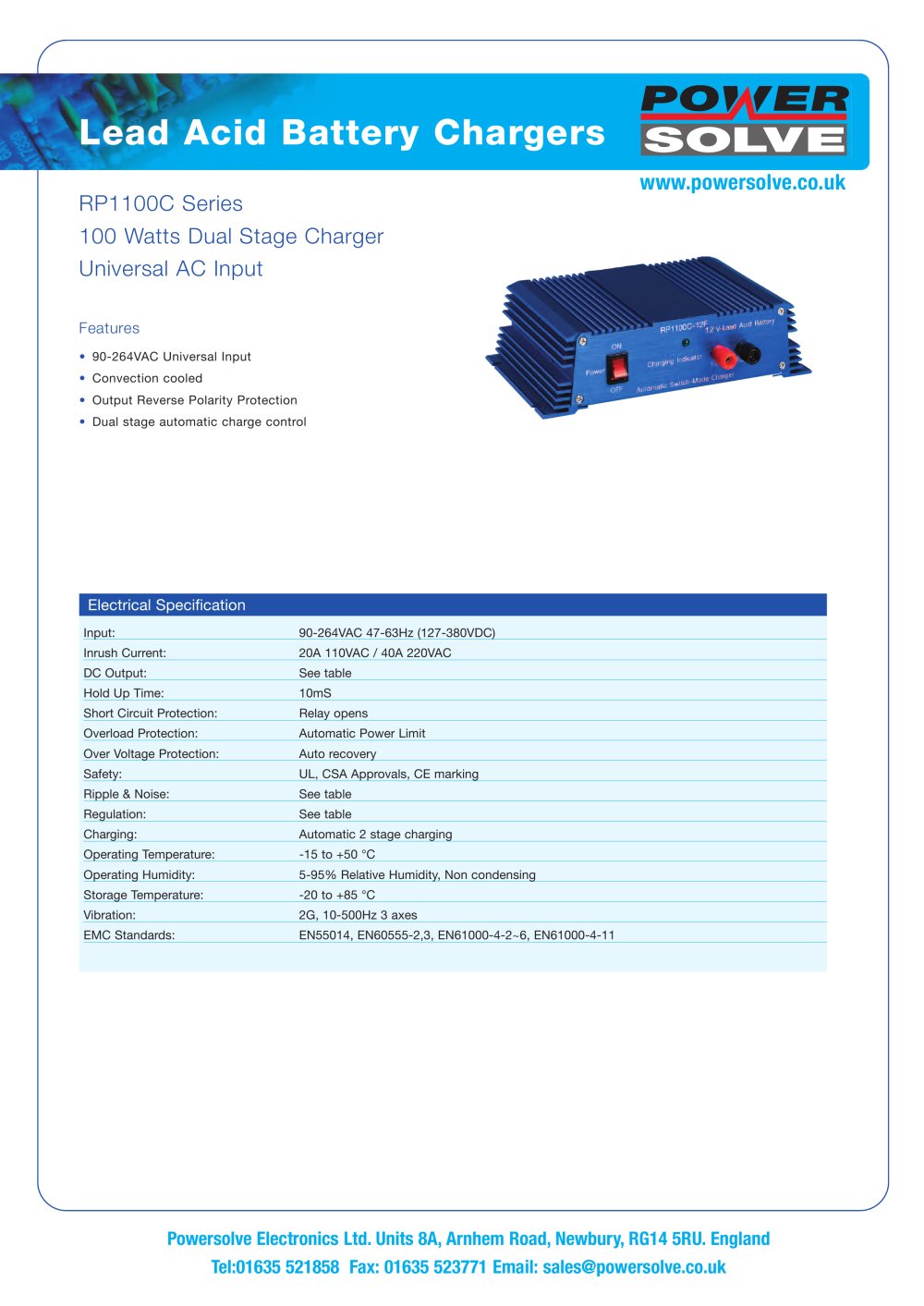

Open the catalog to page 1
