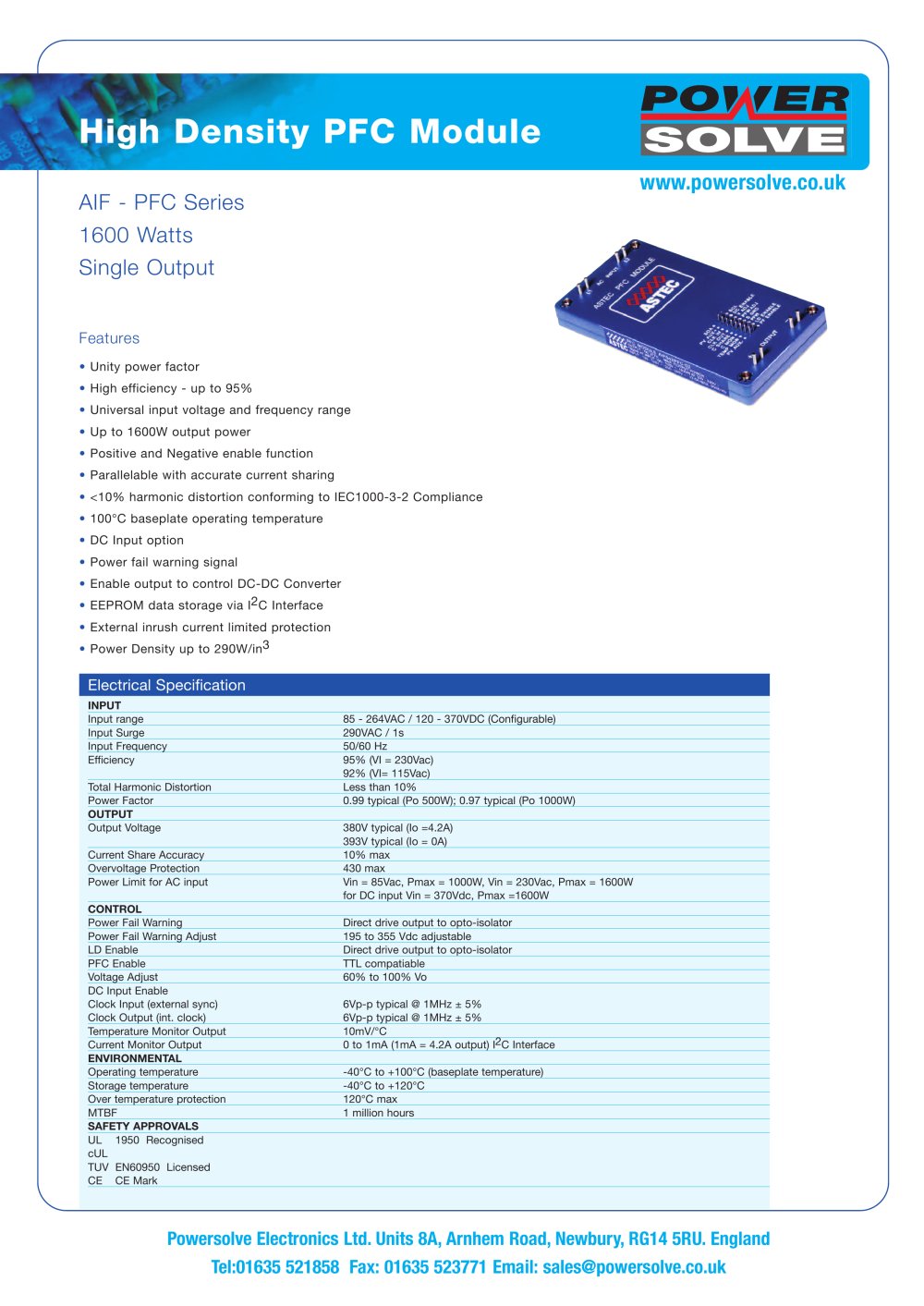

High Density PFC Module

High Density PFC Module

Product catalog summary

Overview: The document provides technical specifications for the High Density PFC Module, AIF-PFC Series, by Powersolve Electronics Ltd. This module offers a single output with a power capacity of 1600 Watts.

Features:

Unity power factor and high efficiency up to 95%.
Universal input voltage and frequency range.
Output power up to 1600W with positive and negative enable functions.
Parallel operation capability with accurate current sharing.
Less than 10% harmonic distortion, compliant with IEC1000-3-2.
Operating temperature up to 100°C at the baseplate.
DC input option and power fail warning signal.
EEPROM data storage via I2C interface and external inrush current protection.
Power density up to 290W/in³.

Input Specifications:

Input range: 85 - 264VAC / 120 - 370VDC (configurable).
Input surge: 290VAC for 1 second.
Input frequency: 50/60 Hz.
Efficiency: 95% at 230Vac, 92% at 115Vac.
Total harmonic distortion: Less than 10%.
Power factor: 0.99 typical at 500W, 0.97 typical at 1000W.

Output Specifications:

Output voltage: 380V typical at 4.2A, 393V typical at 0A.
Current share accuracy: 10% max.
Overvoltage protection: 430V max.
Power limit: 1000W at 85Vac, 1600W at 230Vac, 1600W at 370Vdc.

Control Features:

Power fail warning with adjustable range from 195 to 355 Vdc.
LD and PFC enable functions with TTL compatibility.
Voltage adjustability from 60% to 100% of Vo.
Temperature and current monitor outputs.
I2C interface for data communication.

Environmental Specifications:

Operating temperature: -40°C to +100°C (baseplate).
Storage temperature: -40°C to +120°C.
Over temperature protection: 120°C max.
MTBF: 1 million hours.

Safety Approvals:

UL 1950 Recognised, cUL, TUV EN60950 Licensed, CE Mark.

Model Descriptions:

AIF04ZPFC-011600W: Low profile PFC module for parallel operation with input current < 16Arms.
AIF04ZPFC-021600W: Designed for parallel operation with input current > 16Arms, requires external rail rectifiers.

Pin Assignments:

Input (AC): Pins 31-34.
Output (DC): Pins 21-24.
Control Pins: Various functions including temperature monitoring, current monitoring, clock input/output, and enable functions.
