DC-DC Converters

Product catalog summary

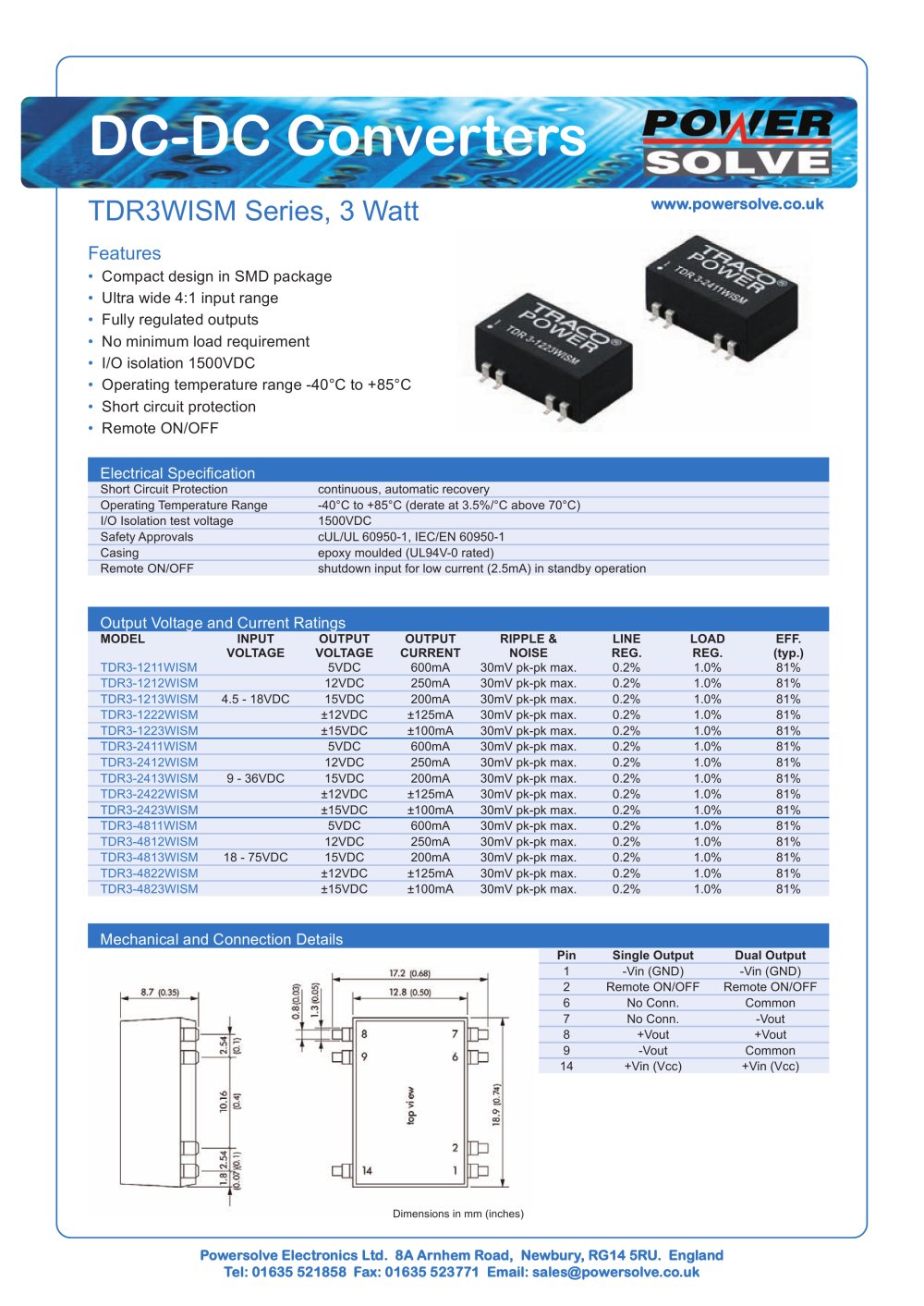

Overview: The TDR3WISM Series by Powersolve Electronics Ltd. is a range of 3 Watt DC-DC converters designed for various electronic applications. These converters feature a compact design, ultra-wide input range, and fully regulated outputs.

Electrical Specifications:

Short Circuit Protection: Continuous with automatic recovery.
Operating Temperature Range: -40°C to +85°C, with derating at 3.5%/°C above 70°C.
I/O Isolation Test Voltage: 1500VDC.
Safety Approvals: cUL/UL 60950-1, IEC/EN 60950-1.
Casing: Epoxy moulded, UL94V-0 rated.
Remote ON/OFF: Shutdown input for low current (2.5mA) in standby operation.

Output Voltage and Current Ratings: The series includes models with varying input and output voltage specifications, all maintaining a ripple and noise of 30mV pk-pk max, line regulation of 0.2%, load regulation of 1.0%, and efficiency of 81%.

Mechanical and Connection Details:

Pin Configuration: Single and dual output configurations with specific pin assignments for input, output, and remote ON/OFF functions.

Features:

Compact design in SMD package.
Ultra wide 4:1 input range.
Fully regulated outputs.
No minimum load requirement.
I/O isolation of 1500VDC.
Operating temperature range from -40°C to +85°C.
Short circuit protection.
Remote ON/OFF capability.

Dimensions: Provided in millimeters (inches).
