DC-AC Inverters

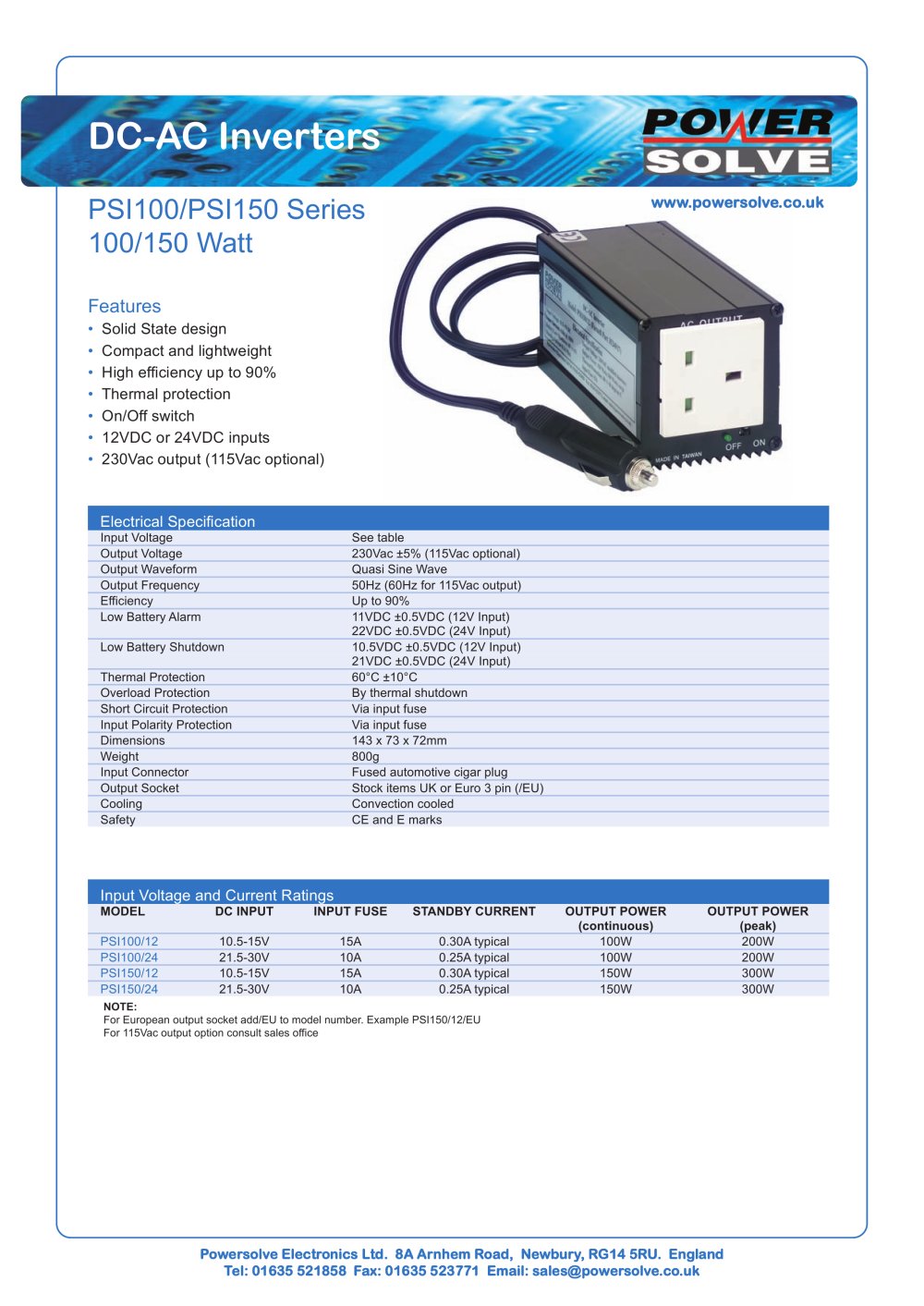

Product catalog summary

Overview: The PSI100/PSI150 Series by Powersolve Electronics Ltd. are DC-AC inverters designed for converting 12VDC or 24VDC inputs to a 230Vac output, with an optional 115Vac output. These inverters are compact, lightweight, and offer high efficiency up to 90%.

Key Features:

Solid State design
High efficiency up to 90%
Thermal protection and On/Off switch
Output voltage of 230Vac ±5% with a quasi sine wave
Output frequency of 50Hz (60Hz for 115Vac)
Low battery alarm and shutdown features
Thermal and overload protection
Short circuit and input polarity protection via input fuse
Convection cooled with CE and E marks for safety

Specifications:

Dimensions: 143 x 73 x 72mm
Weight: 800g
Input Connector: Fused automotive cigar plug
Output Socket: UK or Euro 3 pin

Electrical Specifications:

PSI100/12: 10.5-15V DC input, 15A input fuse, 0.30A standby current, 100W continuous output power, 200W peak output power
PSI100/24: 21.5-30V DC input, 10A input fuse, 0.25A standby current, 100W continuous output power, 200W peak output power
PSI150/12: 10.5-15V DC input, 15A input fuse, 0.30A standby current, 150W continuous output power, 300W peak output power
PSI150/24: 21.5-30V DC input, 10A input fuse, 0.25A standby current, 150W continuous output power, 300W peak output power

Additional Notes: For European output socket, add /EU to the model number. For 115Vac output option, consult the sales office.
