Overview
This document provides detailed specifications and descriptions of various air compressor models, including direct-driven, belt-driven, portable, trolley, and stationary types. These compressors comply with CE standards and are designed for efficiency, reliability, and safety.

Specifications
The compressors feature components such as a compressor unit, electric motor (single or three-phase), safety-check-exhaust valves, manometer, air pressure switch, electric cable, reducer, wheels, and towing handle. Some models also include soundproof hoods and additional safety features.

Models and Features

Direct Driven Compressors: Available in portable and trolley versions, these models feature concentric disc valves for high efficiency and reliability. Models include ED55D/15CAR, ED55D/24, and others, with varying tank capacities, power, and dimensions.
Belt Driven Compressors: Available in both portable and stationary versions, these compressors include V-belt safety guards and are designed for higher power applications. Models such as HD60CV/24 and HD105CV/270 are included.
Silenced Compressors: Models like HD60CVFSL are designed with sound-dampening materials to reduce noise levels, suitable for noise-sensitive environments.
Petrol and Diesel Engine Compressors: Designed for mobility, these compressors are equipped with petrol or diesel engines, suitable for outdoor and remote applications.

Performance Parameters
The document lists performance parameters for each model, including air intake per minute, pressure, RPM, weight, and dimensions, aiding in selecting the appropriate compressor based on specific needs.

Safety and Compliance
All compressors comply with CE standards, ensuring safety and reliability. Standard features include safety-check-exhaust valves and V-belt safety guards.

Optional Features
Some models offer optional features like wired magnetothermic engine protectors for three-phase models, condensate drain solenoid valves, and retarded starting electric boards.

Conclusion
This comprehensive range of compressors caters to various industrial needs, offering flexibility in terms of power, mobility, and application. Adherence to safety standards and advanced features make these compressors a reliable choice for different operational environments.

Additional Specifications
The document outlines specifications for belt-driven compressors on a base plate, specifically the new AD series, designed for autoclave applications where oil-free air is required. Models vary in power (HP and KW), air delivery (L/min), and dimensions.

Technical Details

Models: AD60C/BASE, AD60CV/BASE, AD60CV3/BASE
Power: 0.75 HP to 2.2 HP
Air Delivery: 170 L/min to 440 L/min
Dimensions: 540x320x400 mm to 560x320x400 mm
Maximum Pressure: 7 bar
Weight: 25 kg to 32 kg

Materials and Technology
The compressors are constructed with high-quality materials and advanced technology, ensuring a long lifespan without the need for maintenance.

Contact Information
Power System Srl, Via dell’Emigrante, 11/13, 36040 - Brendola (VI), Italy. Tel: ++39-0444-401270, Fax: ++39-0444-401165, Email: [email protected], Website: www.powersystem.it

Note
Technical specifications are subject to change without notice.

Catalog excerpts

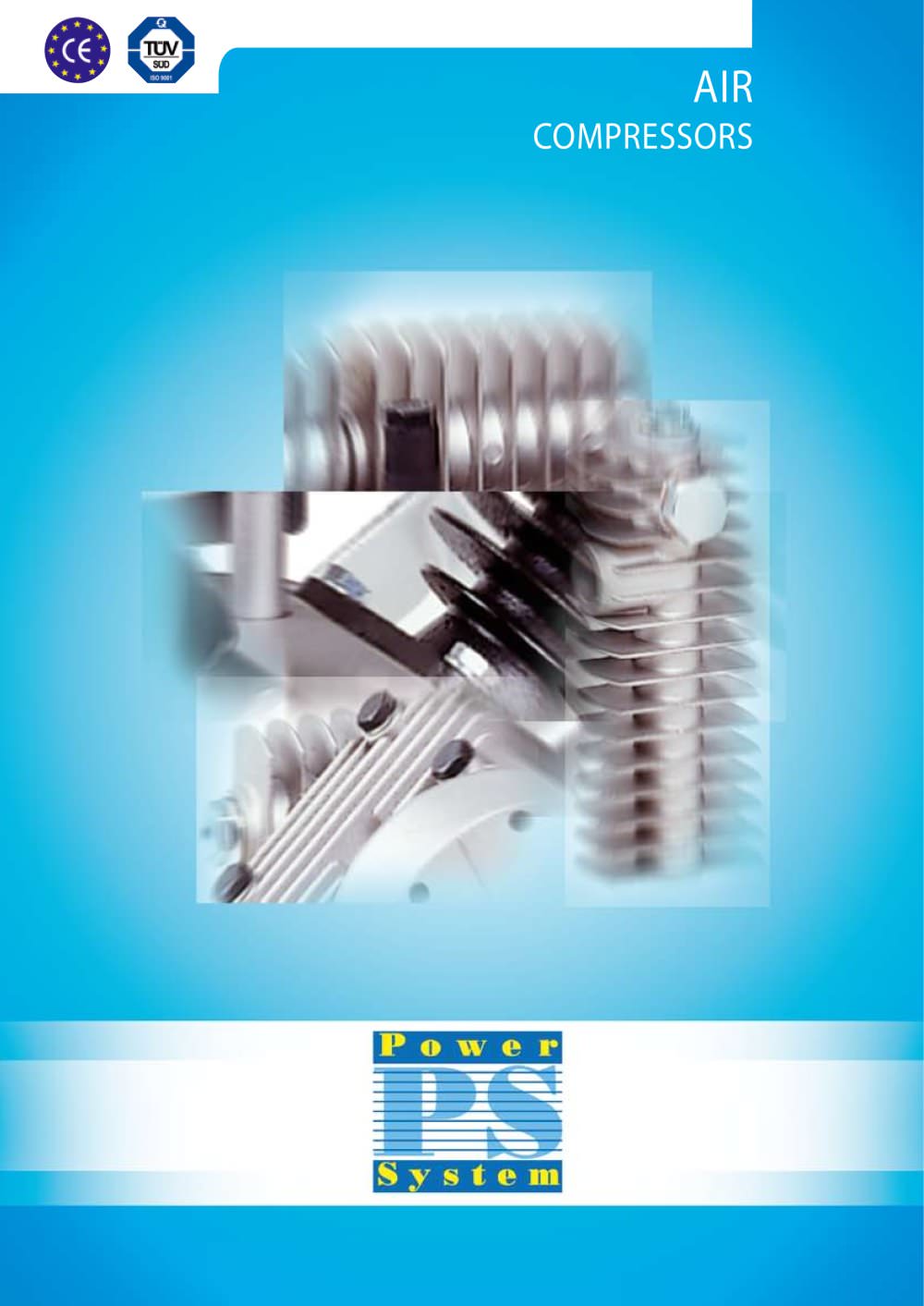

00-PORTADA CATALOGO BIOMASA A5 SANGRADO CON TEXTO tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:30.00pt "Arial", sans-serif; } Power System

Open the catalog to page 2

00-PORTADA CATALOGO BIOMASA A5 SANGRADO CON TEXTO tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 3

Gruppi compressori diretti carrellati su serbatoio a norme CE, costituiti da: compressore, motore elettrico monofase con termico, valvole di ritenuta, sicurezza e scarico, manometro, pressostato, cavo elettrico, riduttore, ruote e manico. Groups of direct driven compressors trolley on tank CE standards; they consist of: compressor, electric motor single phase with thermic, safety-check-exhaust valves, manometer, air pressure switch, electric cable, reducer, wheels and towing handle. I compressori della serie EXPORT si distinguono per l'elevata tecnologia costruttiva che prevede un funzionamento...

Open the catalog to page 4

Gruppi compressori diretti portatili e carrellati su serbatoio a norme CE, costituiti da: compressore, motore elettrico monofase con termico, valvole di ritenuta, sicurezza e scarico, manometro, pressostato, cavo elettrico, riduttore, ruote e manico. Groups of direct driven compressors portable and trolley on tank CE standards; they consist of: compressor, electric motor single phase with thermic, safety-check-exhaust valves, manometer, air pressure switch, electric cable, reducer, wheels and towing handle. HD50/10 HD5028/I0 HD50/24 HD5028/24 HD5228/24 HD5228/50 2 Modello Model Codice Code Serbatoio...

Open the catalog to page 5

Gruppi compressori a cinghia carrellati su serbatoio a norme CE, costituiti da: compressore, motore elettrico (termico su monofase), valvole di ritenuta, sicurezza e scarico, riparo antinfortunistico cinghie, manometro, pressostato, cavo elettrico, riduttore, ruote e manico. Groups of belt driven compressors on trolley tank CE standards; they consist of: compressor, etectric motor (thermic for single phase), safety-check-exhaust valves, V-belt safety guards, manometer, aìr pressure switch, electric cable, reducer, wheels and towing handle. HD60CV3/24-50-100-150-200 HD60CV/24-50-100 Modello Model...

Open the catalog to page 7

5 HD90CVBi/270 HD105CVB/270 HD105CV/270 GRUPPO 2 HD90CVBi/470 TANDEM HD105CVBi/470 TANDEM Con raffredatore in uscita per bistadio / Cooler for two stages HD105CV/TANDEM OPTIONAL OPTIONAL * Bi = Bistadio Modello Model Cod. 3 Phase Stadi Stages Serbatoio Tank Aria asp. al 1’ Air intake for min. Pressione Pressure Giri al min. r.p.m. Peso Weight (kg) Dimensioni Dimensions (mm) N. Cilindri Nr. Cylinders Potenza Power Elettrocompressori da 4 a 7,5 HP monostadio e bistadio Electro compressors 4-7,5 HP one and two stages Lt HP KW L / min L P H max bar Gruppo 2 OPTIONAL HD70CV/200-270 HD90CV/470T HD105CV/270T...

Open the catalog to page 8

Compressori fissi silenziati a cinghia, a norme CE, costituiti da: compressore, motore elettrico monofase (con termico) o trifase (con salvamotore), valvole ritenuta, sicurezza e scarico, manometro, pressostato, riduttore, ruote, manico, cappotta rivestita di speciali materiali fonoassorbenti con pannello apribile per eventuali controlli. Belt silenced stationary compressors, tank CE standards, consisting of: compressor, electric motor l -phase (with thermic) or-3-phase (with motor protector), safety-check-exhaust valves, manometer, air pressur switch, reducer, soundproof hood lined with special...

Open the catalog to page 9

HD60CV3sp Benz. Modello Model Codice Code Serbatoio Tank Aria asp. al 1’ Air intake for min. Pressione Pressure Giri al min. r.p.m. Peso Weight (kg) Dimensioni Dimensions (mm) N. Cilindri Nr. Cylinders Potenza Power HD60CV/24 Benz. HD60CV/50 Benz. HD60CV/100 Benz. HD60CV/150 Benz. HD60CV3sp/10 Benz. HD60CV3/50 Benz. HD60CV3/100 Benz. HD60CV3/150 Benz. HD60CV3/200 Benz. HD70CV/200 Benz. HD90CV/200 Benz. 070146 070147 070148 070149 070186 070187 070188 070189 070150 070190 070191 24 50 100 150 10 50 100 150 200 200 200 2 2 2 2 3 3 3 3 3 2 2 5,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5 8 11 3,7 3,7 3,7 3,7...

Open the catalog to page 10

Gruppi compressori a cinghia su basamento a norme CE, costituiti da: compressore, motore elettrico (termico su monofase), riparo cinghie antinfortunistico, basamento in acciaio. Groups of belt compressors on base plate CE standards, consisting of: compressor, electric motor (thermic for sngle phase), V-belt safety guards, steel base plate. HD70CV-BASE HD90CVBi-BASE HD60CV-BASE OPTIONAL OPTIONAL OPTIONAL OPTIONAL 8 Modello Model Cod. 1 Phase Cod. 3 Phase Serbatoio Tank Aria asp. al 1’ Air intake for min. Pressione Pressure Giri al min. r.p.m. Peso Weight (kg) Dimensioni Dimensions (mm) N. Cilindri...

Open the catalog to page 11

Serie unificata gruppi compressori diretti completi di filtri aspirazione, tappi controllo-livello olio + collettore. Unified series bett driven compressor pumps complete of intake filters, oil level-control plugs + manifold HD52D HD50D HD5028D HD55D HD5528D HD60DV-HD65DV OPTIONAL Gruppi compressori DIRETTI GRUPPO EXPORT - DIRECT DRIVEN compressor pumps SERIES EXPORT Gruppi compressori DIRETTI Gruppo 1 - DIRECT DRIVEN compressor pumps series 1 TERMICO “WEBER” OPTIONAL TERMICO “WEBER” OPTIONAL VALVOLA START COLLETORE TERMICO “WEBER” Serie gruppi compressori diretti 1450/2850 rpm a valvola concentrica...

Open the catalog to page 12

Serie unificata gruppi compressori a cinghia completi di volano, filtri aspirazione, tappi controllo-livello olio, collettore. Unified series belt driven compressor pumps complete of flywheel, intake filters, oil level-control plugs, manifold Serie unificata gruppi compressori a cinghia completi di volano, filtri aspirazione, tappi controllo-livello olio e collettore. Unified series belt driven compressor pumps complete of fly-wheel, intake fitters, oil level-control plugs and manifold. HD52C HD60C HD70CV HD90CVBistadio HD105CVBistadio HD60CV3 HD52CV3Bistadio HD52CV HD60CV Gruppi compressori...

Open the catalog to page 13

I modelli ECOLOGICAL-AIR sono stati progettati impiegando materiali d'alta qualità e tecnologie d'avanguardia. Questi compressori servono per soddisfare le particolari esigenze del settore odontoiatrico-chimico-alimentare. Vengono forniti completi di volano, filtri aspirazione e tubo collettore D.10 per AD60CV. The compressors ECOLOGICAL-AIR have been made with high quality materials according to the latest technologies. These compressors satisfy the particular requirements of customers as dentists or food-chemical industrìes. They are complete of fly-wheel, intake fìlters and tube manifold D.1O...

Open the catalog to page 14
