PeakSwitch™ Family

1 / 4 PagesView full catalog

PeakSwitch™ Family

Product catalog summary

Product Highlights

Simple ON/OFF control without the need for loop compensation.
Capable of delivering peak power up to three times the maximum continuous output power.
Operates at 277 kHz during peak power to reduce transformer size.
Features tight I2f tolerances and minimal temperature variation for easier design and cost reduction.
Adaptive switching cycle on-time extension increases low line peak output power, minimizing bulk capacitor size.
High bandwidth ensures fast turn-on with no overshoot and excellent transient load response.

High Performance at Low Cost

Suitable for applications with large peak to continuous load ratio requirements.
Programmable smart AC line sensing for latching shutdown during faults.
Adaptive current limit reduces output overload power.
Accurate hysteretic thermal shutdown with automatic recovery for system-level overload protection.
Low component count for higher reliability and single-side PCB.
Frequency jittering reduces EMI filter cost.

EcoSmart® - Energy Efficiency

Exceeds California Energy Commission, ENERGY STAR, and EU requirements.
No-load consumption is less than 200 mW at 265 VAC input.
Standby output power is ≥0.6 W for 1 W input power.
Sleep mode power is ≥2.4 W at 3 W input.

Output Power Table

Product	230 VAC ±15%	85-265 VAC
PKS603 P	13 W / 32 W	9 W / 25 W
PKS604 P	23 W / 56 W	16 W / 44 W
PKS604 Y/F	35 W / 56 W	23 W / 44 W
PKS605 P	31 W / 60 W	21 W / 44 W
PKS605 Y/F	46 W / 79 W	30 W / 58 W
PKS606 P	35 W / 66 W	25 W / 46 W
PKS606 Y/F	68 W / 117 W	45 W / 86 W

Typical Applications

Inkjet Printer
Data Storage
Audio Amplifier
DC Motor Drives

Design Tools and Support

Data Sheet, Application Note, Engineering Report, and Design Idea available for download.
PI Expert™ Suite for power supply design, including transformer design.
Reference Design (DAK-93) includes a power supply, sample devices, unpopulated PCB, data sheet, and engineering report.

Operation and Design Highlights

Configured as a flyback converter with an internal oscillator frequency of 277 kHz.
Feedback from the output regulates the output voltage by skipping MOSFET switching cycles.
Capable of delivering peak power pulses up to 81 W for up to 50 ms while maintaining output voltage regulation.
Key design points include setting the reset time of the latched shutdown function and thermal considerations for the PeakSwitch IC and components.

Catalog excerpts

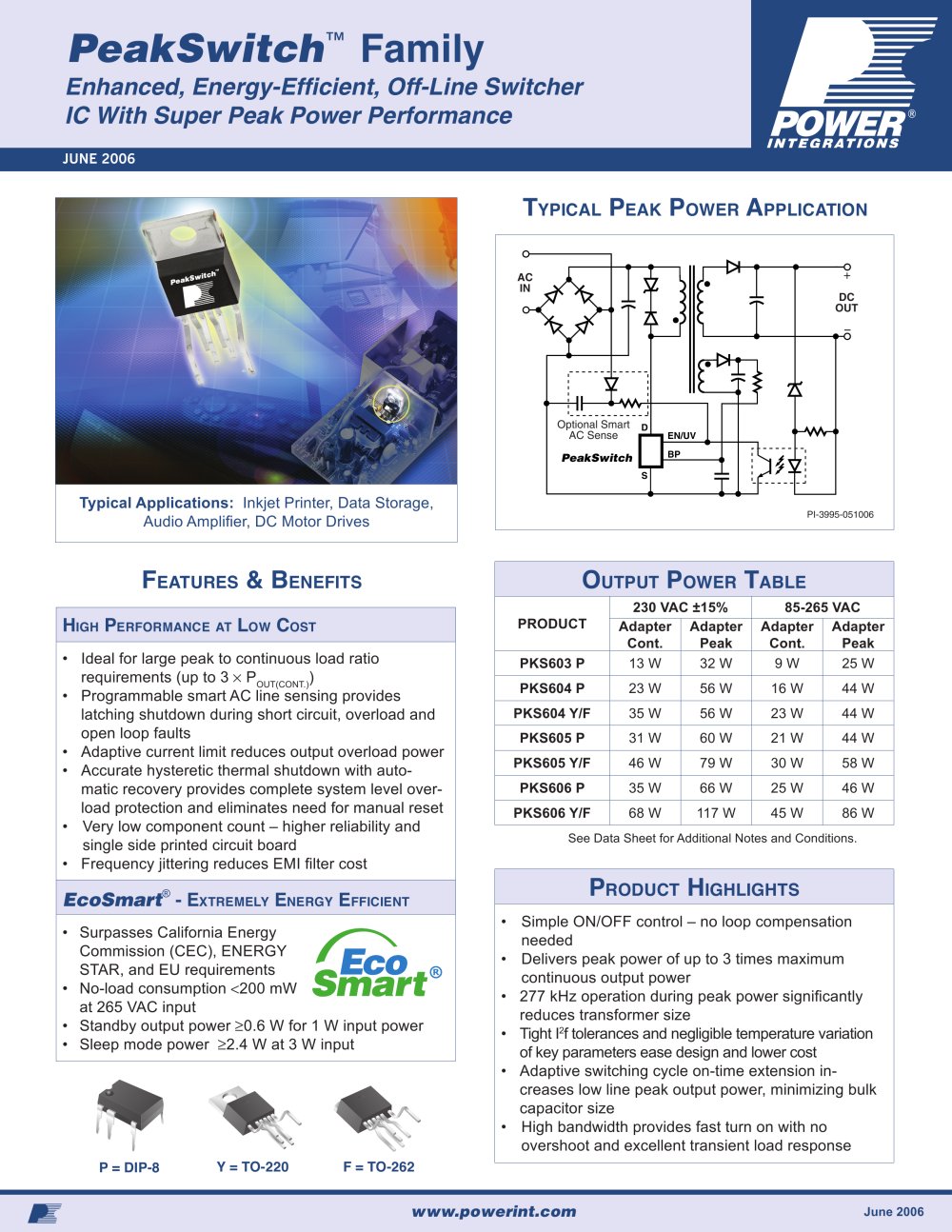

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:12.00pt "Arial", sans-serif; } .font6 { font:14.00pt "Arial", sans-serif; } .font7 { font:15.00pt "Arial", sans-serif; } .font8 { font:23.00pt "Arial", sans-serif; } .font9 { font:24.00pt "Arial", sans-serif; } PeakSwitch Family Enhanced, Energy-Efficient, Off-Line Switcher IC With Super Peak Power Performance INTEGRA TًOMS JUNE 2006 Typical Peak Power Application AC IN O ■f-o J_11_ 1 AAAi L '- Optional Smart p AC Sensש PeakSwitch PI-3995-051006 Features & Benefits Output Power Table High Performance at Low Cost 230 VAC ±15% 85-265 VAC PRODUCT Adapter Cont. Adapter Peak Adapter Cont. Adapter Peak PKS603 P 13 W 32 W 9 W 25 W PKS604 P 23 W 56 W 16 W 44 W PKS604 Y/F 35 W 56 W 23 W 44 W PKS605 P 31 W 60 W 21 W 44 W PKS605 Y/F 46 W 79 W 30 W 58 W PKS606 P 35 W 66 W 25 W 46 W PKS606 Y/F 68 W 117 W 45 W 86 W Ideal for large peak to continuous load ratio requirements (up to 3 x POUT(CONT)) Programmable smart AC line sensing provides latching shutdown during short circuit, overload and open loop faults Adaptive current limit reduces output overload power Accurate hysteretic thermal shutdown with autoխmatic recovery provides complete system level over- load protection and eliminates need for manual reset Very low component count - higher reliability and single side printed circuit board Frequency jittering reduces EMI filter cost Օ Օ See Data Sheet for Additional Notes and Conditions. EcoSmart - Extremely Energy Efficient Product Highlights Surpasses California Energy Commission (CEC), ENERGY Smart Simple ON/OFF control - no loop compensation needed Delivers peak power of up to 3 times maximum continuous output power 277 kHz operation during peak power significantly reduces transformer size Tight I2f tolerances and negligible temperature variation of key parameters ease design and lower cost Adaptive switching cycle on-time extension in-creases low line peak output power, minimizing bulk capacitor size High bandwidth provides fast turn on with no overshoot and excellent transient load response STAR, and EU requirements No-load consumption <200 mW at 265 VAC input Standby output power >0.6 W for 1 W input power Sleep mode power >2.4 W at 3 W input P = DIP-8 Y = TO-220 F = TO-262 www.powerint.com June 2006
