PA_CP121_EN

Product catalog summary

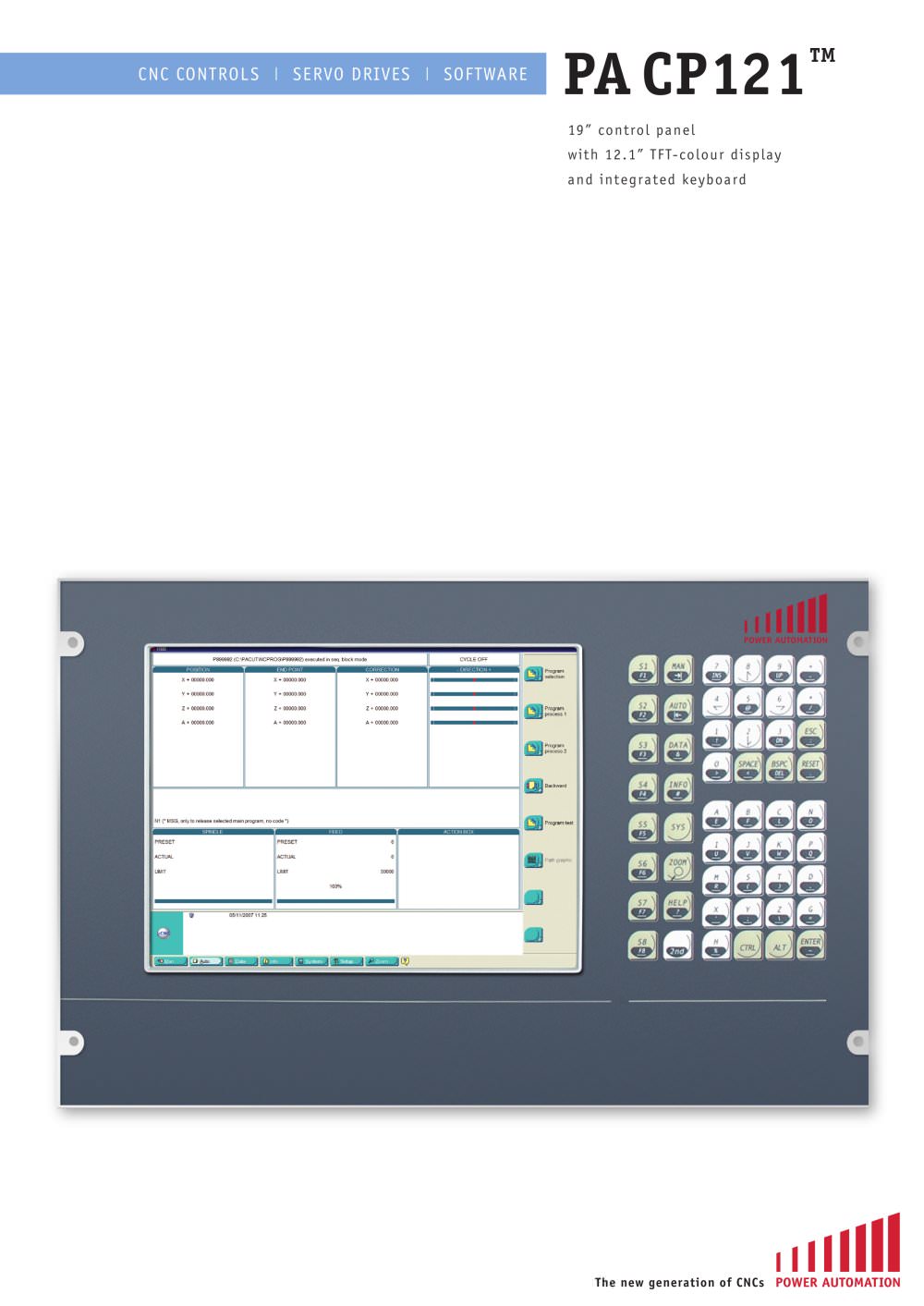

Overview: The PA CP121™ is a 19-inch control panel featuring a 12.1-inch TFT-color display and an integrated keyboard. It is designed for use with Power Automation CNC systems, specifically the PA 8000e™ and PA 8000 LW™ models.

Specifications:

Display: 12.1-inch TFT-color with a resolution of 800 x 600 pixels.
Dimensions: 482 x 311 x 54 mm.
Protection: IP65 rating for the front side, suitable for rough environments.
Construction: Solid aluminum frame with optically two-sided non-reflecting glass.
Interfaces: VGA 15 Pin D-sub, DIN 5pol for keyboard connection, with an option for a second keyboard.
Distance: Can be mounted up to 10 meters from the CNC.

Features:

High-quality, robust keyboard with 8 vertical keys for HMI-soft and function keys, numeric and alphanumeric input.
Additional customization options with extra keys, hand wheels, and Gray code switches.
Compatible with PA IK-M™ industrial keyboard for optimal performance.

Recommendations: The panel is recommended for environments requiring a durable and compact CNC control solution, with the ability to integrate additional input devices as needed.

Contact Information: Power Automation GmbH, Gottlieb-Daimler-straße 17/2, 74385 Pleidelsheim, Germany. Phone: +49 (0)7144/899-0, Fax: +49 (0)7144/899-299, Email: [email protected], Website: www.powerautomation.com
