VPX Series Catalog

Product catalog summary

Technical Characteristics

Materials and Finishes: The insulator is made of glass-filled polyester, UL 94V-0, in blue color. Contacts are precision-machined copper alloy with gold flash over nickel plate, with other finishes available upon request.
Electrical Characteristics: Contact current ratings are detailed per UL 1977. Size 20 power contacts support 24 amperes continuously with all contacts under load. Initial contact resistance is 0.001 ohms maximum per IEC 512-2, Test 2b. Insulator resistance is 5 G ohms per IEC 512-2, Test 3a. The working voltage is 200 V r.m.s, with a minimum creepage and clearance distance of 2.0 mm [0.079 inch].
Mechanical Characteristics: Features a blind mating system with a 1.0 mm [0.039 inch] diametral misalignment allowance. Polarization is provided by contact arrangement. Fixed contacts are for printed board terminations, with female contacts featuring a 'Closed Entry' design. Fixed contact retention in the connector body is 40 N [9 lbs.]. Sequential contact mating system is available, with power enabled through a last mate contact within the VPX Series or another connector. Mechanical operations are rated for a minimum of 250 couplings.
Climatic Characteristics: The working temperature range is -55˚C to +125˚C.

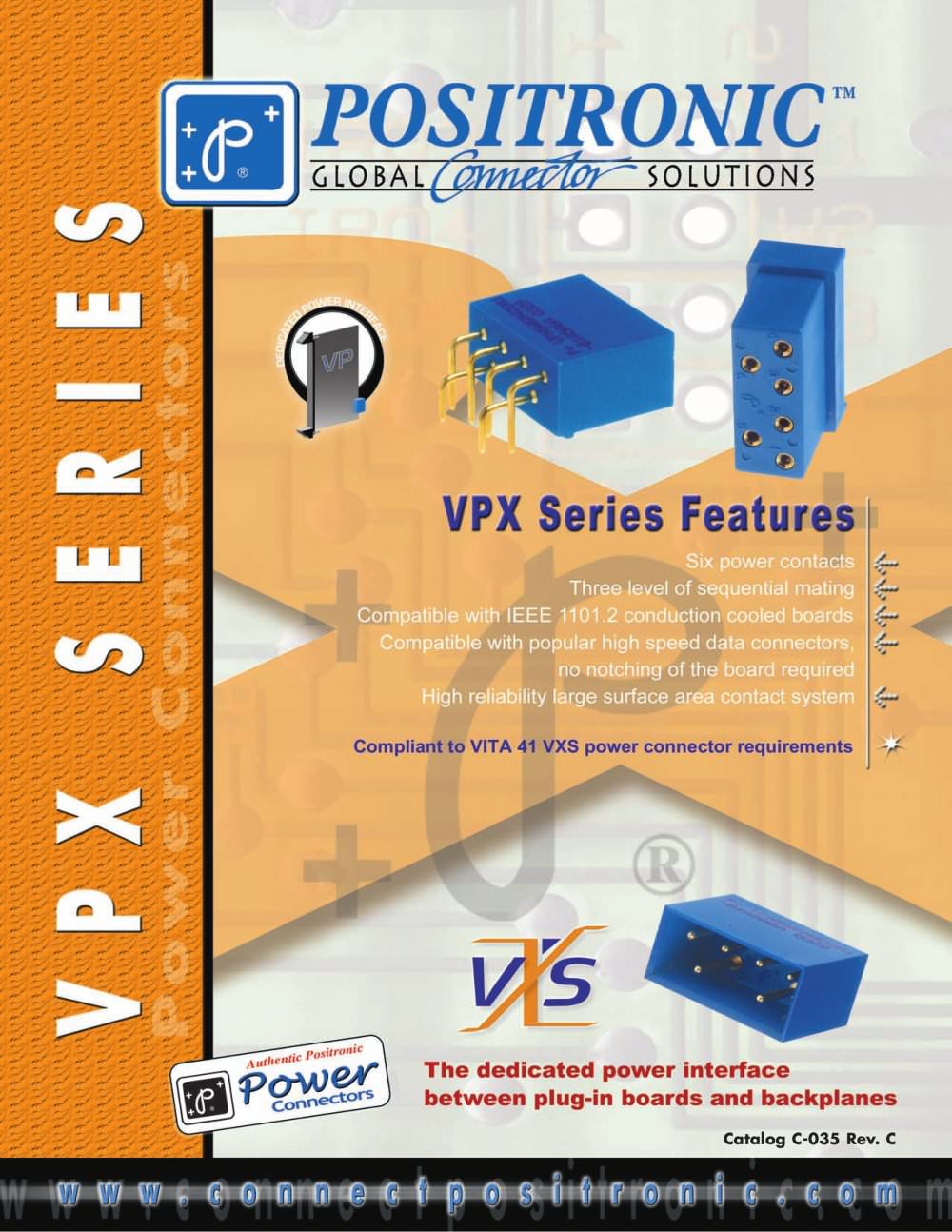

Application Features

The VPX series supports VITA 41 VXS (VME Switched Serial) for high bandwidth transfer between VMEbus cards, providing a dedicated power interface between boards and backplanes.
The series is compatible with conduction cooled boards per IEEE 1101.2, featuring multiple power contacts, three levels of sequential mating, and high reliability.

Ordering Information

Connectors are specified using a code numbering system, with options for environmental compliance, connector variants, gender, type of contact, and contact plating.
RoHS compliance options are available, and specific mounting screws are recommended for PCB attachment.

Dimensions and Tolerances

All dimensions are in millimeters [inches] and are subject to change. Tolerances are specified for various dimensions, including contact mating and termination diameters.

Additional Notes

Products may be protected by US patents, and the information is proprietary to Positronic and its subsidiaries.
Technical information is provided at the user's discretion and risk, with no responsibility assumed by Positronic Industries for results or damages incurred from its use.

Catalog excerpts

PICMG and the PICMG logo are registered trademarks of the PCI Industrial Computers Manufacturers Group. > Insulator: Glass-filled polyester, UL 94V-0,blue color. Blind MatingSystem: Male and female connectorbodies provide ғlead-infor 1.0 mm [0.039 inch] diametral misalignment. Polarization: Provided by contact arrangement. Contacts: Precision-machined copper alloy with gold flash over nickel plate.Other finishes available upon request. Fixed Contacts: Printed board terminations.Female contacts feature ԓClosed Entrydesign. Fixed Contact Retentionin Connector Body: > 40 N [9 lbs.] Contact Current...

Open the catalog to page 2

NOTE: *Indicates contact platingoptions for connectors. See Step 7 of ordering information on page 6. 19.80 [0.780] MAX. > 4 32 1 9.50[0.374] MAX. 7.10 [0.280] > 6 5 VPX6W6F9300A1 shown for reference www.connectpositronic.com NOTE: See next page for suggested printed board hole sizes. DIMENSIONS ARE IN MILLIMETERS [INCHES].ALL DIMENSIONS ARE SUBJECT TO CHANGE.

Open the catalog to page 3

BOARDTYPE CONTACTSIZE / TYPE DRILLHOLE SIZE RECOMMENDED PLATING FINISHEDHOLE SIZES TIN-LEAD SOLDER PCB 20BI-SPRING - - - 3[0.0001] minimum solder over 25յ[0.0010] min.copper 1.19 0.05 [豸0.0470.002] Note:For PCB plating compositions,i.e.ENIG (Electroless Nickel,Immersion Gold),consult Technical Sales. THEN CHOOSE STEPS BELOW FOR SEQUENTIAL MATING SYSTEM CONTACTS A 1 B 2 B 3 C 4 C > STEP 1 STEP 9 Specify code for most frequentlyused contact mating length.This length is used for all contacts not specified in steps 2 through 9.Position number for first speciallength contact. Length of contact specified...

Open the catalog to page 4

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:16.00pt "Arial", sans-serif; } .font5 { font:22.00pt "Arial", sans-serif; } .font6 { font:6.00pt "Arial Black", sans-serif; } .font7 { font:16.00pt "Arial Black", sans-serif; } .font8 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font9 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font10 { font:13.00pt "Times New Roman", serif; } TEMPERATURE RISE...

Open the catalog to page 5

Specify Complete Connector By Selecting An Option From Step 1 Through 7 STEP 1 2 3 4 5 6 7 8 9 EXAMPLE VPX 6W6 F 93 A1 /AA > STEP 9 - SPECIAL OPTIONS Sequential mating system -See page 4 for details. STEP 1 - BASIC SERIES CONTACT TECHNICAL SALES FOR SPECIAL OPTIONS VPX - VP Series N I C I N D U R O S T I T R S I E O S STEP 8 - ENVIRONMENTAL COMPLIANCE OPTIONS P STEP 2 - CONNECTOR VARIANTS Օ p Compliant e r C E E U / D 5 i r e 9 c t i / v e 2 2 /AA - Compliant per EU Directive2002/95/EC (RoHS) 6W6 - All contact positionspopulated. Note: If compliance to environmental legistationis not required,...

Open the catalog to page 6
