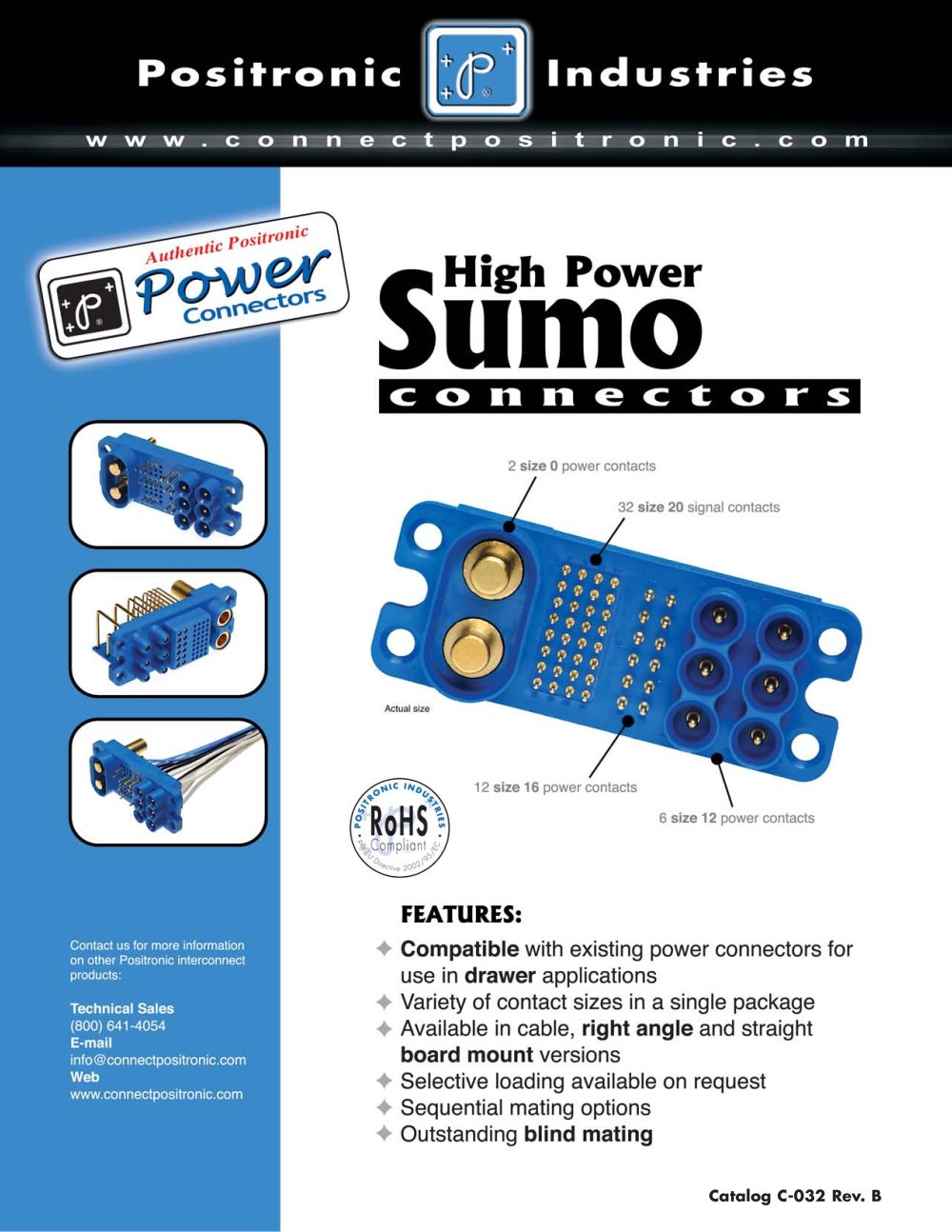

Product catalog summary

About Positronic Industries
Positronic Industries, established in 1966, specializes in high-quality interconnect products. The company is recognized for its comprehensive capabilities, including design, tooling, machining, molding, plating, and quality assurance, all aimed at providing quick and efficient service.

Dimensional Tolerances
Specifications for dimensional tolerances include ±0.03 mm for male contact mating diameters, ±0.08 mm for contact termination diameters, ±0.13 mm for other diameters, and ±0.38 mm for all other dimensions.

Patents
The company's products are protected by several US patents and patents in Canada, with additional patents pending.

Complete Capability

Design & Development: Focus on creating new and modified connectors.
Tooling: Provides 80% of new tooling for manufacturing.
Machining: Utilizes automatic screw machines for precision.
Molding: Capable of producing plastic components with overmold capability.
Plating: Offers finishes like gold, conforming to military specifications.
Quality Assurance: ISO 9001 certified, with extensive testing.
Inventory: Maintains large stock for quick shipments.
Sales & Service: Global presence with trained sales staff.

Materials and Finishes
Insulators are made from glass-filled polyester, and contacts are precision-machined copper alloy with optional solder-coated terminations. Contacts have a gold flash over a nickel plate finish.

Electrical Characteristics
Contact current ratings vary by size, with a maximum of 200 amperes for size 0 contacts. Voltage proof and working voltage specifications are detailed for different contact sizes.

Mechanical Characteristics
Features include a blind mating system, removable contacts, and resistance to solder heat, suitable for both printed board and panel mounting.

Climatic Characteristics
Operating temperature ranges from -55°C to +125°C.

Technical Information
Dimensions are provided in millimeters and inches, with detailed diagrams and specifications for various connector types and sizes.

Part Numbers and Threads
Various part numbers are listed with corresponding thread specifications, including SMET10S, SMET10M, and others, with threads like 1/4-20 UNC 2A and M6 X 1.

Contact Crimping Procedure
Steps include stripping wire to the indicated length, crimping with appropriate tools, and inspecting the crimp for tensile strength and visibility of strands through the inspection hole.

Crimping Tools and Specifications
Tools are specified for different contact sizes, with recommended tensile strengths for various wire sizes.

Ordering Information
The ordering process involves selecting options from steps 1 through 9, covering series, variants, termination type, mounting style, guides, plating, and compliance options.

Connector Features and Qualifications
Connectors are available in various configurations and meet standards like MIL-DTL-24308 and IP67, featuring hot swap capability and AC/DC operation.

Contact Sizes and Current Ratings
Contact sizes range from 0 to 22, with current ratings up to 150 amperes for power contacts and up to 40 amperes for other configurations.

Global Locations
Positronic Industries operates in North America, Asia/Pacific, and Europe, with contact information available for each region.

Catalog excerpts

Design & Development Designs new connectors and modifies existing connectors to meet industry requirementsՕ Continuously conducts marketing studies to identify industry needs for new products Ongoing interest in unique connector designs Tooling Օ Tooling support for all manufacturing areas within company Provides 80% of new tooling, punch press dies, molds, jigs and fixtures used at Positronic factory locations worldwide > Machining Molding Finished Stock Inventory Machining Օ Automatic screw machines produce finely crafted contacts and hardware for connector bodies Trained technicians operate...

Open the catalog to page 2

Positronic Industriesconnectpositronic.com TECHNICAL INFO Insulator:Glass-filled polyester, UL 94V-0,blue color.Contacts:Precision-machined copper alloywith gold flash over nickel.Solder- coated terminations optional.Other finishes available upon request.Blind Mate Guides:Stainless steel, passivated.Float Mount Screw:Stainless steel, passivated. Blind MatingSystem:Blind mate guides allow for misalign-ment up to 4.00 mm [0.157 inch] Polarization:Provided by connector body design.Removable Contacts:Insert contact in rear face of insula-Size 12, 16, 20tor;release from front face of insula-tor.Female...

Open the catalog to page 3

TECHNICAL INFO Positronic Industriesconnectpositronic.com

Open the catalog to page 4

CRIMP CONNECTORS

Open the catalog to page 7

MATING OPTIONS CONTACT SIZE FIRST MATE STANDARD LAST MATE Size 12 11.68 [0.460] 10.92 [0.430] 9.90 [0.390] Size 16 12.19 [0.480] 8.38 [0.330] 7.36 [0.290] Size 20 11.93 [0.470] 8.12 [0.320] 6.85 [0.270] DIMENSIONS ARE IN MILLIMETERS [INCHES].ALL DIMENSIONS ARE SUBJECT TO CHANGE. >

Open the catalog to page 9

DIMENSIONS ARE IN MILLIMETERS [INCHES]. ALL DIMENSIONS ARE SUBJECT TO CHANGE. >

Open the catalog to page 10

DIMENSIONS ARE IN MILLIMETERS [INCHES].ALL DIMENSIONS ARE SUBJECT TO CHANGE. >

Open the catalog to page 11

PART NUMBER "T" Thread PART NUMBER "T" Thread SFET10S 1/4-20 UNC 2A SFIT10S 1/4-20 UNC 2A SFET10M M6 X 1 SFIT10M M6 X 1 > CONTACTS PART NUMBER "T" Thread SFSIT10S 1/4-20 UNC 2A SFSIT10M M6 X 1 > DIMENSIONS ARE IN MILLIMETERS [INCHES]. ALL DIMENSIONS ARE SUBJECT TO CHANGE. >

Open the catalog to page 12

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:16.00pt "Arial", sans-serif; } .font6 { font:18.00pt "Arial", sans-serif; } .font7 { font:20.00pt "Arial", sans-serif; } .font8 { font:10.00pt "Sylfaen", serif; } .font9 { font:14.00pt "Times New Roman", serif; } sumo contact crimping information Positronic Industries connectpositronic.com CRIMPING INFORMATION...

Open the catalog to page 13

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:16.00pt "Arial", sans-serif; } .font5 { font:14.00pt "Times New Roman", serif; } contact crimping information sumo Positronic Industries connectpositronic.com CRIMPING INFORMATION FOR SUMO SERIES CRIMP CONTACTS Step 3: Inspect crimp. For All Tools: - Strands to be visible through the inspection hole. - Strands not to be visible beyond the insulation support....

Open the catalog to page 14

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:13.00pt "Arial", sans-serif; } .font6 { font:28.00pt "Arial", sans-serif; } .font7 { font:10.00pt "Sylfaen", serif; } .font8 { font:13.20pt "Times New Roman", serif; } SUMO SUMO ORDERING INFORMATION Positronic Industries connectpositronic.com ORDERING INFORMATION - CODE NUMBERING SYSTEM Specify Complte Connector...

Open the catalog to page 15

Contact Sizes: 0, 8, 12, 16, 20 and 22 Contact Sizes: 8, 20 and 22 Current Ratings: Terminations: Qualifications: Crimp, wire sol-der, straight solder, right angle solder and straight press-fit MIL-DTL-24308,Goddard Space Flight 311P, MIL-C-39029, IP65, IP67 To 40 amperesnominal Current Ratings: To 150 amperes Configurations: Multiple variants in both standard and high densities Terminations: Crimp, wire solder, straight solder, right angle solder, straight press-fit and rightangle press-fit Configurations: Compliance: PICMG 2.11,PICMG 3.0, VITA 41 Multiple variantsin a variety of package sizes...

Open the catalog to page 16

UNITED STATES, Springfield, Missouri, Corporate Headquarters > Factory Sales and Engineering Offices(800) 641-4054 PUERTO RICO, Ponce Factory > Factory Sales and Engineering Offices(800) 641-4054 MEXICO > Factory Sales and Engineering Offices(800) 872-7674 CANADA > Factory Sales and Engineering Offices(800) 327-8272 SINGAPORE, Asia/Pacific Headquarters > Factory Sales and Engineering Offices (65) 6842-1419 ASIA, Direct Sales Offices > Taiwan Sales Office (88) 62-2937-8775China Sales Office(86) 755-2643-7578Korea Sales Office(82) 31-909-8047/8 JAPAN > Sales and Engineering Offices(81) 3-5812-7720...
