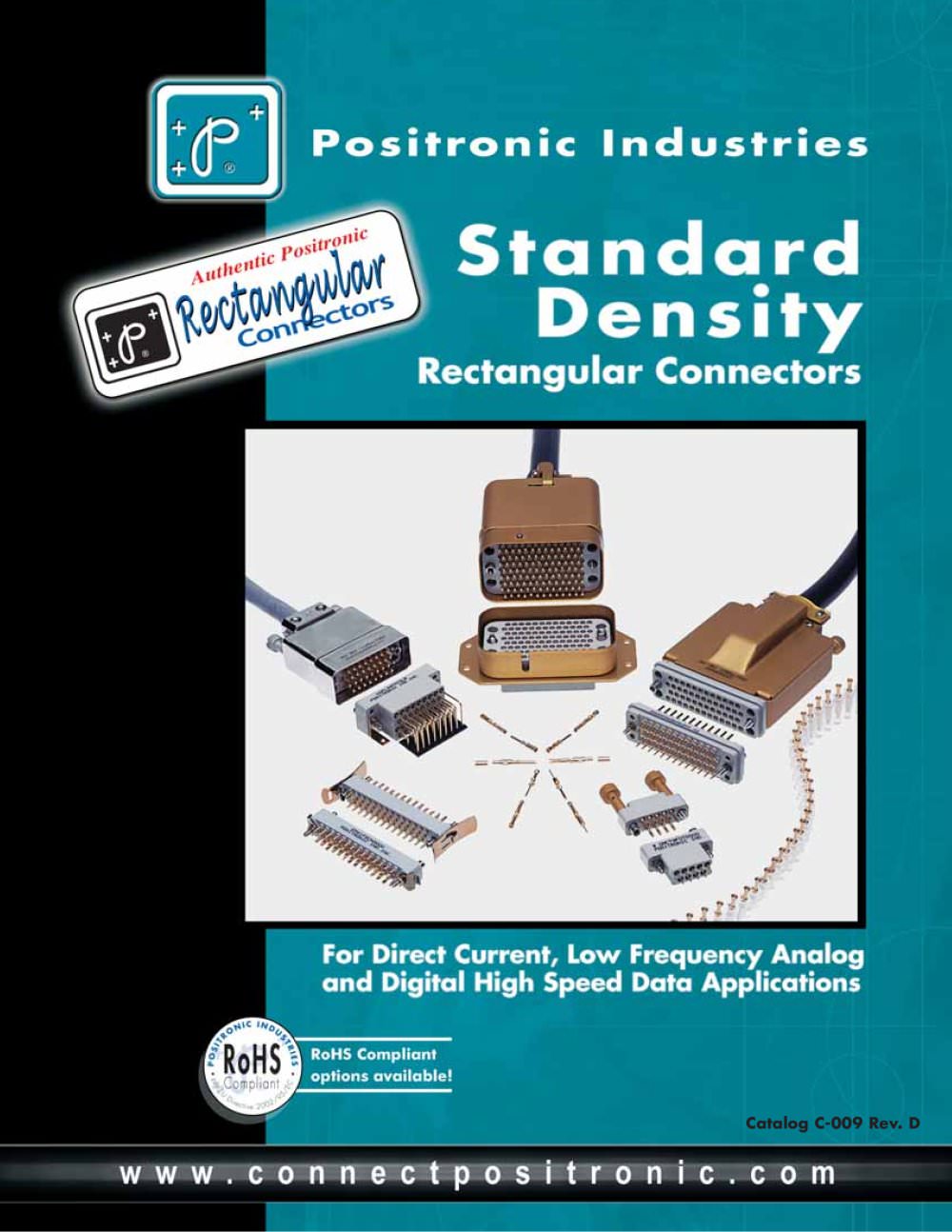

Standard Density Rectangular Catalog

Standard Density Rectangular Catalog

Product catalog summary

Overview: Positronic Industries, founded in 1966, specializes in high-quality interconnect products, emphasizing a service-oriented approach and rapid customer response. Their Complete Capability concept includes design, tooling, machining, molding, plating, and quality assurance.

Dimensional Tolerances: The catalog outlines tolerances for connector components: male contact mating diameters (±0.001 inches), contact termination diameters (±0.003 inches), other diameters (±0.005 inches), and other dimensions (±0.015 inches).

Patents: Products are protected by US and Canadian patents, with additional patents pending.

Complete Capability: Positronic offers comprehensive services, including connector design and development, tooling support, machining, molding, and plating, adhering to military specifications and ISO certifications.

Product Lines: The catalog details various connector series, such as GMCT, GAP, GAPL, VMCT, VAPL, and GM Series, each with specific features and compliance with MIL-DTL-28748 specifications.

Technical Characteristics: Specifications include contact sizes, amperage ratings, termination styles, and mechanical characteristics like contact retention and termination options.

Accessories: A range of accessories, including mounting brackets and cable adapters, enhance connector functionality.

Compliance: Products comply with international standards like IEC 807-7, are RoHS compliant, ITAR registered, and have a Federal Supply Code.

Ordering Information: Detailed ordering information is provided, including part numbers and configuration options.

Mechanical Specifications: Features include locking systems, polarization, and mechanical operations rated for 1000 cycles per IEC 512-5.

Electrical Characteristics: Specifications include contact current ratings, initial contact resistance, flashover voltage, test voltage, insulation resistance, and working temperature and voltage.

Standards and Compliance: Connectors meet MIL-DTL-28748 and SAE AS 39029 standards, are U.L. recognized, and RoHS compliant.

Connector Components: Components include contacts, insulators, polarizing guides, jackscrews, and hoods, designed for reliability and secure coupling.

Design Features: Features include a large surface area contact mating system, closed entry design, and precision machined contacts.

Temperature and Current Derating: Temperature rise curves illustrate the current-temperature relationship for specific configurations.

Crimp Contacts: Specifications cover contact sizes, materials, plating options, and crimping procedures, emphasizing quality control and inspection.

Crimp Tools: Details on crimp tools, part numbers, and usage for different wire sizes and contact types are provided.

Connector Specifications: Heavy-duty rectangular connectors with removable contacts are detailed, including dimensions and ordering assistance.

Military and International Standards: Compliance with MIL-DTL-28748, IEC 807-1, and U.L. recognition ensures reliability and safety.

Materials and Finishes: Insulators are made from glass-filled DAP, with copper alloy contacts and various finishes available.

Mechanical and Electrical Characteristics: Specifications include contact retention, locking systems, current ratings, and insulation resistance.

Grounding Plates: Technical characteristics include materials, mechanical and electrical specifications, and ordering information for aircraft applications.

Connector Part Number Explanation: Part numbers are structured to specify various connector features and compliance options.

Qualified Products Listing: Positronic offers connectors qualified under military specifications.

D-subminiature and Rectangular Connectors: Specifications include contact sizes, current ratings, terminations, and qualifications, with features like EMI/RFI shielding and environmental sealing.

Circular Connectors and Cable Assemblies: Features include shielding, environmental sealing, and suitability for high vacuum applications.

Global Presence: Positronic has offices worldwide, providing extensive support and distribution capabilities.

Catalog excerpts

Design & Development Designs new connectors and modifies existing connectors to meet industry requirementsՕ Continuously conducts marketing studies to identify industry needs for new products Ongoing interest in unique connector designs Tooling Օ Tooling support for all manufacturing areas within company Provides 80% of new tooling, punch press dies, molds, jigs and fixtures used at Positronic factory locations worldwide > Machining Molding Finished Stock Inventory Machining Օ Automatic screw machines produce finely crafted contacts and hardware for connector bodies Trained technicians operate...

Open the catalog to page 2

Heavy duty, rectangular connectors with removablecontacts.Multipurpose connectors offering power, signal and shielded contacts.Thirteen connector variants, 9 through 104 poles, qualified to MIL-DTL-28748. > Size 16 contacts, 13 ampere nominal rated, and size 20 contacts, 7.5 ampere nominal rated, qualified to SAE AS 39029.Terminations are crimp 14 AWG [2.5mm > 2 ] through 32 AWG [0.03mm > 2 ], solder cup,wrap post, printed board, press-fit and shielded. > Heavy duty, rectangular, printed board connectors with straight solder, size 16 contacts, 7.5 ampere nominal rated.Eight connector variants,...

Open the catalog to page 3

GMCT SERIES Positronic Industries .connectpositronic.com > Locking Systems: Friction, vibration locks and jackscrews. Qualified to MIL-DTL-28748/3 and MIL-DTL-28748/4.Contacts qualified to SAE AS 39029/34 and SAE AS 39029/35. Polarization: Polarized guides, polarized shells andjackscrew system. Mechanical Operations: 1000 operations per IEC 512-5. > File No.E49351. Jackscrews: Standard threads, 6-32 UNC on allsizes, except 60 and 104 connector variant, which uses 8-32 UNC.Metric threads, M3X0.5 available. > Initial ContactResistance: Size 16:0.062 inch[1.57 mm] diameter.- 13 amps maximum. Size...

Open the catalog to page 6

GMCT SERIES Male Shell Female Shell MaleConnector0.772 [19.61]0.732 [18.59]0.850 [21.59]0.790 [20.07]PFemaleConnector INSULATORS PROTECTIVE SHELLS P:0.276 [7.01] MINIMUM PENETRATION OF MALE CONTACTIN CLOSED ENTRYӔDESIGN FEMALE CONTACT TO ENSURE MINIMUM CONTACT RESISTANCE. DIMENSIONS ARE IN INCHES [MILLIMETERS].ALL DIMENSIONS ARE SUBJECT TO CHANGE. DIMENSIONS ARE IN INCHES [MILLIMETERS].ALL DIMENSIONS ARE SUBJECT TO CHANGE. >

Open the catalog to page 7

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:15.00pt "Arial", sans-serif; } HEAVY-DUTY RECTANGULAR CONNECTORS WITH REMOVABLE CONTACTS Standard Density Rectangular Positronic Industries .connectpositronic.com

Open the catalog to page 8

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.75pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:8.10pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:11.00pt "Arial", sans-serif; } .font7 { font:12.00pt "Arial", sans-serif; } .font8 { font:13.00pt "Arial", sans-serif; } .font9 { font:15.00pt "Arial", sans-serif; } .font10 { font:15.00pt "Georgia", serif; } .font11 { font:15.00pt "Impact", sans-serif;...

Open the catalog to page 9

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Arial", sans-serif; } .font5 { font:12.00pt "Arial", sans-serif; } .font6 { font:13.00pt "Arial", sans-serif; } .font7 { font:15.00pt "Arial", sans-serif; } .font8 { font:21.00pt "Arial", sans-serif; } .font9 { font:15.00pt "Georgia", serif; } .font10 { font:25.00pt "Georgia", serif; } .font11 { font:15.00pt "Impact", sans-serif;...

Open the catalog to page 10

GMCT SERIES MATERIAL:GLASS FILLED DIALLYL PHTHALATE PER ASTM-D-5948 TYPE SDG-F AABBDC >

Open the catalog to page 11

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:11.00pt "Arial", sans-serif; } .font6 { font:12.00pt "Arial", sans-serif; } .font7 { font:13.00pt "Arial", sans-serif; } .font8 { font:15.00pt "Arial", sans-serif; } .font9 { font:21.00pt "Arial", sans-serif; } .font10 { font:4.00pt "Franklin Gothic Medium", sans-serif; } .font11 { font:4.00pt...

Open the catalog to page 12

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:11.00pt "Arial", sans-serif; } .font6 { font:12.00pt "Arial", sans-serif; } .font7 { font:13.00pt "Arial", sans-serif; } .font8 { font:15.00pt "Arial", sans-serif; } .font9 { font:21.00pt "Arial", sans-serif; } .font10 { font:9.00pt "Georgia", serif; } .font11 { font:15.00pt "Georgia", serif;...

Open the catalog to page 13

TotalWood_english.fh10 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } .font3 { font:18.00pt "Arial", sans-serif; } .font4 { font:11.00pt "Franklin Gothic Medium", sans-serif; } heavy-duty rectangular connectors with removable contacts Standard Density Rectangular CD O Positronic Industries .connectpositronic.com m m "large surface area contact mating system" high reliability "closed entry" design PRECISION MACHINED, SOLID COPPER ALLOY SRIP FEMALE...

Open the catalog to page 14
